Aquamonix (Tyco) I500 electromagnetic flowmeter

Connect a Wildeye to an Aquamonix I500 flow meter to transfer flow and meter data directly to the web.

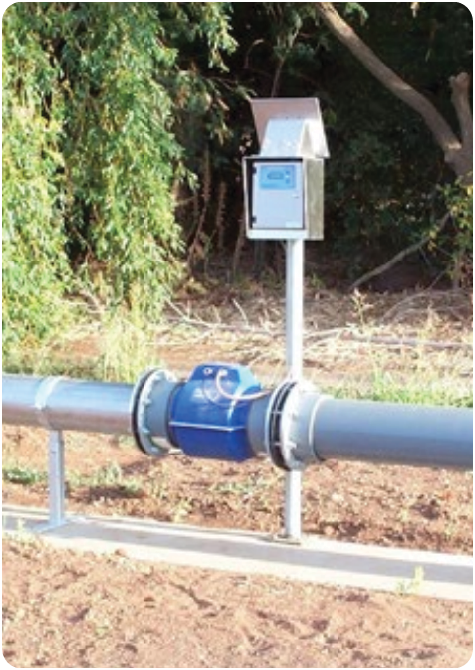

Tyco i500 corners.png

To connect up to an I500, use an ACC-EXP-I500 expander module, which communicates with the I500 interface card via RS232

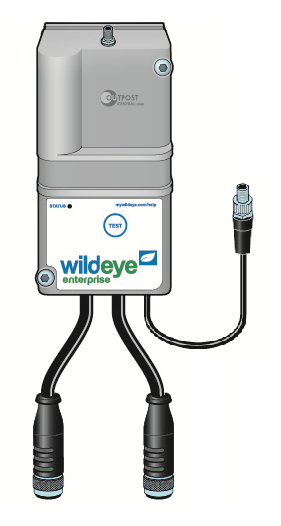

Wildeye

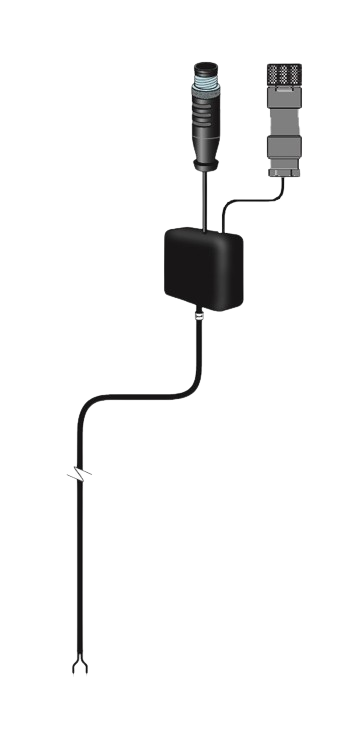

Expander module

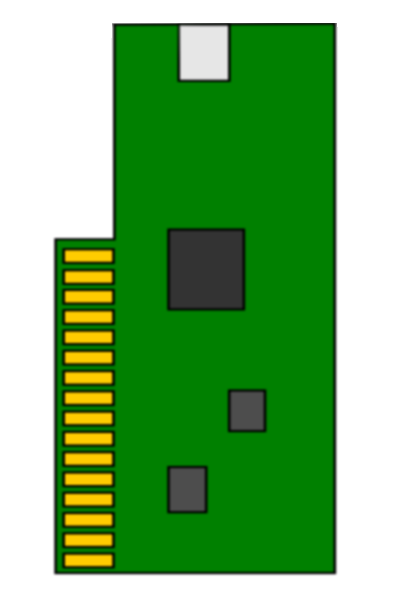

I500 interface card

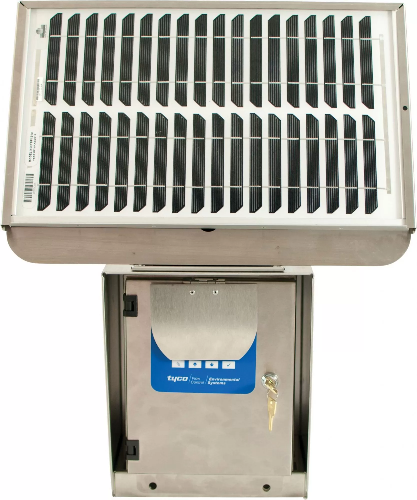

I500 Flow Meter




WILD-M-R-NACS-NACS

+

ACC-EXP-I500

+

Aquamonix PN: 625056

+

Aquamonix PN:  I500 or I500-M

Any logger with an SID12 channel will do

Wire the Expander flying leads to the Interface Card following below wiring guide

Notes:

I500 modem interface card with low power RS232/RS485/RS422 port with Modbus.

Only required if the card not already installed inside the I500

Jumper needs to be present for RS232

Notes:

Requires Aquamonix modem interface card (with low power RS232/RS485/RS422 port with Modbus). Order as I500-M or separately the option card 625056

The I500 standard modem card should be configured to RS232 via a jumper located on the PCA. The jumper needs to be present for RS232 two wire connections (removed for RS485). The I500 transmitter itself will then need to be configured as either RS232 in the configuration menu.

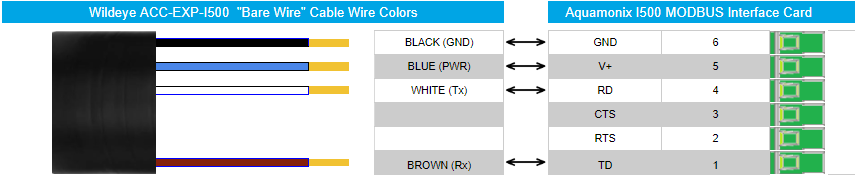

Attach the the bare wires that exit the the ACC-EXP-I500 directly to the I500 Interface Card as follows:


Default MODBUS Input Settings

The Wildeye is configured by default to log the following parameters for the Aquamonix I500. In addition, the Wildeye automatically extracts a range of parameters from the raw MODBUS register values for ease of use.

Default MODBUS Inputs

Battery Level

logs every 15 minute(s)

Cumulative Total (O/PEAK)

logs every 15 minute(s)

Cumulative Total (PEAK)

logs every 15 minute(s)

Current Flow_Parent

logs every 15 minute(s)

F Factor

logs every 15 minute(s)

Z Factor

logs every 15 minute(s)

Firmware

logs every 15 minute(s)

Flow Rate ML/d

logs every 15 minute(s)

Logic status of Alarms

logs every 15 minute(s)

Logic status of Self Test function

logs every 15 minute(s)

Logic Status of System Faults

logs every 15 minute(s)

Meter ID

logs every 15 minute(s)

On Time

logs every 15 minute(s)

Off Time

logs every 15 minute(s)

Peak Total

logs every 15 minute(s)

Pipe Size

logs every 15 minute(s)

Number of Days Since Reset

logs every 15 minute(s)

Number of Hours Since Reset

logs every 15 minute(s)

Number of Resets

logs every 15 minute(s)

Low-flow Cut-off (mm/s)

logs every 15 minute(s)

Zero-flow Off-time (s)

logs every 15 minute(s)

Default Calculated Values

A/D Converter check

Automatically calculated every logging interval

Coil Current check

Automatically calculated every logging interval

Coil Inductance High

Automatically calculated every logging interval

Coil Inductance Low

Automatically calculated every logging interval

Coil Resistance High

Automatically calculated every logging interval

Coil Resistance Low

Automatically calculated every logging interval

Configuration Data check

Automatically calculated every logging interval

Current Flow ML/d

Automatically calculated every logging interval

Electrode Check Fault

Automatically calculated every logging interval

Forward Flow

Automatically calculated every logging interval

High (internal) temperature

Automatically calculated every logging interval

High Flow

Automatically calculated every logging interval

Low Battery

Automatically calculated every logging interval

Low Battery alarm

Automatically calculated every logging interval

Low Flow

Automatically calculated every logging interval

Pipe Not Full alarm

Automatically calculated every logging interval

Power Supply check

Automatically calculated every logging interval

Real Time Clock check

Automatically calculated every logging interval

Reverse Flow

Automatically calculated every logging interval

SD Card check

Automatically calculated every logging interval

Season

Automatically calculated every logging interval

Serial Number check

Automatically calculated every logging interval

Settling Time Fault

Automatically calculated every logging interval

Signal Noise Fault

Automatically calculated every logging interval

Signal Range Fault

Automatically calculated every logging interval

Solar current fault

Automatically calculated every logging interval

System Fault

Automatically calculated every logging interval

Total (ML)

Automatically calculated every logging interval

Total Off Peak (ML)

Automatically calculated every logging interval

Total Peak (ML)

Automatically calculated every logging interval
