Assembly of Watermark Soil Tension components

Pre Installation:

Watermark sensors need to be conditioned by soaking for 24 hours prior to installation.
(always install a wet sensor)

Assembly and Installation

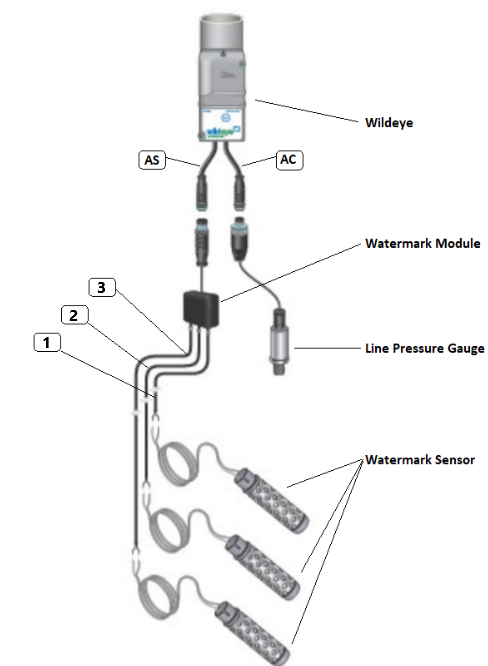

Follow the diagram below for assembling your package of up to 3 channels of Watermark Sensors and an optional Line Pressure Gauge.

• Attach the 3-Channel Watermark Module (ACC-EXP-3LW) to the Wildeye "NACS" plug

• Attach the Line Pressure Gauge to the other Wildeye "NACS" plug (or through a splitter)

• Attach up to 3 Watermark Sensors to each of the wire pairs labelled "1", "2" and "3" on the Watermark Module

• For Watermark Sensors arranged at different depths, use channel "1" for the most shallow sensor, channel "2" for the next deepest and channel "3" for the deepest.

• Follow these instructions for using the Scotchlok system to attach the Watermark sensors to the Watermark module How to Use Scotchloks
