Euromag MC608

Compatibility notice:

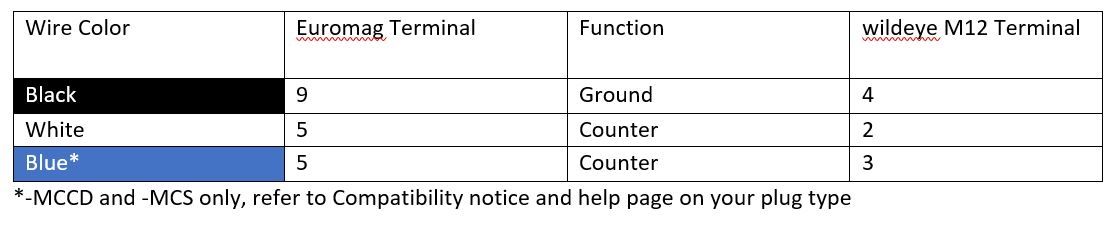

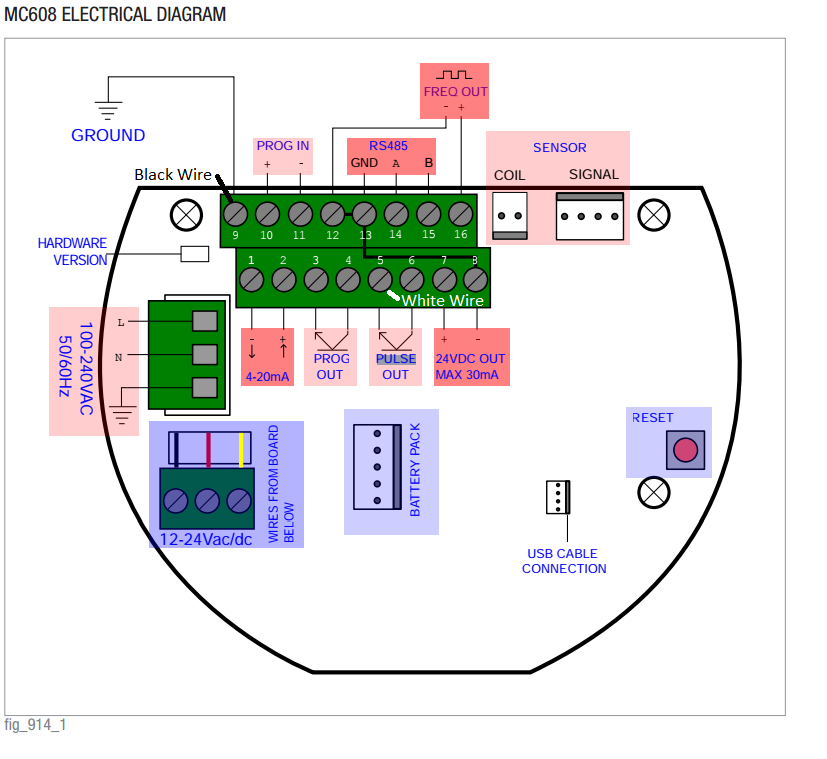

The image below is intended specifically for wildeyes containing -MAC.  wildeyes containing -MCCD in the part code will also be compatible.  In addition, such wildeyes have two counter channels on one lead.  You can use the white wire (as shown) and/or the blue wire for the counter (terminal 5 on MC608) and the blick wire on terminal 9 (as shown).  For wildeye containing -MCS, use only the blue wire on terminal 5 as the black wire on terminal 9 (as shown).  wildeyes containing -NACS5 or NCSV are not typically used for flow monitoring but can attach to the MC608 using a ACC-CAB-M12-M-5 cable from wildeye using the Gray wire on terminal 5 and the black wire on terminal 9 (as shown).
