Endress+Hauser Proline Promag W 400 Support

Wildeye is a standard industrial telemetry device for collecting remote meter & sensor data for any device within cellular coverage.

Connect a Wildeye to an Endress+Hauser Proline Promag W 400 flow meter to transfer flow and meter data directly to the web.

The following interface options for connecting to the Proline Promag W 400 are documented here:

Interface Option

Wildeye Model Options

Pulse Count

WILD-M-B-NACS

WILD-M-R-NACS-NACS


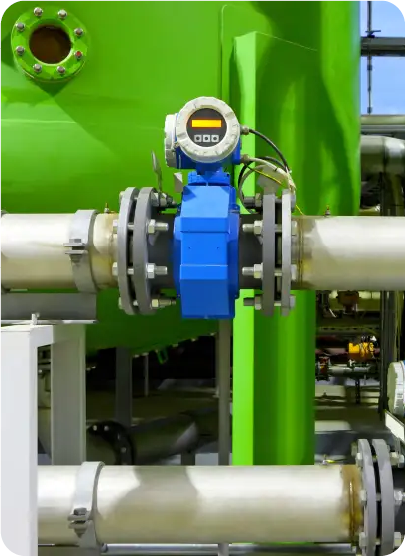

Endress+Hauser Proline Promag

Wildeye Pulse Count Connection (Recommended)

Use a standard Wildeye WILD-M-R-NACS-NACS (Wildeye with solar option) or WILD-M-B-NACS (Wildeye with battery option) to connect to an Endress+Hauser Proline Promag W 400 using the pulse count interface

For detailed wiring refer to wiring diagrams below.

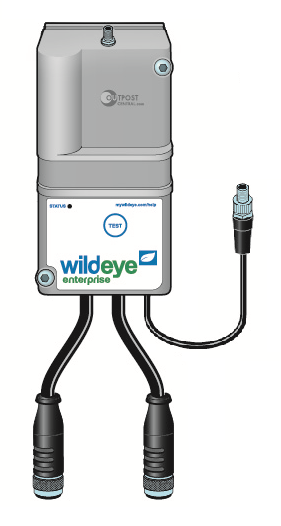

Wildeye

Optional Extension

Wildeye Adapter

Meter Addon

Flow Meter




WILD-M-R-NACS-NACS

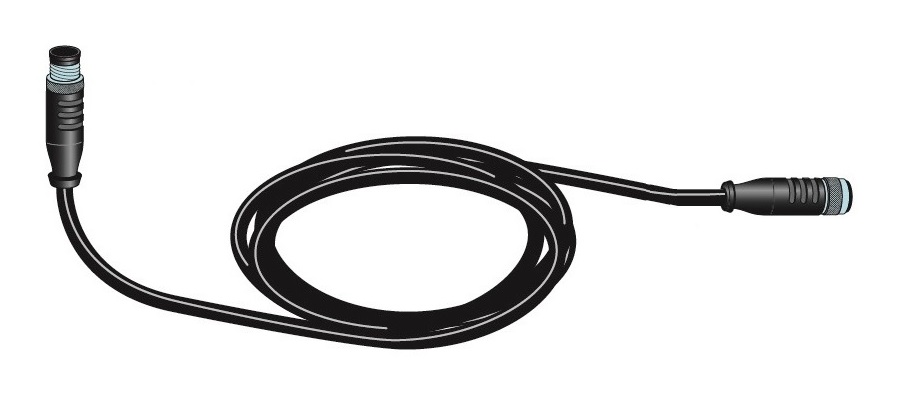

ACC-CAB-M12-EXT-5P-2M

ACC-CAB-M12-M-5

Not Required

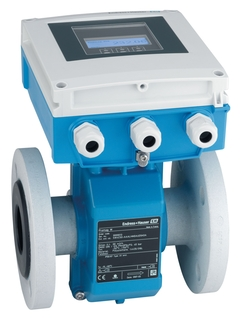

Endress+Hauser Proline Promag W 400

Notes:

Use WILD-M-B-NACS for long-life battery or WILD-M-R-NACS-NACS for solar.

Notes:

Choose optional extension cables from 2m to 30m length

Notes:

Wire the Wildeye flying leads to the Endress+Hauser ports following below wiring guide

Notes:

Proline Promag W 400 with order code options "H" and "I" provides pulse outputs.

Notes:

Proline Promag W 400 with order code options "H" and "I" provides pulse outputs.

Wildeye Pulse Counter Wiring Details

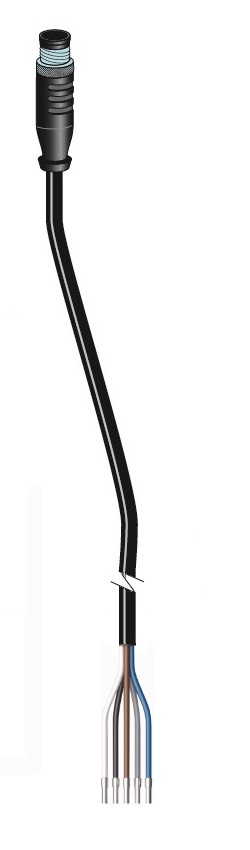

Attach the ACC-CAB-M12-M-5 adapter to the NACS cable of the WILD-M-B-NACS or WILD-M-R-NACS-NACS model.

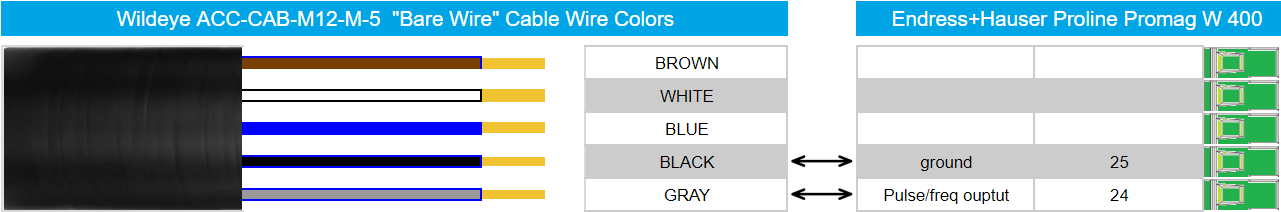

The adapter bare wires connect to the Endress+Hauser Proline Promag W 400 as follows:
