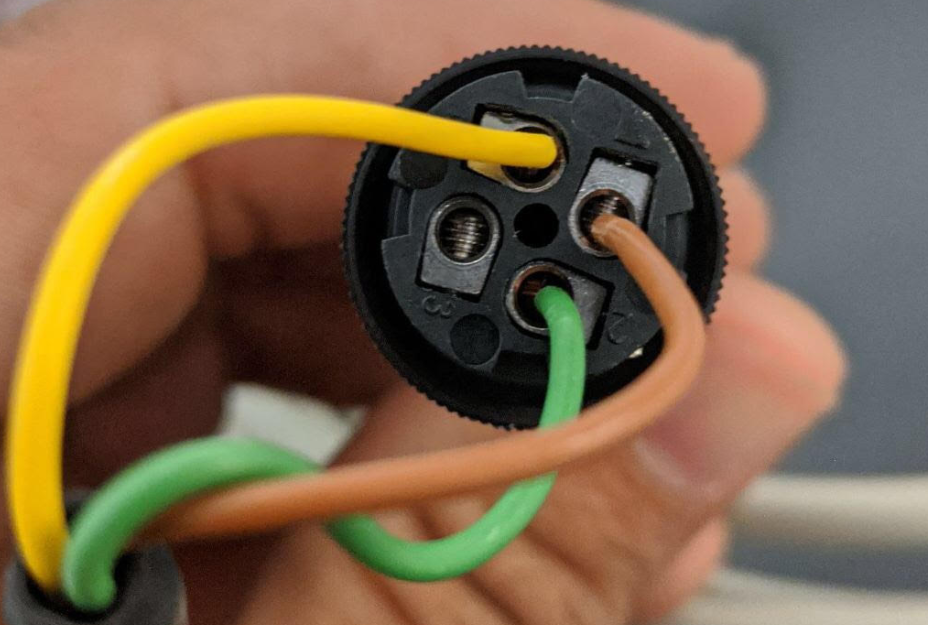

All SDI-12 capable wildeye loggers will have the following wiring. Use the illustration to match the pinout.
|
|
Pin 1 |
Pin 2 |
Pin 3 |
Pin 4 |
|
Wildeye |
12 V power |
SDI 12 |
Not used |
Ground |
|
Hydrawize |
Brown |
Green |
Not used |
Yellow |
