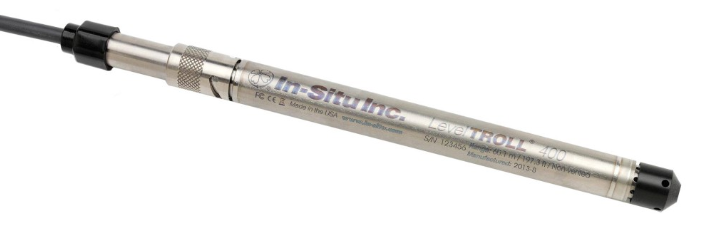

In-Situ Level/Aqua TROLL

Level trolls have 1 data reading. Aqua Trolls have more than 1 data reading.

Level Sensor Summary

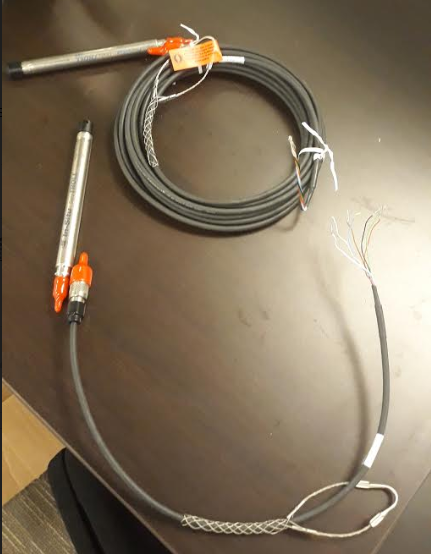

Photographs

Site Assessment

Reservoir, Pond and Weir Flow Sites

• Is there a reference water level measurement

• Will the wildeye location experience flooding? If so, do not use vented sensor

Sensor Interface Connections

Connection Types & Physical Output Port

The Level TROLL may be connected to a controller or logger for
communication via:

• Analog (4-20 mA)

• SDI-12

• RS485 Modbus

• RS232 Modbus (with a customer-supplied converter)

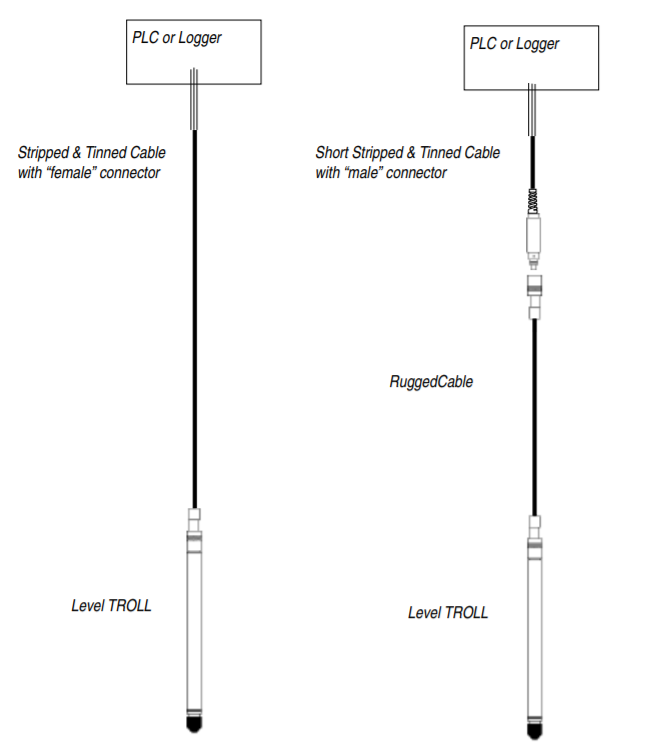

RuggedCable® stripped & tinned cables have a “female” Twist-Lock
connector on one end to mate with the Level TROLL body. The uphole
end terminates in bare wires for connection to a PLC or data logger.
Also available in a shorter length ending in a “male” Twist-Lock connector
to mate with RuggedCable systems.=

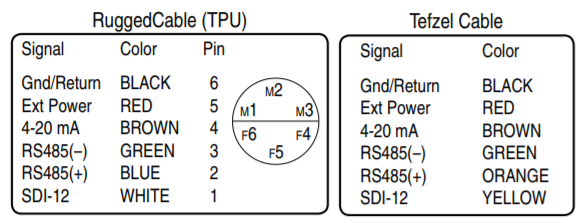

Electrical Connections

When using SDI12 - make sure the 2 MODBUS wires are connected to ground!!

Otherwise, a stray signal on the modbus interface will shutdownt the SDI12 comms, and activate the MODBUS comms

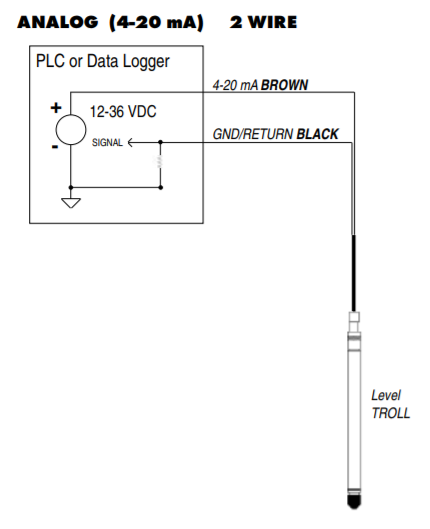

4-20mA Interface (2-wire)

Interface Details

• 4-20mA - Stabilization Time: 250ms

• SDI12 - Not assessed

• RS485 - Not assessed

Pulse Cable Options

There are <> options to connect the <> to the Wildeye:

a)

b)

Example Wildeye Plug types with "C" Channels:

MAC Plug

MCCD Plug  (C1 Channel)

Wildeye <> Cable

For

Refer to Wildeye plug types with "C" channels above.

<> Pulse Output Cable

Use OEM Parts for Pulse Connection

Series

Interface Output Programming

• 4-20mA

Not required. Obtain sensor default range from supplied calibration certificate.

• SDI12

Yes - requires Windows software and appropriate interface module

• RS485

Yes - requires Windows software and appropriate interface module

SDI-12-Commands-and-Aqua-TROLL-100-200-Responses.pdf
