Netafim M Series Meters
Flow Meter Summary
Manufacturer | Netafim |

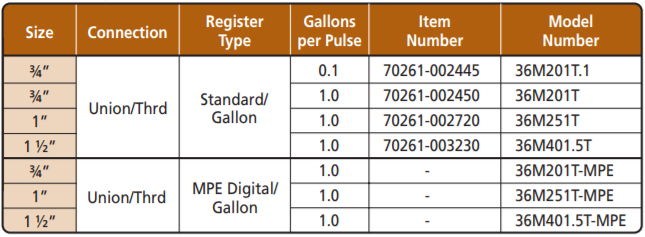

Models |  |
Type | Multi-jet (mechanical) meter |
Pulse Interface |
|
Programming | N/A |
Battery Life Claimed | N/A |
Support Contact | Dan Rodriguez |
Straight Pipe Requirement | 0 x D and 0 x D
|
Pipe Sizes Supported | ¾”, 1” and 1 ½” |
Technical Manual | attached |
Site Assessment
Dial face must be horizontal.
There are no straight pipe installation requirements.
Prior to installation of the meter, the pipeline should be thoroughly flushed.
Meter must be installed so that the pipe will be full of water at all times during metering.
Recommendation: Continuous Acting Air Vents of proper size and type be installed to eliminate air.
Pulse Output Connections:
Meter Pulse Output Port

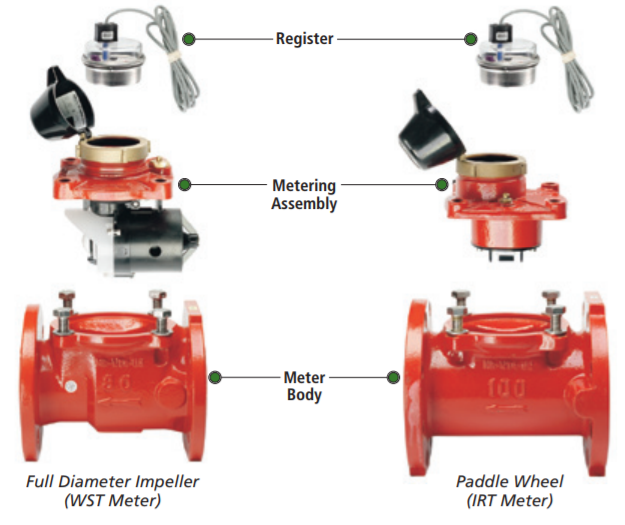

A Netafim IRT Series meter has 3 different register types:
Standard Register (pulse output capable)
Photo Diode Register (voltage output)
Multi-Purpose Electronic (MPE) Register
The same register fits into all the Netafim mechanial meter types (M Series, WMR Series, WST/WT Series, IRT Series)
Function | Wildeye wire color | Netafim IRT |
Ground | Black | Black |
Counter 1 | White | Red |
Electrical Connections
Standard Register (pulse output capable)
A "Pulse Reed Switch" module must be installed onto the register to get pulse output.
Standard Register (pulse output capable)
A "Pulse Reed Switch" module must be installed onto the register to get pulse output.
Photo Diode Register (voltage output)
Not assessed
Multi-Purpose Electronic (MPE) Register
Not assessed
Pulse Interface Details
Standard Register (pulse output capable)
Pulse Output Type: Reed Switch
Pulse Width: N/A

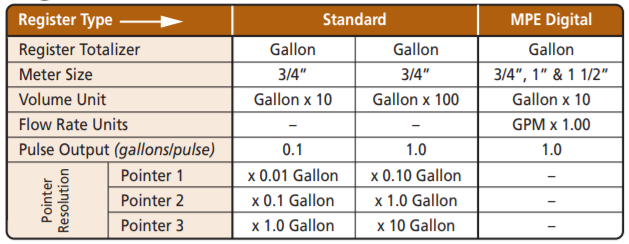

Pulse Weights:
Photo Diode Register (voltage output)
Not assessed
Multi-Purpose Electronic (MPE) Register
Not assessed
Pulse Cable Options
There are <> options to connect the <> to the Wildeye:
a)
b)
Example Wildeye Plug types with "C" Channels:
MCCD Plug (C1 Channel)
Wildeye <> Cable:
Refer to Wildeye plug types with "C" channels above.
<> Pulse Output Cable
Use OEM Parts for Pulse Connection:
Series
Pulse Output Programming
Not Required -- pulse output rates are fixed according to the register type.
