Netafim WMR Series

Flow Meter Summary

Manufacturer

Netafim

Models

Type

In-line helical axial turbine (mechanical) meter

Pulse Interface

  • Standard Register (pulse output capable)

  • Photo Diode Register (voltage output)

  • Multi-Purpose Electronic (MPE) Register

Programming

 N/A

Battery Life Claimed

 N/A

Support Contact

 Dan Rodriguez

Straight Pipe Requirement

 10 d before and 5 d after

Pipe Sizes Supported

 2”

Technical Manual

attached

Site Assessment

  • Dial face must be horizontal.

  • There are no straight pipe installation requirements.

  • Prior to installation of the meter, the pipeline should be thoroughly flushed.

  • Meter must be installed so that the pipe will be full of water at all times during metering.

  • Recommendation: Continuous Acting Air Vents of proper size and type be installed to eliminate air.



Pulse Output Connections

Meter Pulse Output Port

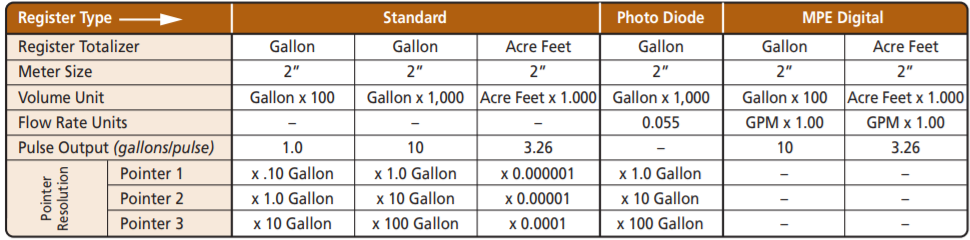

A Netafim IRT Series meter has 3 different register types:

  • Standard Register (pulse output capable)

  • Photo Diode Register (voltage output)

  • Multi-Purpose Electronic (MPE) Register

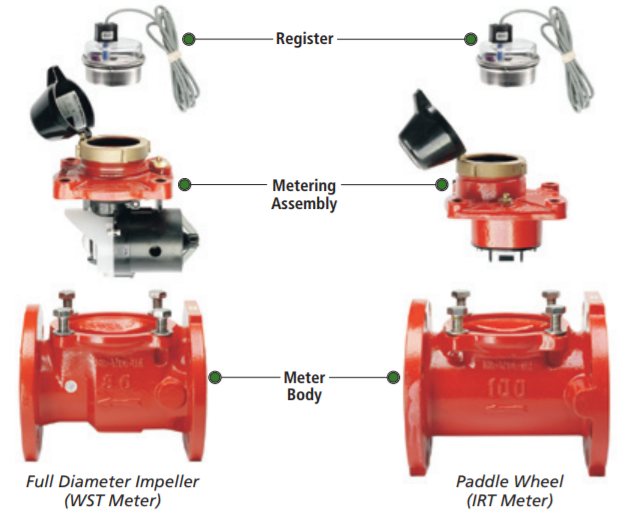

The same register fits into all the Netafim mechanial meter types (M Series, WMR Series, WST/WT Series, IRT Series)


Electrical Connections

  • Standard Register (pulse output capable)

A "Pulse Reed Switch" module must be installed onto the register to get pulse output.

  • Photo Diode Register (voltage output)

Not assessed

  • Multi-Purpose Electronic (MPE) Register

Not assessed

Pulse Interface Details

  • Standard Register (pulse output capable)

Pulse Output Type: Reed Switch

Pulse Width: N/A

Pulse Weights:

  • Photo Diode Register (voltage output)

Not assessed

  • Multi-Purpose Electronic (MPE) Register

Not assessed

Pulse Cable Options

There are <> options to connect the <> to the Wildeye:

a)

b)

Example Wildeye Plug types with "C" Channels:

MAC Plug

MCCD Plug  (C1 Channel)



Wildeye <> Cable

For

Refer to Wildeye plug types with "C" channels above.

<> Pulse Output Cable



Use OEM Parts for Pulse Connection

Series

Pulse Output Programming

Not Required -- pulse output rates are fixed according to the register type.
