Versaline VL3000 Series Level Transmitter

Level Sensor Summary


Manufacturer

Versaline

Models

VL3000 Series

Type

Submersible Pressure Transducer

Interfaces

  • 4-20mA

Programming

N/A

Battery Life Claimed

N/A

Support Contact

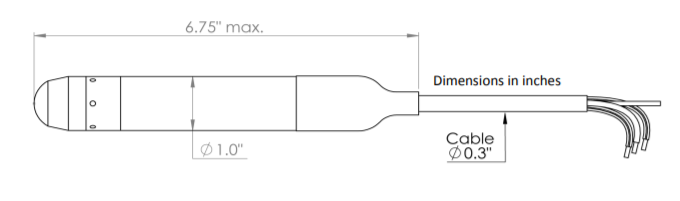

Diameter Options

 1in

Technical Manual

attached

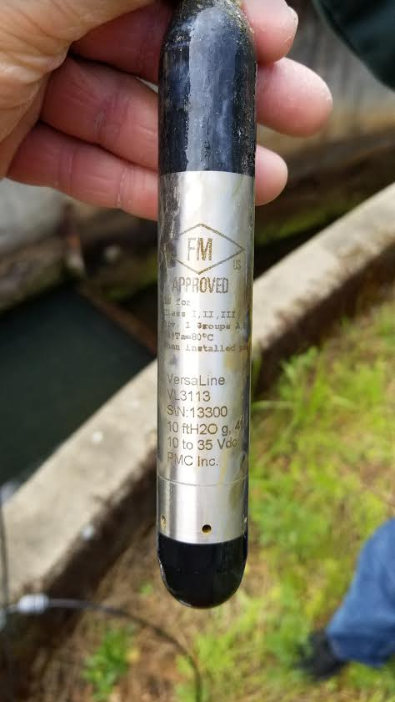

Photographs


Sensor Interface Connections

Connection Types & Physical Output Port

The Versaline may be connected to a controller or logger for
communication via:

  • Analog (4-20 mA)

Standard physical interface is a stripped & tinned cable end.


Electrical Connections


Interface Details

  • 4-20mA

Stabilization Time:  not specified in data sheet.

Interface Programming

  • 4-20mA

Not required. Obtain sensor default range from supplied calibration certificate or markings on the sensor.



VL3000.502.pdf
