Flow Meter Summary
Manufacturer | McCrometer |
Models | Water Specialities |
Type | Mechanical Flow Meter |
Pulse Interface | options to add pulse are TR16, TR12, or FC101-XX |
Programming |
|
Battery Life Claimed |
|
Support Contact | |
Straight Pipe Requirement |
|
Pipe Sizes Supported |
|
Technical Manual |
|
Photos:

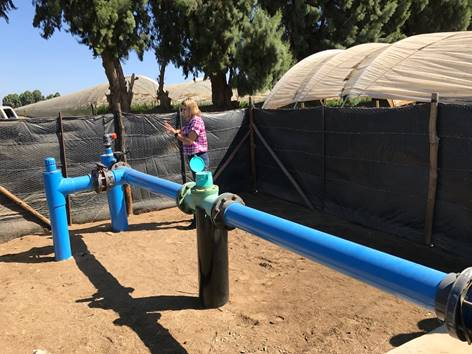

Site Assessment
Note straight pipe requirements
Note full pipe requirements
Pulse Output Connections

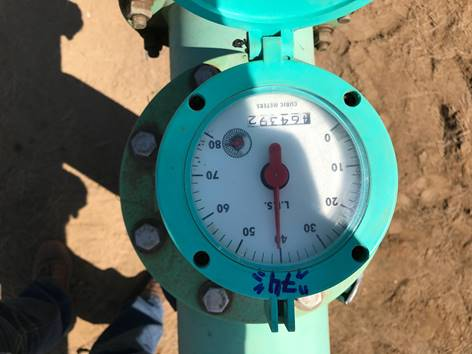

Meter Pulse Output Port
A Water Specialities meter can be upgraded in 3 different ways to have pulse output.
Water Specialities MODEL TR12-2 (See attached)
Water Specialities MODEL TR16 (See attached)
Flowcom Register (See attached)
7-TR16-150-R | $1335 | Easy to install, remove old register and install new register/transmitter combination. Does require 24VDC external power must specify pulse output option. Transmitter will send 150 pulses per minute at the full scale flow. |
7-TR12-2-R | $836 | Easy to install, remove old register and install new register with TR12 transmitter included. Pulse output is 1 pulse per totalizer multiplier. |
FC101-XX-K | $662 | More difficult to install. Meter must be removed from the pipe to convert from mechanical to digital. This includes replacing the prop, removing the miter gear frame assembly and vertical shaft. Will be replacing with a magnetic pickup sensor and digital head. |
Pulse Interface Details
Pulse Output Type:
Pulse Width:
Pulse Cable Options
There are <> options to connect the <> to the Wildeye:
a)
b)
Example Wildeye Plug types with "C" Channels:
MCCD Plug (C1 Channel)
Wildeye <> Cable
For
Refer to Wildeye plug types with "C" channels above.
<> Pulse Output Cable
Use OEM Parts for Pulse Connection
Series
Pulse Output Programming
Tools needed:
-
Steps:
T
The manual
