In-situ Support

Wildeye is a standard industrial telemetry device for collecting remote meter & sensor data for any device within cellular coverage. Connect a Wildeye to the In-situ Level TROLL, Aqua TROLL or Baro TROLL depth sensors to transfer depth and water quality data directly to the web. Note: The Rugged Troll series has different wiring, see here. SDI-12 is the recommended interface to connect up the In-Situ:


Interface Option

Wildeye Model

SDI-12

WILD-M-B-NACS

WILD-M-R-NACS-NACS

Wildeye SDI-12 Connection

Use a standard Wildeye WILD-M-R-NACS-NACS (Wildeye with solar option) or WILD-M-B-NACS (Wildeye with battery option) to connect a In-situ Level/Aqua/Baro TROLL using the SDI-12 interface.

For detailed wiring refer to wiring diagrams below.

Wildeye

Optional Extension

Wildeye Adapter

Sensor Addon

Depth Sensor

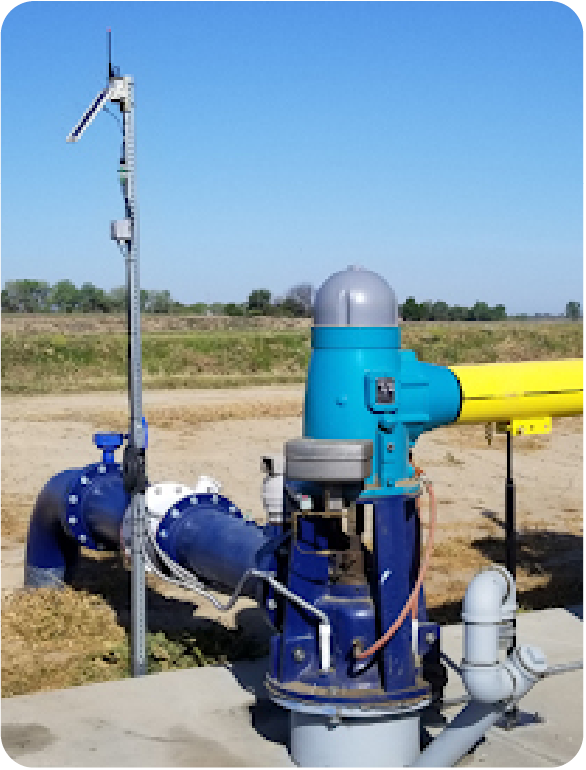

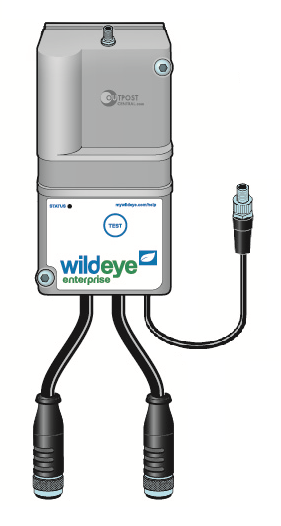

WILD-M-R-NACS-NACS

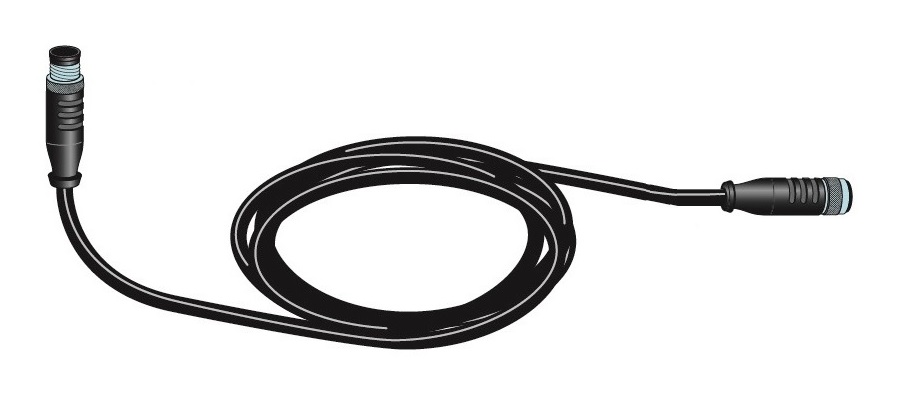

ACC-CAB-M12-EXT-5P-2M

ACC-CON-M12-5POS-M-8

In-situ RuggedCable

In-situ TROLL

Notes:

Use WILD-M-B-NACS for long-life battery or WILD-M-R-NACS-NACS for solar.

Notes:

Choose optional extension cables from 2m to 30m length

Notes:

Wire the Wildeye M12 field connector to the RuggedCable stripped ends per below

Notes:

Part # CFG-SSTC

Cable, Stripped & Tinned with Male Connector

Notes:

The TROLL comes with built-in SDI12

Note : The Insitu Rugged Cable has 5 cores. If the Insitu cable does not have 5 cores, it is the wrong cable type!

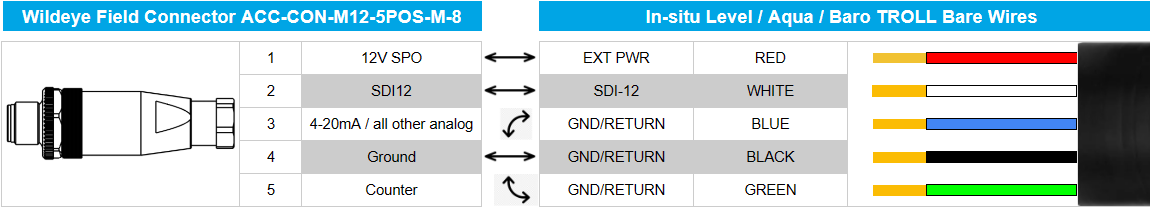

Wildeye SDI-12 Wiring Details

Wire the ACC-CON-M12-5POS-M-8 field connector to the bare wires of the In-situ TROLL as follows:


Then, attach the ACC-CON-M12-5POS-M-8 adapter to the NACS cable of the WILD-M-B-NACS or WILD-M-R-NACS-NACS model.
