Meter Group ATMOS14 - Wiring

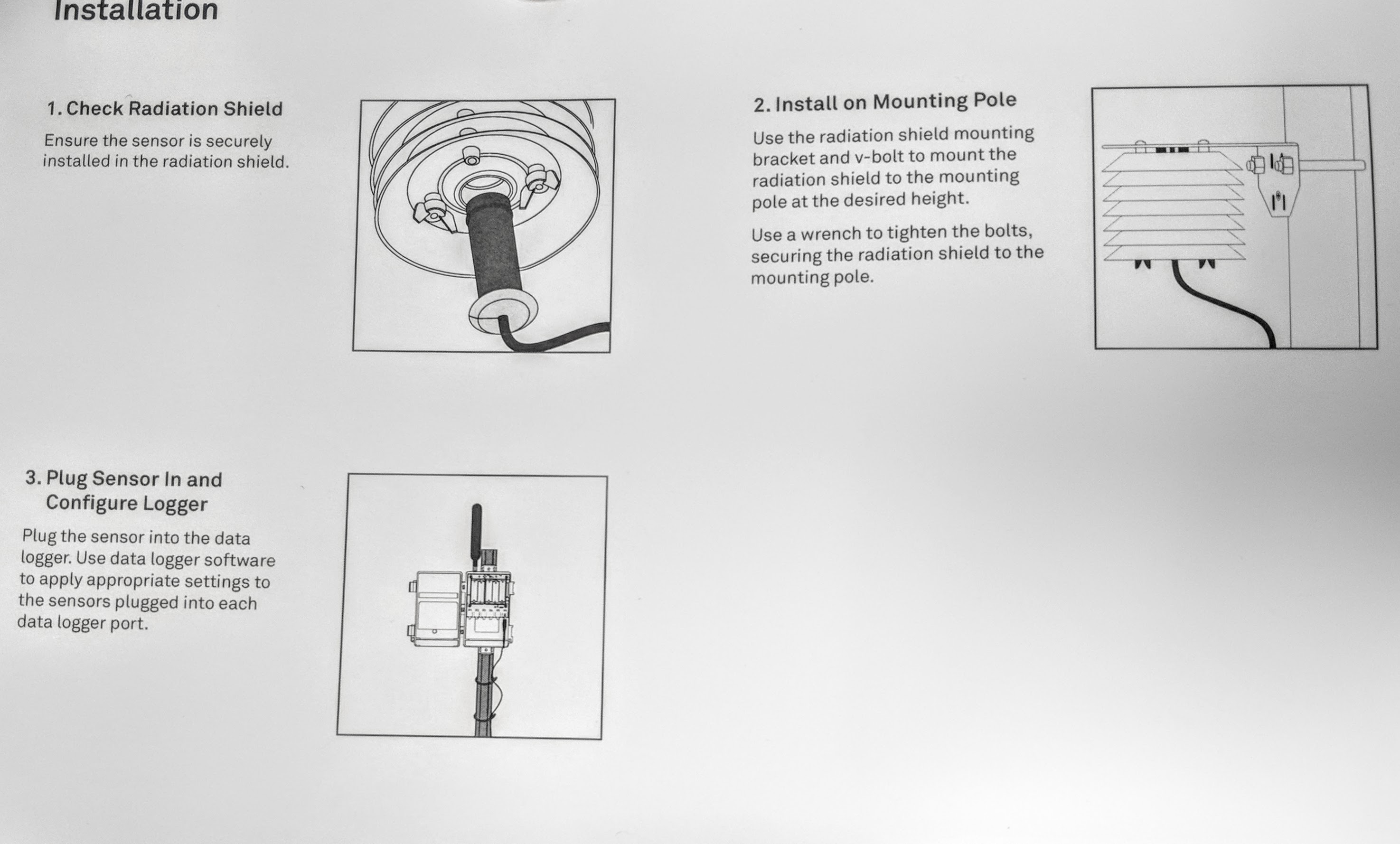

All SDI12 wildeyes will work with this wather station. These are wildeyes that include "S" in the naming.
The new and old wiring for ATMOS 14 is as follows:
New wiring
Wildeye Pin number | Function | Color |
Pin 1 | Power | Brown |
Pin 2 | Data | Orange |
Pin 4 | Ground | Bare |
Old wiring
Wildeye Pin number | Function | Color |
Pin 1 | Power | White |
Pin 2 | Data | Red |
Pin 4 | Ground | Bare |
