Tekbox TBSHT02 Temperature/Humidity Sensor - Wiring/Configuration

Selecting a wildeye

The Tekbox gives SDI12 output, when selecting a wildeye, you'll need any wildeye that has an "S" in the name

Connecting

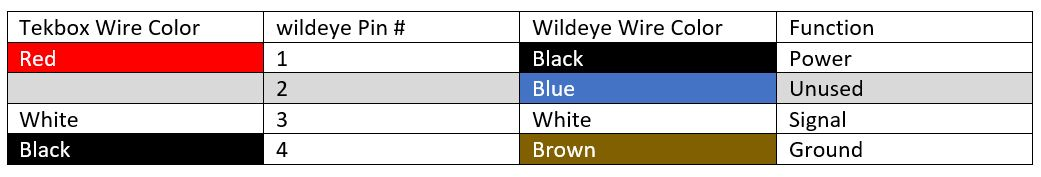

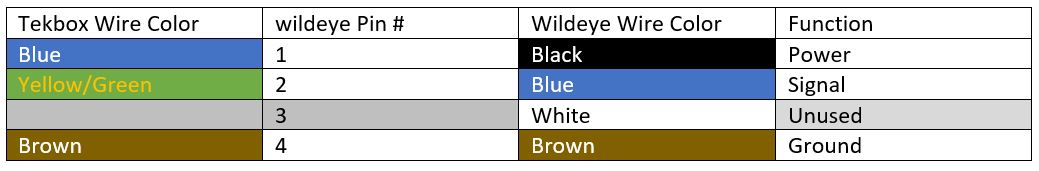

The small tag on the wire reads: RED: VCC, YELLOW:DATA, BROWN:GND

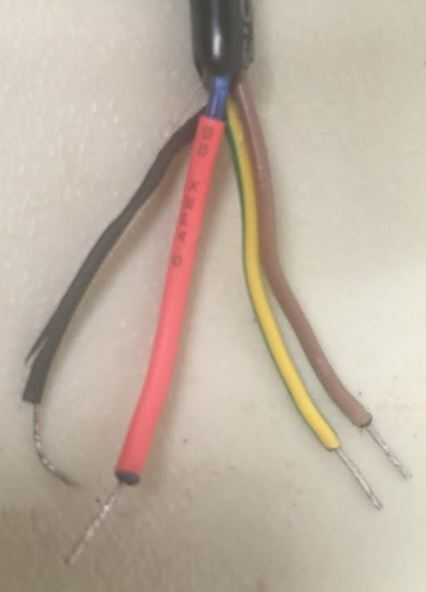

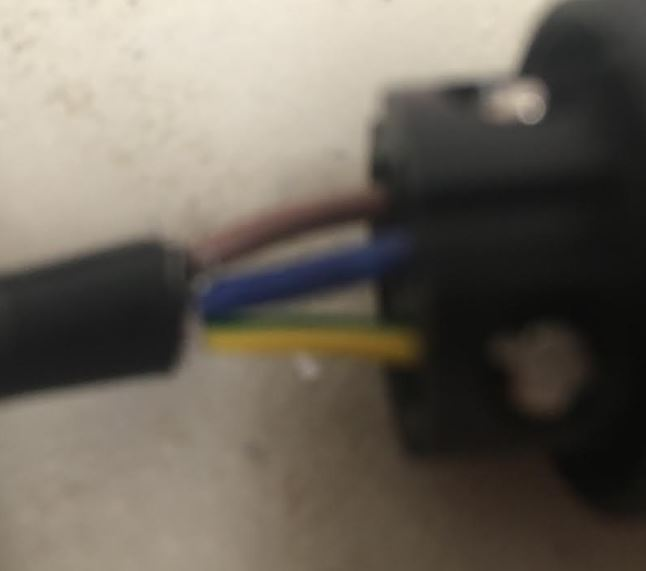

But we recommend trimming the small boot off the end of the wire so that the M12 connector fits snugly.  The Red on the power line is actually a small red insulator over the last couple inches of the wire only.  Therefore, after trimming the boot, the power line is blue.  We have it here both ways.

Without boot (recommended)


With boot (not recommended with M12)


Configuring on the web

  1. Login Wildeye

  2. Click on the sites tab at the top of the screen.

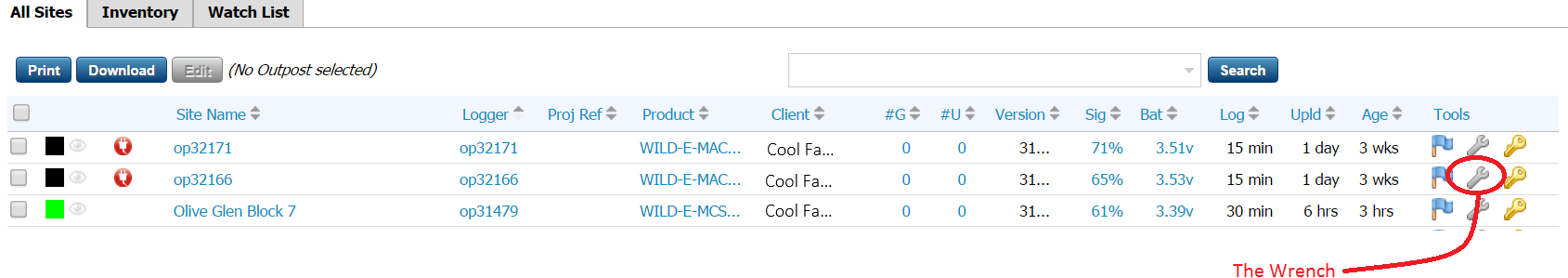

  3. Locate the site that you want to add a pressure transducer to and click on it's wrench icon  on the right hand side of the window.

  4. Locate the button "Add Sensor" Button

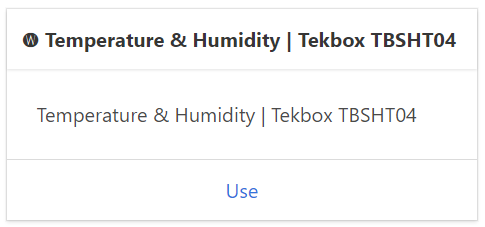

  • Start typing in  "TBSH"

  • Click the "Use" button

  • Set the SDI12 Address and Logging interval
