McCrometer Mc Propeller - Wiring
Tools required:
Protective Eyewear
Installation Materials:
1 x Wildeye Cable (part#ACC-CAB-MCMAG3000 )
1 x EA618-02 from McCrometer

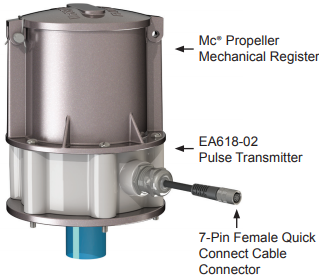

The McCrometer Mc Propeller family of meters do not come with a pulse output as standard - a "Pulse Transmitter" module must be installed, an EA618-02
In order to capture the pulse output the serial number will need to be noted, preferably with a picture.
The EA618 module cannot withstand submersion, so it is not suitable for a meter subject to flooding.
Flow Meter Summary
Manufacturer | McCrometer |
Models | Mc Propeller |
Type | Mechanical propeller |
Pulse Interface | Add-on with EA618-02 module. McCrometer can do a reverse look up by serial number, module is set in the factory |
Programming | None |
Battery Life Claimed | N/A. Pulse generated mechanically |
Support Contact | |
Straight Pipe Requirement |
|
Pipe Sizes Supported |
|
Technical Manual |
|
Field Photos & Reference Sites
Site Assessment
Note straight pipe requirements
Upstream Requirement: Mc Propeller meters should be installed a minimum of five to ten diameters downstream of any obstructions. See the tables below. The exact upstream piping requirements are specific to the meter model number.
Downstream Requirement: The downstream run should be one to two diameters of straight pipe length after the meter.
Note full pipe requirements
All propeller flow meters are calibrated for a full pipeline only; if less, the flow meter will over register the flow. Although a minimum line pressure is not necessary for an accurate measurement, a full pipe is necessary.
Pulse Output Connections
A picture of the serial number of the meter itself is nessasary and not the EA618-02 pulse transmitter
Send serial number to McCrometer asking for pulse output
