Meter Group ES-2 Electrical Conductivity and Temperature Sensor - Wiring

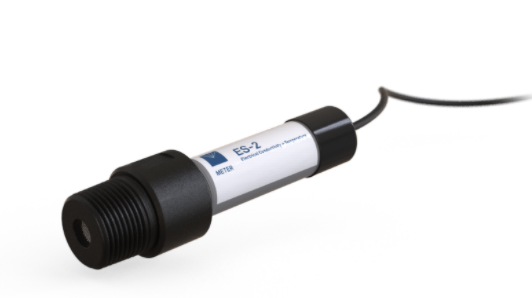

Meter Group's Electrical Conductivity and Temperature Sensor (ES-2) measures the electrical conductivity of water in a pipe or tank.
The following pin guide is for any logger with "S" in the name
M12 Pin | Function | ES2 Cable Colour |
|---|---|---|
1 | 12V Power | Brown (or White) |
2 | SDI12 Data | Orange (or Red) |
3 | <Not Connected> | |
4 | Ground | Bare/shield |
5 | <Not Connected |
