Netafim IRT - Wiring
Tools required:
Wire strippers
A way to secure two bare wire connections
Installation Materials:
1 x Wildeye Cable (part# WILD-CAB-M12-M-5)
Instructions:

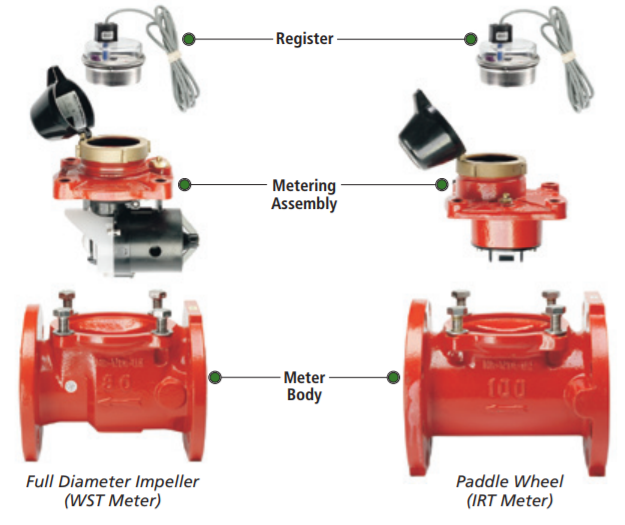

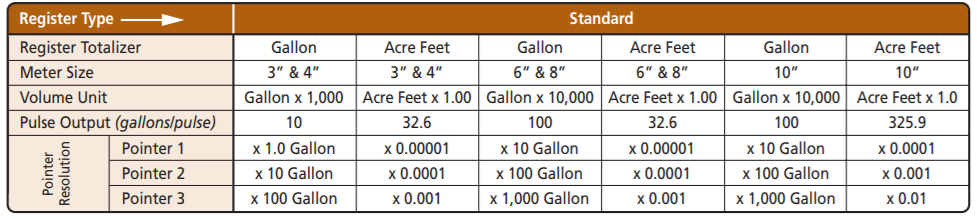

A "Pulse Reed Switch" module must be installed onto the register to get pulse output.
Connect the wires, black to black and red to white.
Secure the wires together
Function | Wildeye Colour (MCCD) | Wildeye Colour (NACS) | Netafim IRT |
Counter | White | Grey | Black |
Ground | Black | Black | Red |
