Seametrics FT420 - Wiring

Pulse Configuration

Note: If the wildeye is attached, using a tackle box method. The Flow meter must be a FTXXX-XX-50

FT4x0 units have a setting called "Set P" which allows one to view or change the volume of flow totalized per pulse sent to "pulse out 1".

"Pulse Out 1" has a maximum scaled pulse output of 6.5Hz, and a fixed pulse width of 100ms.

Therefore, adhere to the following pulse weight selection when configuring the "Set P":

Pulse weight selection

1 Gallon per Pulse : works for flow rates not more than 360 GPM
10 Gallon per Pulse : works for flow rates not more than 3600 GPM

Electrical Connections

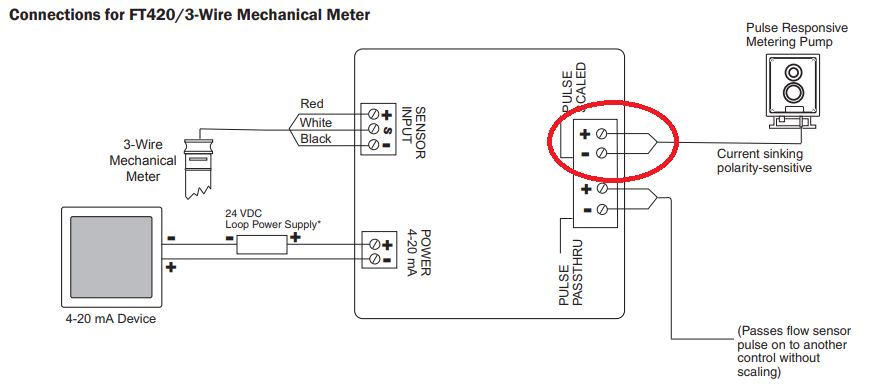

FT420

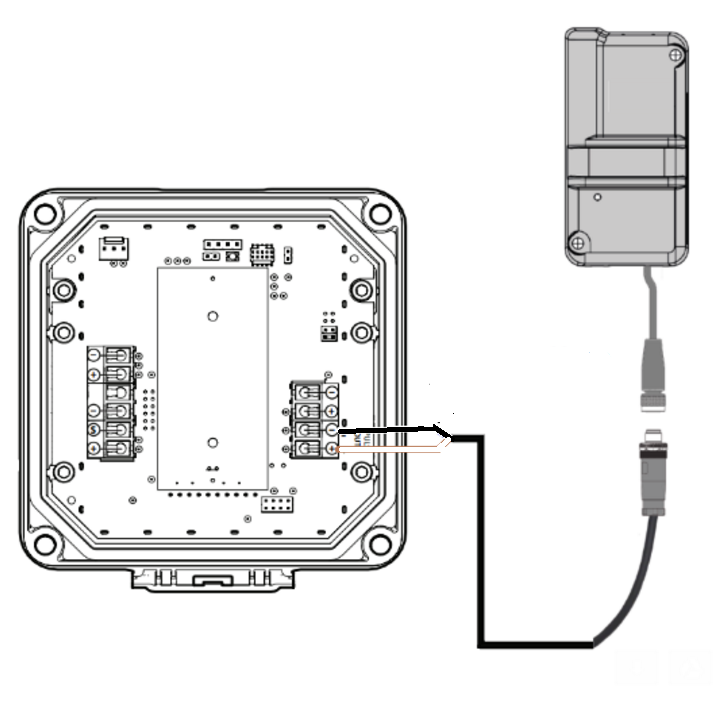

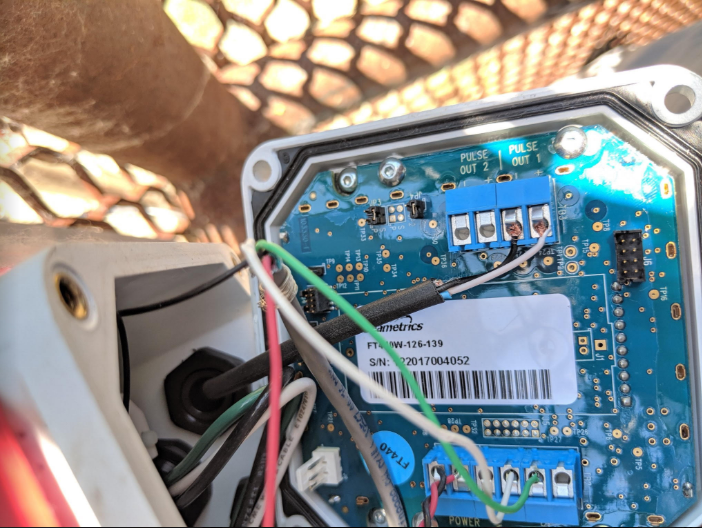

FT440
