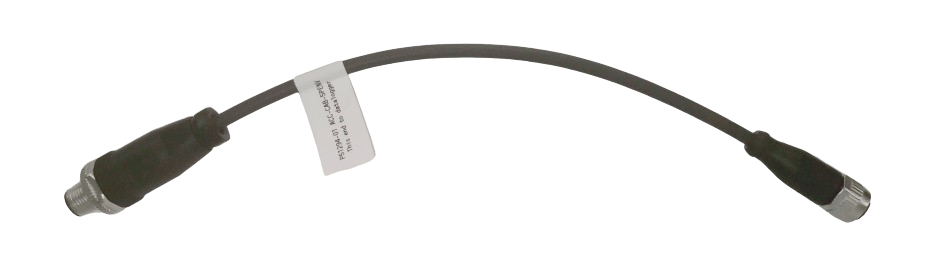

ACC-CAB-5PCOUNT & ACC-CAB-5PENV adaptor cables
These conversion cables help get your old pulse-output sensors connected to new 4G loggers, without any fiddly wiring changes.
Connect it between your new WILD-M datalogger and your old existing pulse-output sensor with counter on Pin 2.
ACC-CAB-5PCOUNT - Only contains counter lines
ACC-CAB-5PENV - Contains counter + analogue + SPO
Background
Back in the days of 3G, our WASP2, COBRA2, & WILD-E data-loggers had 4-pin M12 input connectors, and the standard pin position for a Counter line was Pin 2. Now our 4G WILD-M data-loggers use 5-pin M12 connectors, the standard position for Counter is Pin-5.
ACC-CAB-5PCOUNT Pinout:
Male M12 (to datalogger) | Function | Female M12 (to sensor) |
Pin 1 | N/C | - |
Pin 2 | N/C | - |
Pin 3 | N/C | - |
Pin 4 | Ground | Pin 4 |
Pin 5 | Counter | Pin 2 |
ACC-CAB-5PENV Pinout:
Male M12 (to datalogger) | Function | Female M12 (to sensor) |
Pin 1 | SPO | Pin 1 |
Pin 2 | N/C | - |
Pin 3 | 4-20mA An | Pin 3 |
Pin 4 | Ground | Pin 4 |
Pin 5 | Counter | Pin 2 |
