SSI Technologies P51 Pressure Gauge

Note:  wildeye M12 connections are NOT compatible with the M12 connectors on pressure transducers by SSI Technologies.  Use M12 mating connectors (available from wildeye USA or directly from Binder USA, our supplier).

Full documentation for the SSI Technologies P51 Pressure gauge can be found here

Don't forget to calibrate pressure range before you use!

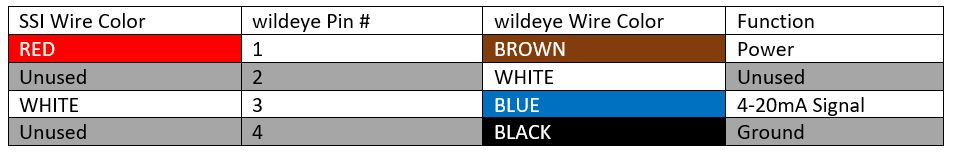

Wiring Guide for 4-20 mA output

SSI product code: P51 - ___ - ____ - ____ - 20mA

First segment

Product family: should be "P51"

Second segment

Pressure range: consult supplier.  Be sure to calibrate.

Third segment

Port configuration: consult supplier

Fourth segment

Connection: must be leaded end.  Acceptable values are "6", "12", "18","24","36", "72" If the sensor has an M12, Deutsch, Packard, or MD connector; cut wire and strip insulation to make leaded end.  M12 on wildeye will NOT be compatible with M12 on product.

Fifth segment

Output = "20mA"


Wildeye compatibility

Wiring instructions valid for -NACS, -MAC, -MAS, -MA, -MAA wildeye leads.  For all other analogue leads, consult pinout for that lead.

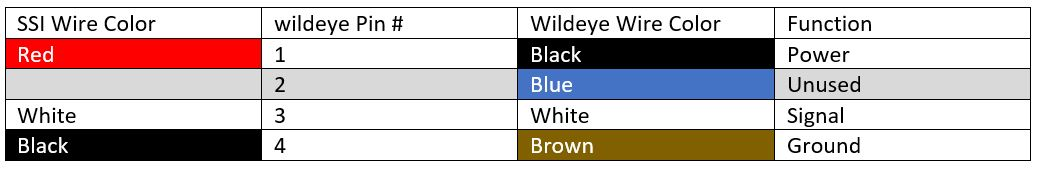

Wiring Guide for voltage output (0.5-4.5V)

SSI product code:

  • P51 - ___ - ____ - ____ - 4.5V

  • P51 - ___ - ____ - ____ - 4.5OV

First segment

Product family: should be "P51"

Second segment

Pressure range: consult supplier. Be sure to calibrate

Third segment

Port configuration: consult supplier

Fourth segment

Connection: must be leaded end.  Acceptable values are "6", "12", "18","24","36", "72"  If the sensor has an M12, Deutsch, Packard, or MD connector; cut wire and strip insulation to make leaded end.  M12 on wildeye will NOT be compatible with M12 on product.

Fifth segment

4.5V, 4.5OV


Wildeye compatibility:

Wiring instructions valid for -MV, -MV2S, -MV2C, -MV2 and -MV2V2 leads.  For other voltage leads, contact wildeye USA.

Wiring Guide for voltage output (1-5V)

SSI product code: P51 - ___ - ____ - ____ -5V

First segment

Product family: should be "P51"

Second segment

Pressure range: consult supplier. Be sure to calibrate

Third segment

Port configuration: consult supplier

Fourth segment

Connection: must be leaded end.  Acceptable values are "6", "12", "18","24","36", "72"  If the sensor has an M12, Deutsch, Packard, or MD connector; cut wire and strip insulation to make leaded end.  M12 on wildeye will NOT be compatible with M12 on product.

Fifth segment

5V


Wildeye compatibility:

Wiring instructions valid for -MV, -MVS, -MVC, and -MVV leads.  For other voltage leads, contact wildeye USA.
