Control Setup & Wiring for Yaskawa P1000 VFD
Pump Setup
Yaskawa P1000 VFD
There are 3 parts to setting up the Yaskawa P1000 for pump control:
Wiring up the Wildeye relay control module to control the pump
Configuring the P1000 to accept control from the "external run source".
Attaching the pump monitoring feedback
Wiring the Wildeye Relay Control

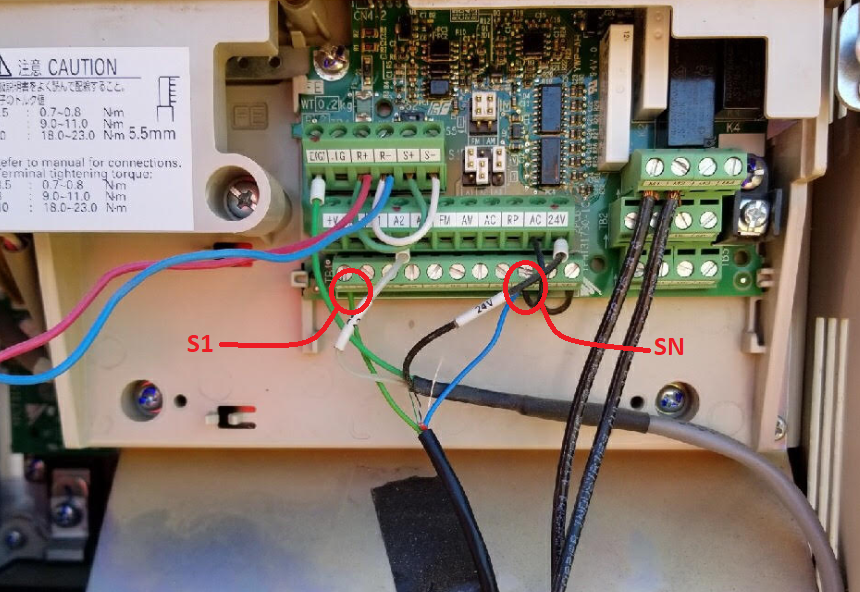

Wire the 2 relay control lines from ACC-CTRL-RELAY-S into the Yaskawa P1000 as shown below (green and blue wires)
Yaskawa Wiring Detail
Wildeye Relay control module (3-core cable) -> P1000 Terminal block
Wildeye Relay control module | Function | P1000 |
|---|---|---|
Red | Normally Closed | Do Not Connect |
Green | COM-Common | Connects to "S1" |
Blue | Normally Open | Connects to "SN" |

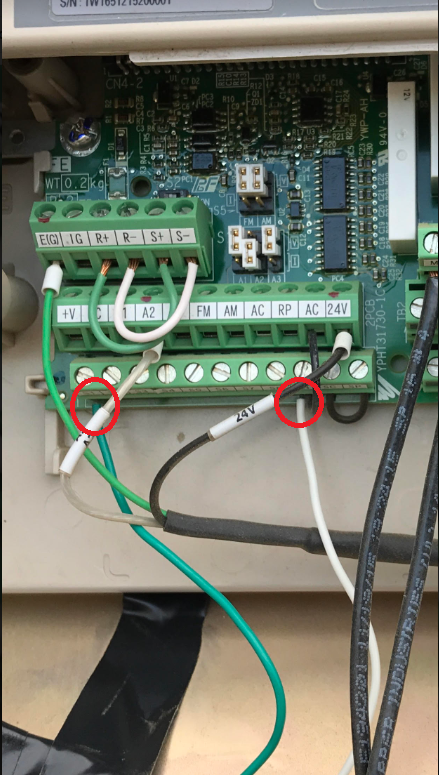

Connection using older relay controller with Green & White wires:
Hooking up the Solenoid Current Switch
A solenoid current switch should be attached on PUMP SIDE the high current wire coming from the VFD module to the pump.
Photograph:
Solenoid Wiring
Rainbird solenoid:
blue wire to wildeye controller "red"
brown wire to wildeye controller "blue”
Netafim 3W NO1.2 Latch 4Ohm
(Waiting for wiring diagram from Cesar)
