The following is a list of standard Wildeye product codes (4G - CatM1 / NBIoT Versions) which are stocked in our branch offices. To find the best upgrade compatibility options for your 3G Wildeye, see Upgrading from legacy model codes.
Standard Wildeye Rechargeable Models
|
Product Code
|
Image |
Plug #1 Channels |
Plug #2 Channels |
Applications |
|---|---|---|---|---|
|

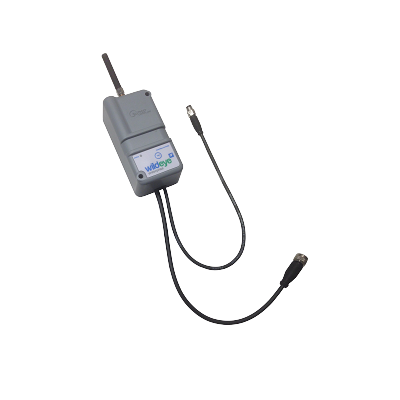

WILD-M-R-NACS-NACS-xxx |
|
1 x 4-20mA 1 x Counter 1 x SDI12 |
1 x 4-20mA 1 x Counter 1 x SDI12 |
General Purpose Swiss-army knife for monitoring & control - multiple meters/sensors |
|

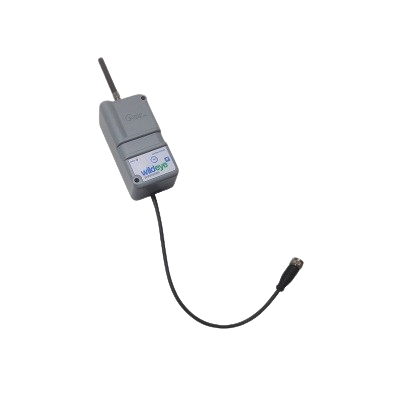

WILD-M-R-NACS-xxx |
|
1 x 4-20mA 1 x Counter 1 x SDI12 |
-
|
Requiring only 1 input plug. Eg Reservoir, Lake, Standpipe Depth Monitoring, Soil moisture-only, Soil Remediation, Stand-alone Temp/Humidity, line pressure |
|

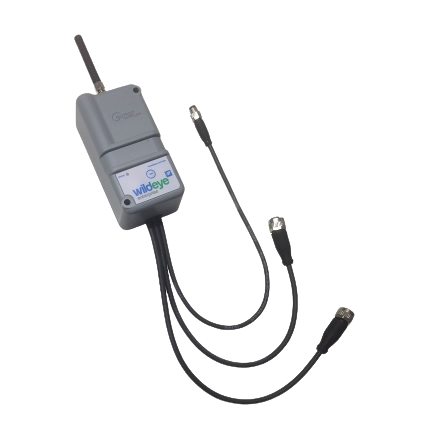

WILD-M-R-NCCS12-NAS-xxx |
|
2 x Counter 1 x SDI12 (12V CPO) |
1 x 4-20mA 1 x SDI12 |
Weather monitoring, requiring constant power to weather-station for wind gust data |
|
WILD-M-R-MCCD-MAS-TEL |
|
2 x Counters 1 x Tamper |
1 x 4-20mA 1 x SDI12 |
Specialty product for Australian market (Telstra SIM). |
Standard Wildeye "Long-life" Internal Battery Models
|
Product Code
|
Image |
Plug #1 Channels |
Plug #2 Channels |
Applications |
|---|---|---|---|---|
|
WILD-M-B-MCCD-xxx |
|
2 x Counter 1 x Tamper |
-
|
2 x Flow meter or flow meters with dual outputs (legacy MCCD cable compatibility) |
|
WILD-M-B-NACS-xxx |
|
1 x 4-20mA 1 x Counter 1 x SDI12 |
- |
Reservoir, Lake, Standpipe Depth Monitoring, Soil moisture-only, Soil Remediation, Stand-alone Temp/Humidity, line pressure |
