Seametrics Ex 100/200 Series Insertion Meter
Flow Meter Summary
Note: If the wildeye is attached, using a tackle box method. The Flow meter must be a FTXXX-XX-50
Manufacturer | Seametrics |
Models | Ex11x / Ex21x Ex15x / Ex25x "hot-tap" |
Type | adjustable depth insertion magmeters |
Pulse Interface | Separate indicators or converter required: FT430 (externally powered with pulse output) AO55 (blind analog 4-20 mAtransmitter) |
Programming | Keypad |
Battery Life Claimed |
|
Support Contact | Steve Huth (Technoflo) |
Straight Pipe Requirement | 10D upstream and 5D downstream. |
Pipe Sizes Supported | Ex 110: 3-10″ Ex 210: 10-48″ pipe (up to 72” optional) |
Technical Manual | attached |

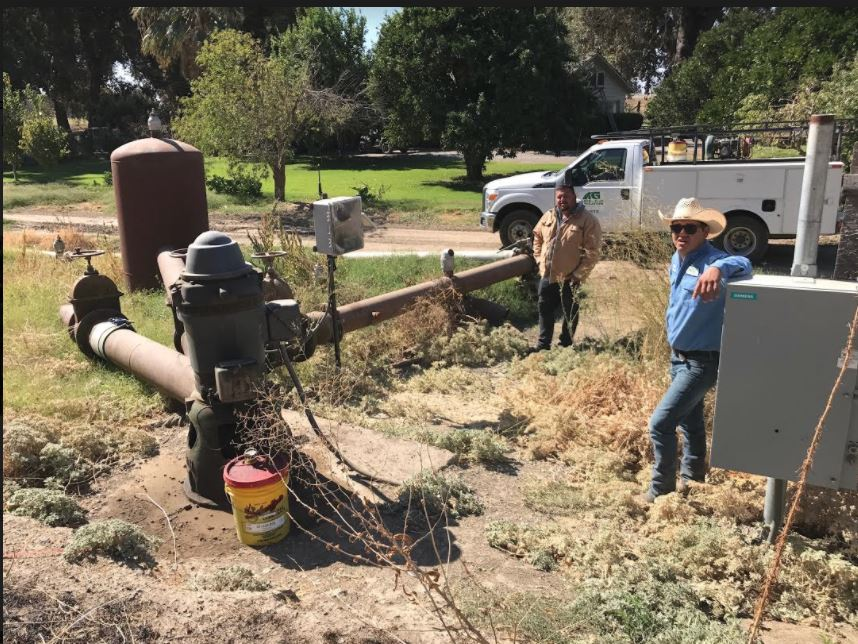

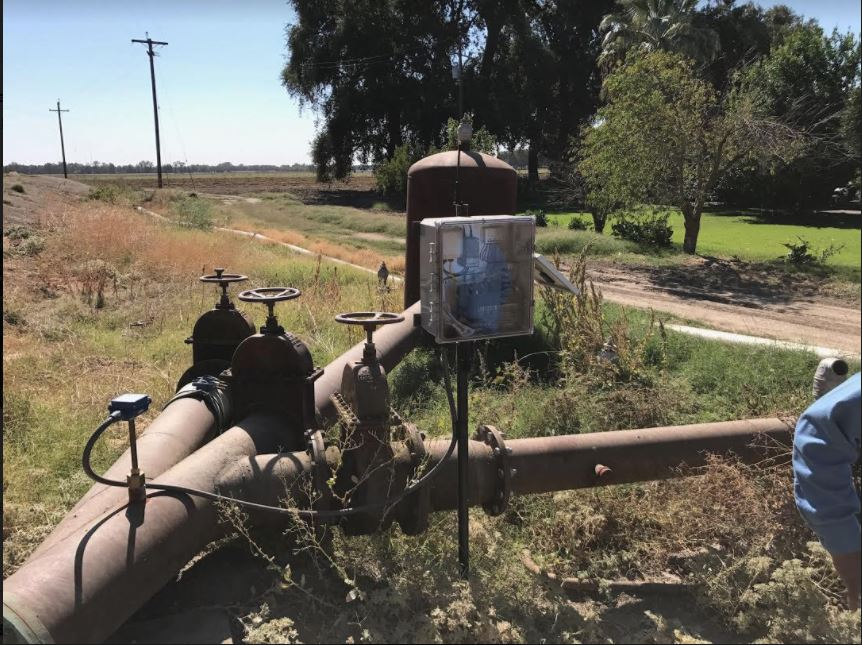

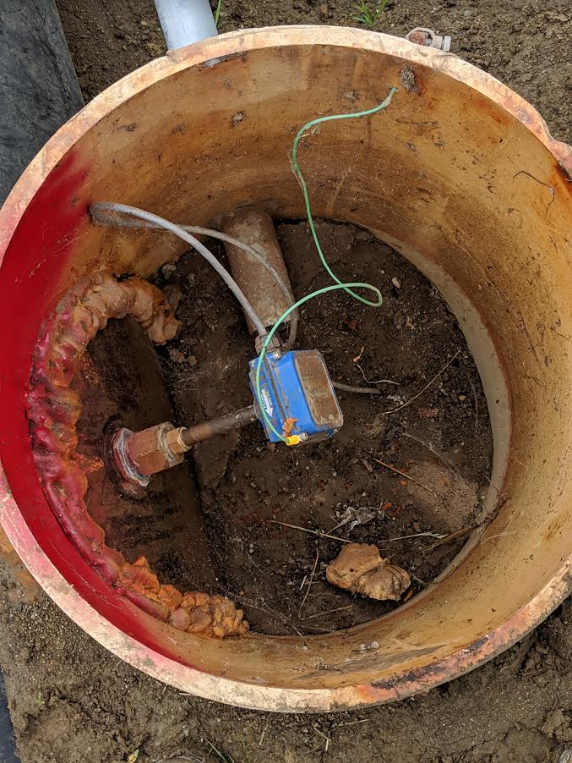

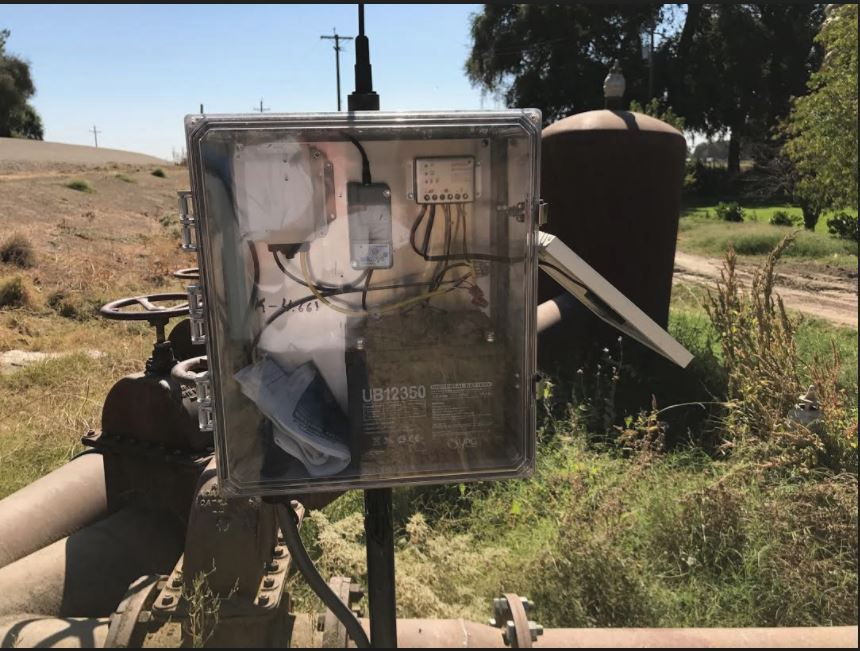

Photographs
Site Assessment
Note straight pipe requirements
Note full pipe requirements
Note grounding rod requirements
Note grouding ring requirements for plastic pipe (HDPE Pipe)

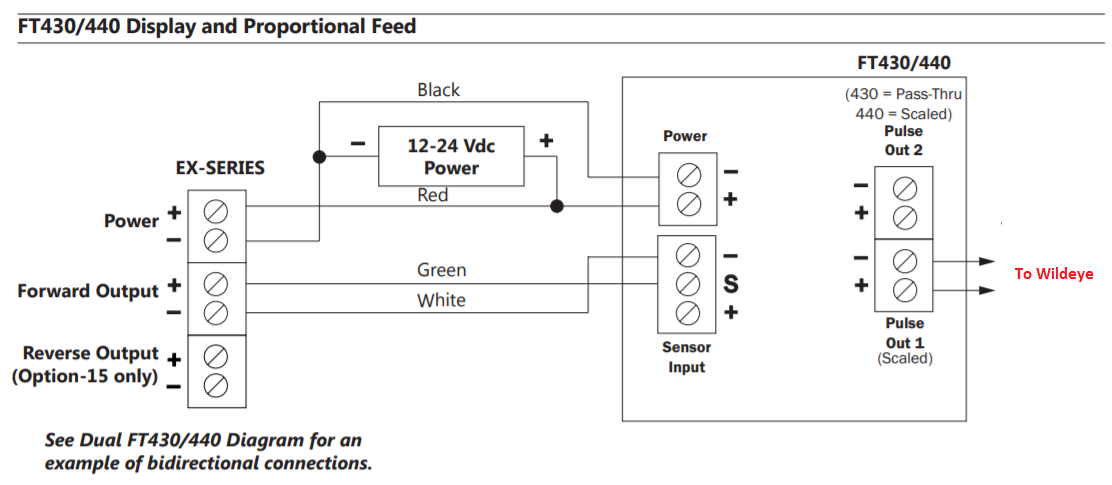

Pulse Output Connections:

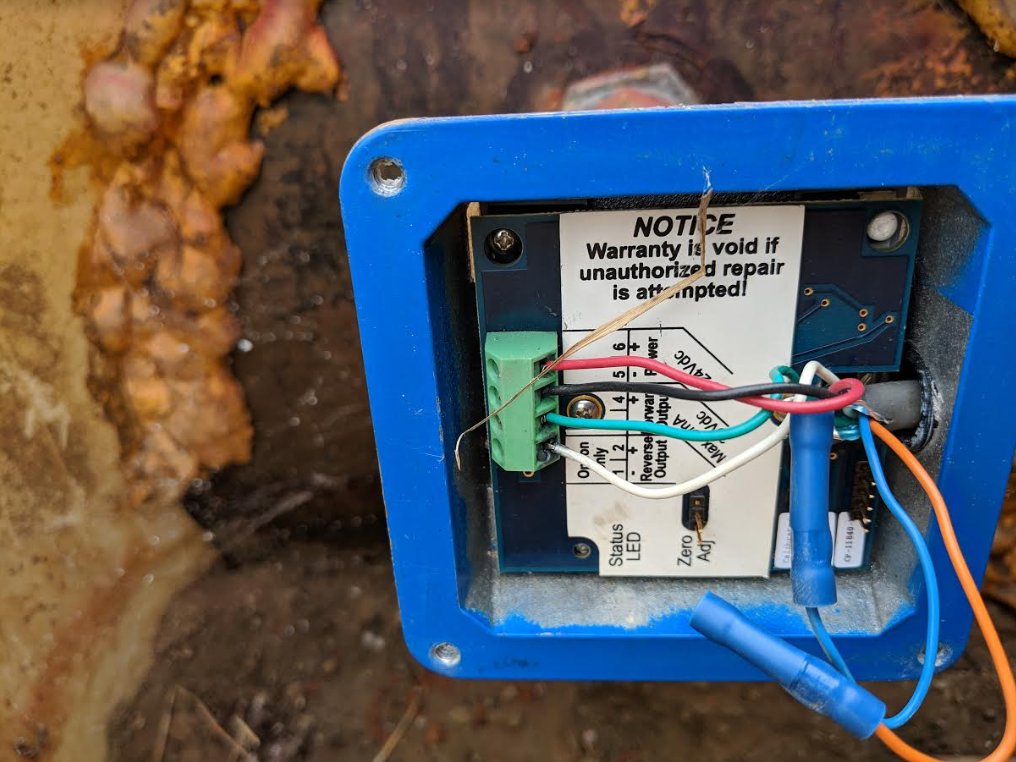

Meter Pulse Output Port:
A Seametrics Ex 100/200 Series meter has the following options for pulse output:
Pulse Output Programming:
-From the main screen. Push the check mark.
-Use the arrow buttons to move the highlighted area to the tab on the lower left hand corner
-Using the arrow buttons indicate what the requirement is for the pulse output
-Ensure that the pulse output on the Seametrics meter matches that of the wildeye
