EasyLevel for Water & Diesel Tank Level Monitoring

Real-time Level Monitoring for Stock Water & Diesel Tanks, Ditches & Canals

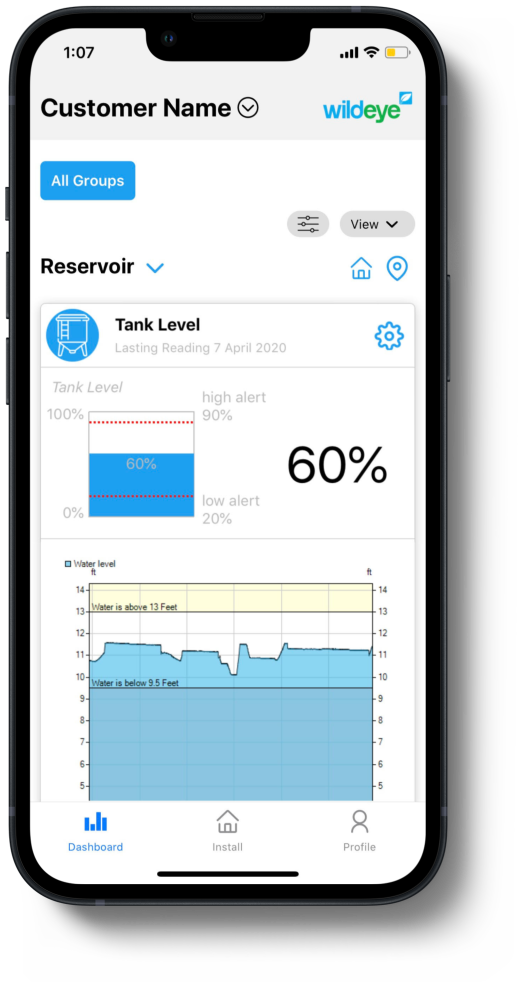

  • The Wildeye EasyLevel solution enables viewing of your water tank, diesel tank or irrigation ditch level directly on your phone and in high resolution.

  • Designed for simple installation with a drop-in "non-vented" stainless-steel submersible pressure sensor, that does not require a vent box.

  • SMS or email alerts can be triggered when a target threshold is crossed.

  • The components of the EasyLevel solution are selected for their rugged waterproof construction to allow for long-life outdoor installation.

  • Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported.  Scroll down to view complete specifications.



Components:

Product Code

Description


WILD-M-R-NACS-NACS

Wildeye 4G IoT telemetry device


ACC-SEN-SUBM-ABS-S3-D5M-C5M5

Submersible Pressure sensor

  • 5m depth, 5.5m cable


ACC-SEN-SUBM-ABS-S3-D10M-C11M

Submersible Pressure sensor

  • 10m depth, 11m cable


ACC-SOLBRACKET-JC-5W

Solar panel with Wildeye mounting bracket


ACC-ANT-EXTER-700-3DB-0M3

3dB High-gain antenna with 0.3m cable (optional)


ACC-ANT-EXTER-700-3DB-5M

3dB High-gain antenna with 5m cable (optional)


Installation

Installation requires 4G Cat-M or NBIoT signal is available at site, and the Wildeye smartphone app must be downloaded and used to capture data during the installation.

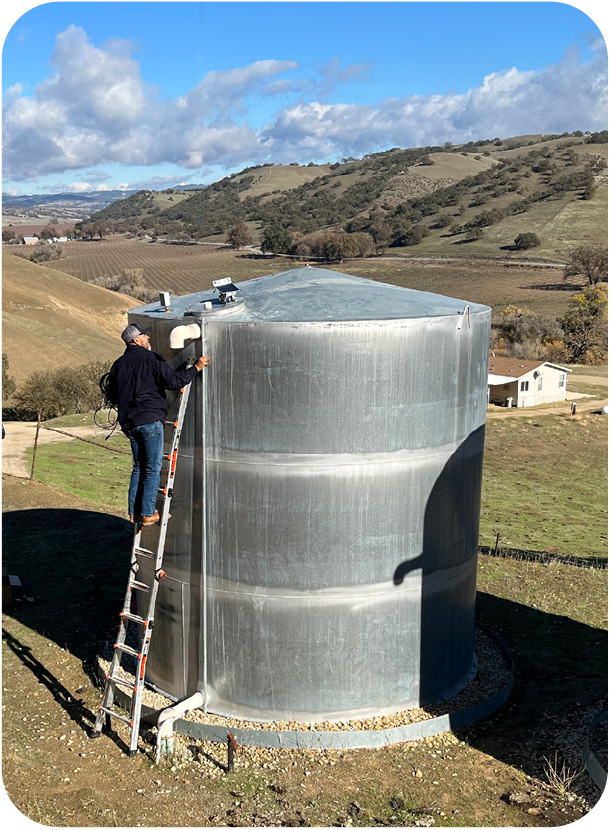

The tank level sensor is dropped in from the top of the tank and the sensor element rests on the bottom of the tank.

Software & Data Access

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.

Support

Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye products, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.

Specifications:

Parameter

Specification

Data Upload Frequency

2-Hourly Standard

(Up to maximum 5-minute for real-time option)

Level Data Sampling Frequency

30 minutes standard (configurable)

Barometric data sampling frequency

5 minutes

Water Protection Level

IP67 (Pressure sensor is IP68)

  • All components must be combined and assembled correctly

  • The Wildeye datalogger will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored.

Pressure Sensor Operating Temperature Range

0°C to +70°C (+32°F to +158°C)

Pressure Sensor Ranges

5m sensor: 0-4.36m (0-14.3ft)*

10m sensor: 0-9.36m (0-30.7ft)*

*At 1013hPa barometric pressure (avg baro pressure at sea level)

(Enquire for custom ranges)

Pressure Sensor max pressure limit

5m sensor: 6.53m (21.4ft)

10m sensor: 14.04m (46.1ft)

Pressure Sensor Accuracy (-10°C to 50°C)

5m sensor: ±46mm (±1.8in)

10m sensor: ±92mm (±3.6in)

Pressure Sensor Size

Diameter: 25mm (1in)

Length: 150mm (5.9in)

Pressure Sensor Cable Length

5m sensor: 5.5m (18ft)

10m sensor: 11m (36.1ft)

(Enquire for custom lengths)
