Standard Flow Metering solution
Cost effective addon to get existing flow meters online
The Wildeye Flow-Meter solution provides a cost effective and convenient way to connect existing flow meters to the web for water reporting and flow monitoring applications.
The Wildeye can attach to virtually any flow meter that provides an output interface, including
Pulse output
MODBUS (RS485, RS232, Siemens Mag8000, Aquamonix I300 & I500)
4-20mA flow meters.

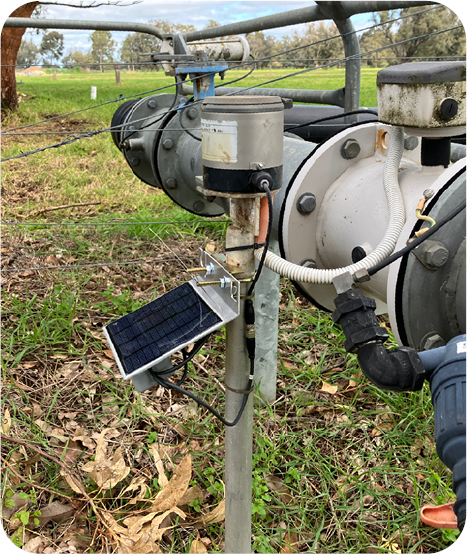

Wildeye connected to a Siemens MAG8000

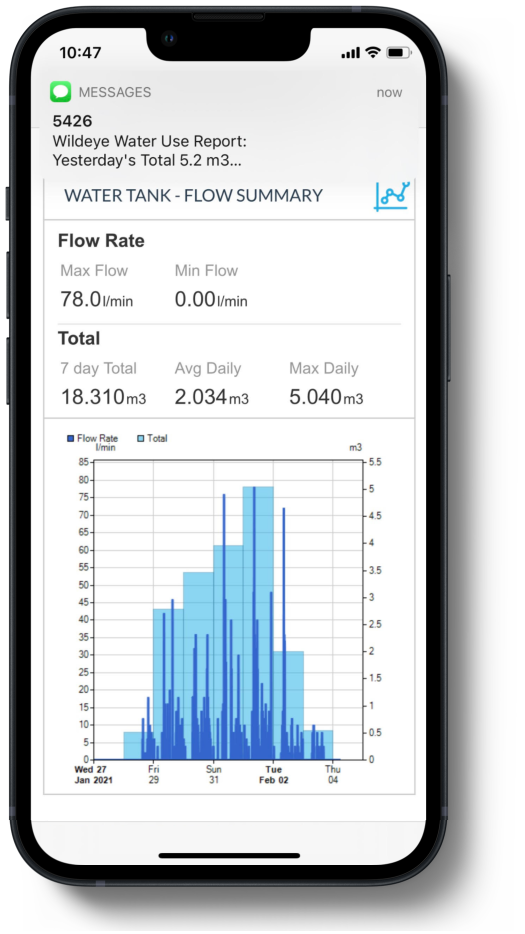

Data is sent directly to the cloud for convenient web-based access from any internet connected device, with wide ranging tools for alerting and reporting water use, including water delivery rates & volumes.
Connectivity is managed by the Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported. Scroll down to view complete specifications.
Applications:
State water reporting requirements
Irrigation time-of-use monitoring
Irrigation system performance & fault monitoring
Connectivity
Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks.
Wildeye utilise telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.
Software & Data Access
Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.
Support
Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.
Specifications:
Parameter | Specification |
Data Upload Frequency | 2-Hourly Standard (Up to maximum 5-minute for real-time option) |
Data Sampling Frequency | 30 minutes standard, configurable between 5min and daily. |
Water Protection Level | IP67 - all package components must be combined and assembled correctly - The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once connectivity is restored. |
Pulse Input Max Frequency | 25hz |
Wildeye Hardware |
