Single-Point Soil Moisture Monitoring

Real-time Data from Single Point Moisture Sensors for Turf, Sports Grounds, Substrate & Agricultural Irrigation Monitoring

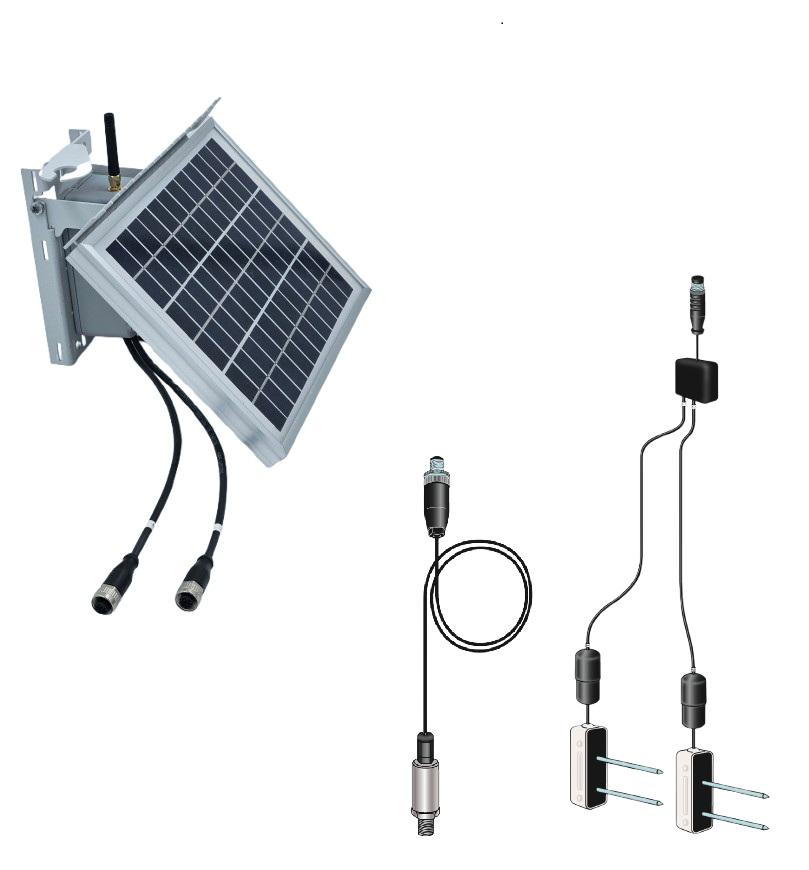

2 x single point sensors with
pressure gauge package components

The Wildeye Single-Point Soil Moisture Monitoring solution combines the renowned Wildeye telemetry and software platform with accurate and cost-effective capacitance soil sensors for collection of soil information (water content, temperature and EC/salinity).

Up to 3 single point sensors are installed at flexible depths by digging a trench and backfilling. The trenching method allows sensor cables to be lead away from the monitored location to avoid aesthetic damage to turf and to avoid physical disturbance of the soil profile through which irrigation water passes.

The installation process does not require a slurry and the sensor needle design creates excellent soil contact with a large sensing volume for accurate long-term reliability.

Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported.  Scroll down to view complete Permanent Soil Monitoring Package Specifications.

Components

  • 1, 2 or 3 quality single point capacitance soil sensors with optional EC sensing

  • Optional pressure transducer for monitoring irrigation time-of-use and identifying faults in the irrigation system (6ft lead, extendable)

  • Wildeye 4G IoT telemetry device

  • Solar panel with Wildeye mounting bracket

  • Outdoor 3dB Antenna, 16ft extension for optional elevation

Installation

Installation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation.

Wildeye’s network of staff and distribution partners are experienced soil scientists and agronomists, with a fixation on technology to help farmers, and unmatched collective soil moisture probe installation experience.

Guidelines for installation of the single point sensors are here, and additional training can be provided to internal staff.

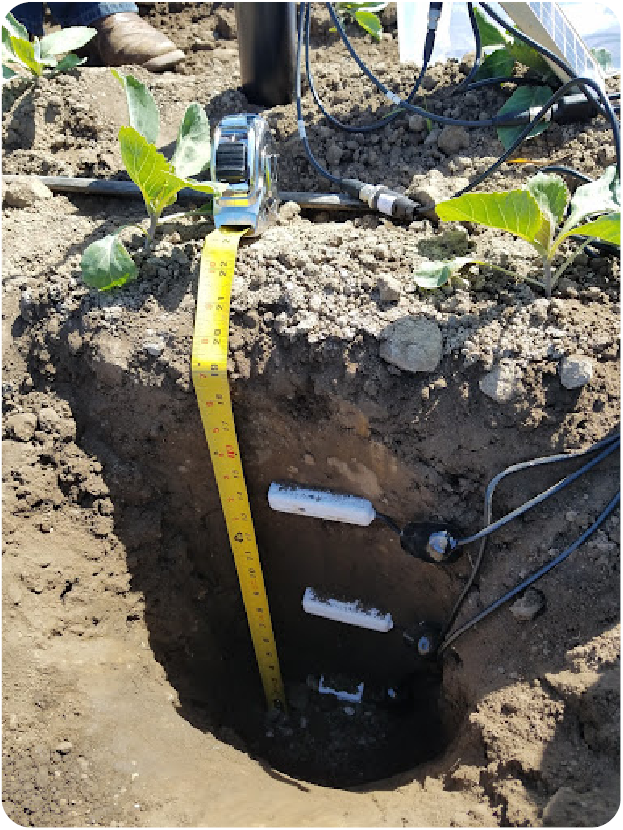

3 x Soil Sensor Monitoring, CA, USA (prior to back-fill)



Applications:

  • Golf courses

  • Sports fields

  • Turf monitoring

  • Substrate / coir

Connectivity

Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks.

Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.

Software & Data Access

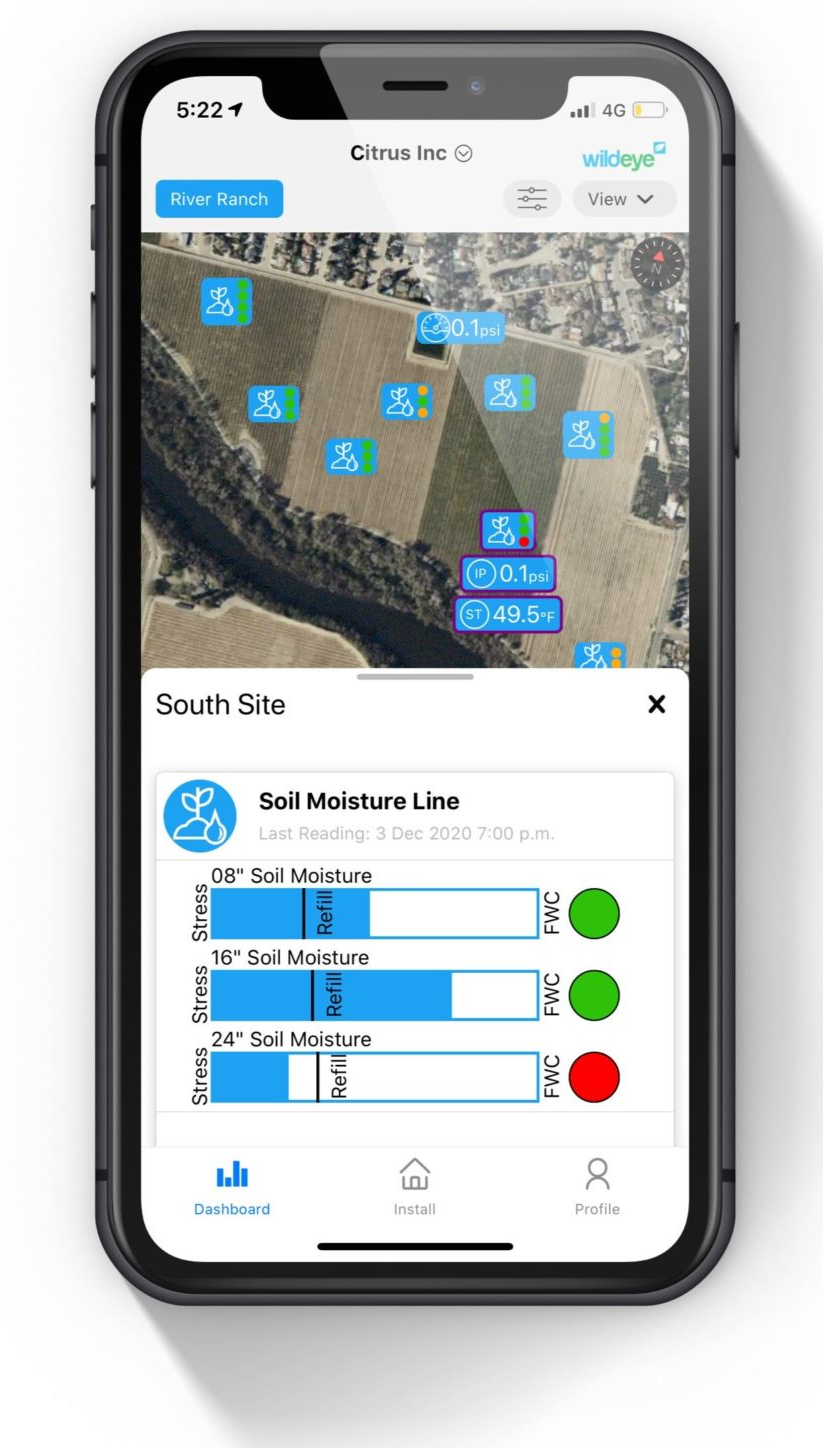

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.

Support

Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.

Specifications:

Parameter

Specification

Data Upload Frequency

2-Hourly Standard

(Up to maximum 5-minute for real-time option)

Data Sampling Frequency

30 minutes standard (all soil probe & pressure parameters)

Water Protection Level

IP67

- all package components must be combined and assembled correctly

- The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored.

Soil Probe Operating Temperature Range

-68°F to +140°F

Soil Probe Sensor Ranges



Volumetric Water Content: 0% VWC to 50% VWC

Soil Temperature: -20°C to +60°C

Soil Probe Accuracy

Volumetric Water Content: ±3% @ 0% VWC to 50% VWC (against factory reference)

Soil Temperature: ±3.5 °F @ 77 °F

Soil Probe Size

Diameter: 1.18in max (At top of probe)

Pressure Transducer

¼” NPT

Range: 0 - 200 psi

Accuracy: 1.5%  (Includes Wildeye 4-20mA channel error, 32°F - 122°F)

Wildeye Hardware

Wildeye 4G IoT telemetry device
