Adding a Soil Moisture Sensor
Requirements:
Wildeye logger with an "S" in the product code (SDI12) eg. WILD-E-R-NACS-NACS
Soil Moisture Probe
Click on the sites tab at the top of the screen.
Locate the site that you want to add a soil moisture sensor to and click on it's wrench icon on the right hand side of the window.

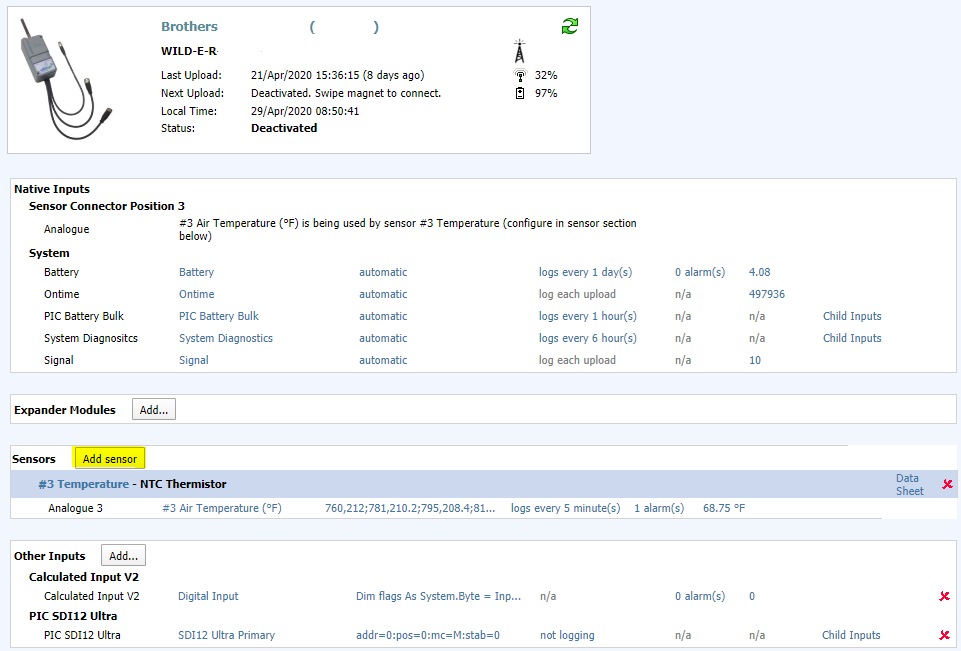

Click the "Add Sensor" Button
Start typing in the name of the soil moisture sensor or the sensor product code, eg "Enviropro" or "ACC-SEN-EP100G-40”

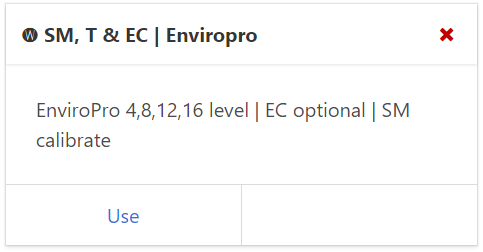

Click on the "Use" button

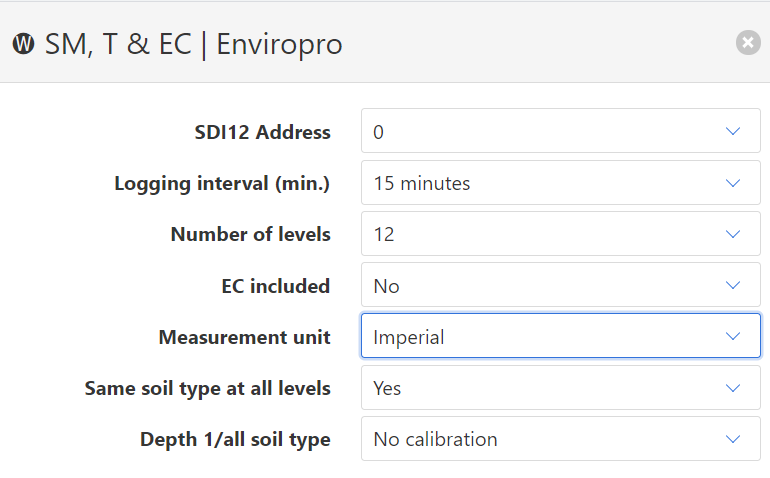

Select the necessary drop-downs to fit your requirements
SDI12 Address: This is a predetermined number that the sensor is set to
Most sensors are preset by factories as "0"
Logging interval (min): Logging should be set to 15 minutes
For full length probes logging should not be set faster than 15 minutes
Number of levels: This is a preset number on the probe and should be adjusted to fit the specifications of the probe itself
EnviroPro
16" = 40cm = 4 sensors
32" = 80cm = 8 sensors
48" = 120cm = 12 sensors
64" = 160cm = 16 sensors
Sentek
12" = 30cm = 3 sensors
24" = 60cm = 6 sensors
36" = 90cm = 9 sensors
48" = 120cm = 12 sensors
EC Included: This is a predetermined setting and the choice should be selected based on the specifications of the probe itself
Note
EnviroPro's can be remotely upgraded to EC. Get in touch with Wildeye to find out how. Have your Enviropro’s serial number handy.
Sentek Drill and drops can not be upgraded, they either have EC or do not
Same Soil Type at all levels: This is an option when knowing the soil type in the field ahead of time.
Depth 1/all soil type: This can be adjusted to fit the soil profile
Click "Add Sensor to site"
