Configuration: Pressure Transducer

  1. Login Wildeye

  2. Click on the sites tab at the top of the screen.

  3. Locate the site that you want to add a pressure transducer to and click on it's wrench iconon the right hand side of the window.

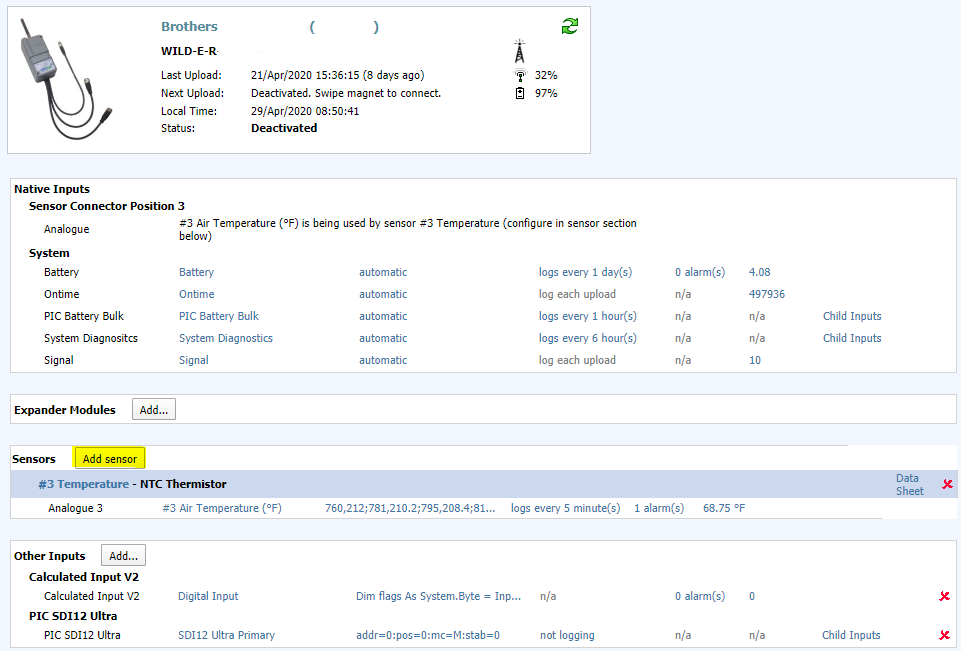

  4. Locate the button "Add Sensor" Button


  1. Start typing in the manufacture of the pressure transducer

  2. Click the "Use" button

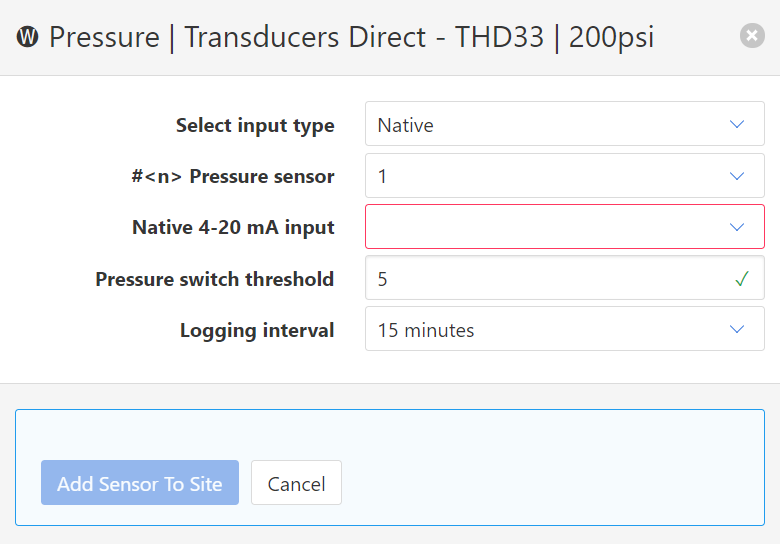

When selecting the drop downs

  • Native vs ACC-EXP

    • Native: This is the regular cable with no box

    • ACC-EXP: This is a very unique cable with a small box that is inline with the cable that connects to the pressure transducer

  • <n> Pressure Sensor: This helps distinguish between cable 1 and cable 2

  • Native 4-20mA input: The drop down will vary by name depending on the logger used. The choices will match what is listed under the "Native Inputs". i.e. if "Sensor Position 1" has a name of MAC 4-20mA, that name will appear as it does on the Native Inputs.

  • Note: When planning which cable you'll be attaching the pressure transducer, that is the side that will need to


Click "Add Sensor to Site"
