Standard Rain Gauge Monitoring
High Resolution Rain Data for Broadacre & Dryland Farming
The Wildeye Online Rain Gauge is a self-emptying, low-maintenance, online rain gauge that provides a cost effective and convenient way to collect rainfall measurements. Unlike traditional manual rain gauges, the Wildeye rain gauge is effectively read every 15 minutes in 0.2mm increments - so not only does it tell you how much rain fell, but also precisely when and at what intensity.
Furthermore, unlike manual gauges where data needs to be manually transferred to long term records, data from the Wildeye rain gauge is delivered directly to the cloud for convenient and secure storage and access. And for completeness, you can even upload your existing manual rainfall records.
Online Rain Gauge solution components
Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported. Scroll down to view complete specifications.

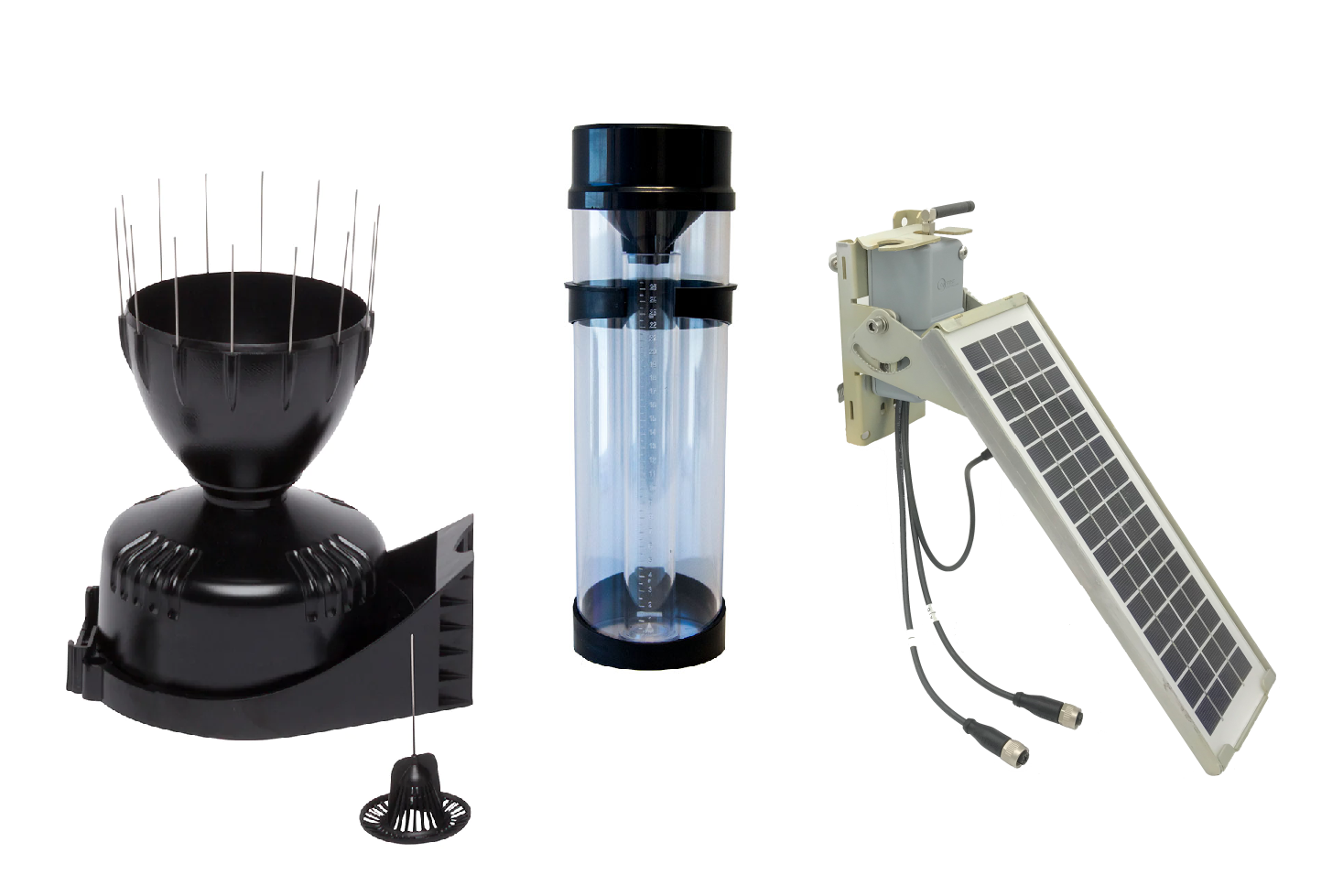

Components
Commercial grade tipping bucket rain gauge
Manual rain gauge
Solar panel with Wildeye mounting bracket
Outdoor 3dB Antenna, 5m extension for optional elevation
Installation
Installation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation.
The Online Rain Gauge package install instructions are provided here, or contact Wildeye’s network of staff and distribution partners are experienced with the installation requirements.

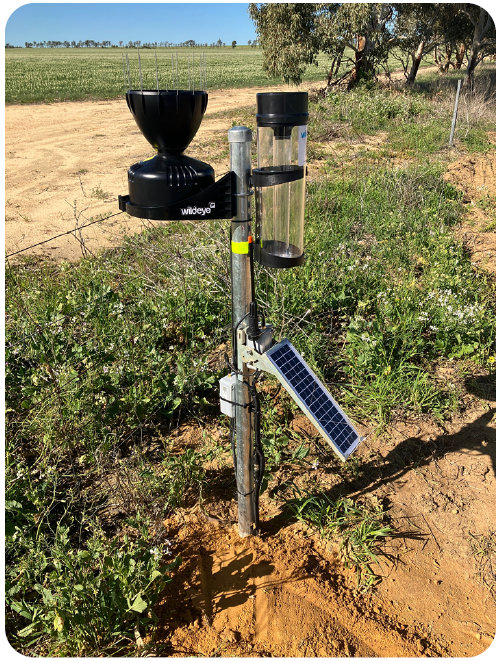

Online Rain Gauge Monitoring, WA, Australia
For peace-of-mind, every Wildeye rain gauge includes a traditional manual rain gauge with a unique Wildeye QR code for easy entry of rain records via our smartphone app. This provides backup data to ensure a complete, verifiable rain record is maintained.
Connectivity
Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks.
Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.
Software & Data Access

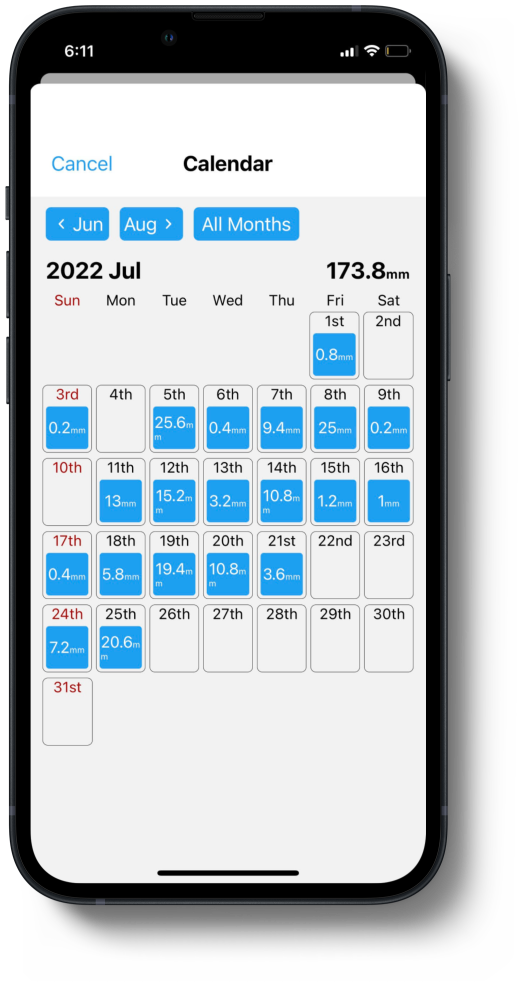

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.
Support
Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.
Specifications
Parameter | Specification |
Data Upload Frequency | 2-Hourly Standard (Unit will connect within 15minutes of rainfall) |
Data Sampling Frequency | 15 minutes standard |
Water Protection Level | IP67 - all package components must be combined and assembled correctly - The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored. |
Rainfall Resolution | 0.2mm resolution/15 minute |
Collector size | 214 cm2 |
Accuracy | ±4 % up to 50 mm/hr |
