Standard Weather Station

Real-time Online Data, Alerts and Agronomic Indices for Farming Applications

The Wildeye Weather Station is a complete, online weather station that not only provides real-time data for key weather parameters like rain, temperature, humidity and wind; but also generates agronomic indices such as Reference Evapotranspiration, Delta-T, Chill Portions, Growing Degree Days and more.

It’s used by corporate farming enterprises throughout Australia and California, government agriculture departments in WA, Victoria, NSW and Queensland, agricultural input suppliers like Sygneta and David Grays, NSW Rural Fire Service, countless grower groups, and individual farmers California and Australia-wide.


Standard Weather Station components.

Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported.  Scroll down to view complete specifications for the Standard Weather Station package.

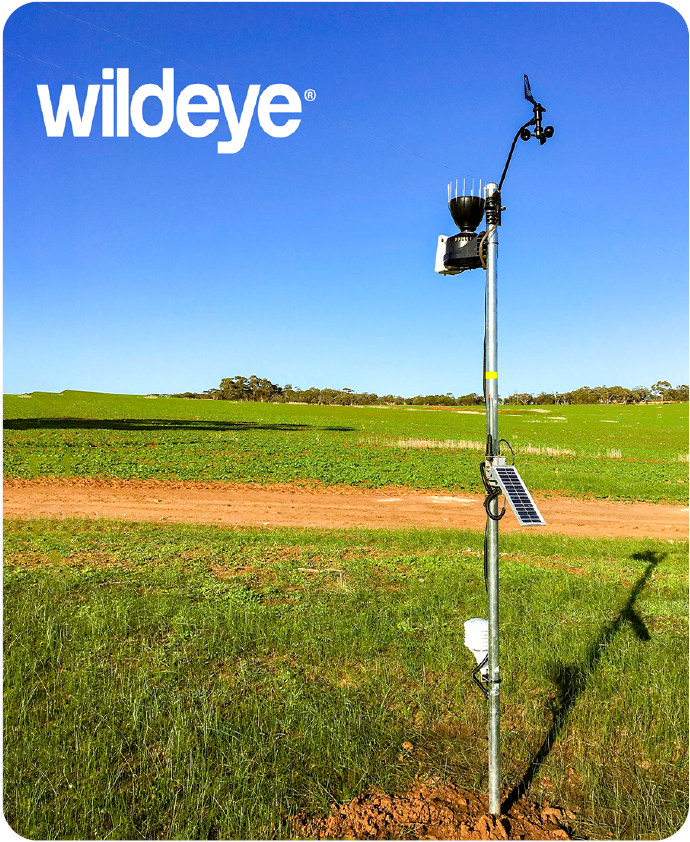

Standard Weather Station, WA, Australia

Components

  • Temperature & humidity sensor with heat shield

  • Tipping bucket rain gauge

  • Wind speed & direction sensor

  • Solar radiation sensor

  • U-bolts, nuts & junction box parts for wiring and installing all sensors onto mounting pole

  • Wildeye 4G IoT telemetry device

  • Solar panel with Wildeye mounting bracket

  • Outdoor 3dB Antenna, 5m/16ft extension for optional elevation

Part

Product Code


Wildeye Data Logger

WILD-M-R-NCCS-NAS-xxx

(Where xxx = SIM type)


Interface box to Logger

ACC-EXP-D


Wind Sensor

ACC-SEN-WIND-6410-S-P


Solar Radiation Sensor (with mounting bracket)

ACC-SEN-SOLAR-6450-S-P

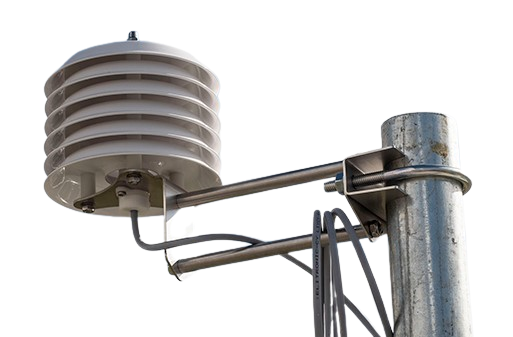

Wildeye Temperature and Humidity Probe

ACC-EXP-EE060


Radiation Shield

ACC-SHIELD-DAVIS


3dB Antenna

ACC-ANT-EXTER-700-3DB-0M3

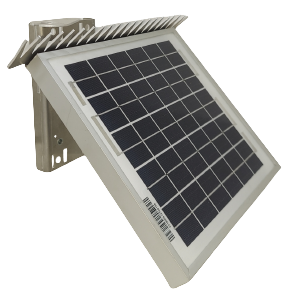

Solar Panel

ACC-SOLBRACKET-JC-5W


Self-Tipping Rain Gauge

ACC-SEN-RAIN-6466M-S-P


Agronomic Indices

The Standard Weather Station comes with the following agronomic indices built-in:

Parameter

Detail

Evapotranspiration

Penman-Monteith equation

Delta-T

To inform spraying decisions

Fire danger index

According to the McArthur Grasslands equation

Chill Portions

Using the Dynamic chill model

Growing Degree Days

Using variable base temperatures

Installation

Installation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation.

The Standard Weather Station solution install instructions are provided here, or contact Wildeye’s network of experienced staff and distribution partners for installation assistance.

Connectivity

Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks. Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.

Software & Data Access

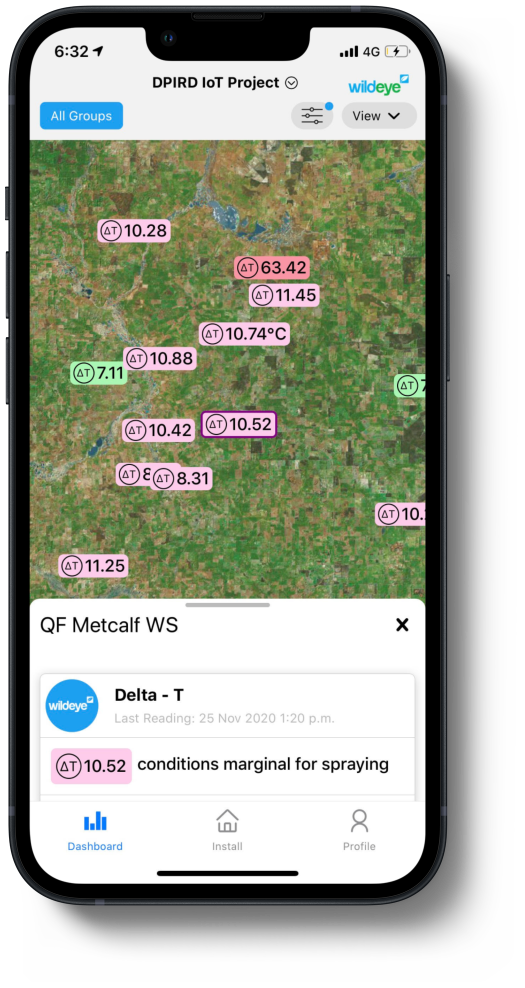

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.

Support

Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.

Standard Weather Station Specifications

Parameter

Specification

Data Upload Frequency

5-minute standard

(Automatic turn-down during off-peak season)

Data Sampling Frequency

15 minutes standard

5 minutes for temperature monitoring with alerts configured

Water Protection Level

IP67 for General Components *

IP65 for Temperature/Humidity Sensor

* all package components must be combined and assembled correctly

* The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored.

Rainfall Resolution

0.2mm resolution/15 minute

Rainfall Collector size

214 cm2

Rainfall Accuracy

±5 % up to 50 mm/hr

Windspeed Range

1 to 200 mph, 1 to 173 knots, 0.5 to 89 m/s, 1 to 322 km/h

Windspeed Accuracy

±2 mph (2 kts, 3 km/h, 1 m/s) or ±5%, whichever is greater

Windspeed Resolution

1 mph (1 knot, 0.1 m/s, 1 km/hr)

Wind Direction Range

0° to 360° or 16 compass points

Wind Direction Accuracy

±7°

Wind Direction Resolution

1° (0° to 355°), 22.5° between compass points

Solar Radiation Range

0 to 1800 W/m2

Solar Radiation Accuracy

±90 W/m2

Solar Radiation Resolution

1 W/m2

Temperature Range

-40°C to +60°C

Temperature Accuracy

±0.5°C (@ +20°C)
±0.7°C (@ +0°C)

Temperature Resolution

0.003°C

Humidity Range

0 - 100% RH

Humidity Accuracy

±2.5% RH (@ +20°C)

Humidity Resolution

0.003%
