Wildeye Antenna Selection

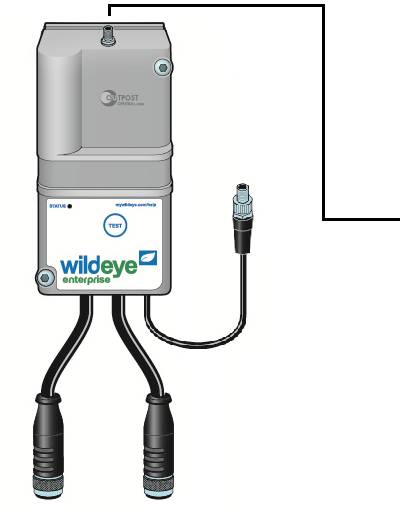

Connect an antenna to your Wildeye using the standard female SMA connector located on the top of the Wildeye case. The correct antenna should be chosen for your country and mobile operator, as well as the desired antenna gain. For a full list of standard antenna options & accessories, jump further down this page to Standard Wildeye Antenna Options.
Antenna Plug | Function |

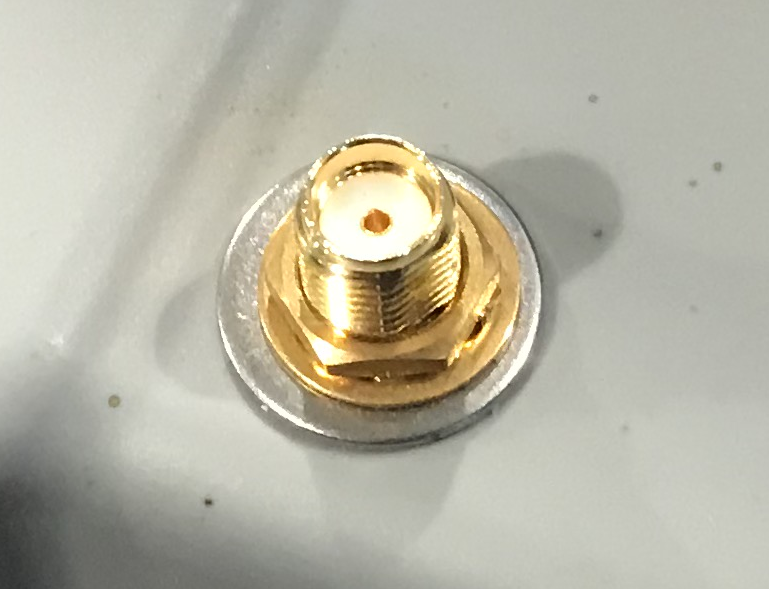

Attach your selected antenna here. Antenna must have MALE SMA connector. |
Antenna Selection Guidelines
Wildeyes are supplied by default with the correct stubby antenna for your country and mobile operator.
Stubby antennas will generally operate fine in urban environments with reasonable signal strength
For locations with poorer signal strength, request an antenna with larger gain.
Antenna height above ground-level makes a big difference - it can often be better than using a larger gain antenna. For improved height, choose an antenna with a longer lead to allow the antenna to be elevated.
Standard Wildeye Antenna Options
Product Code | Image | Description | Application |

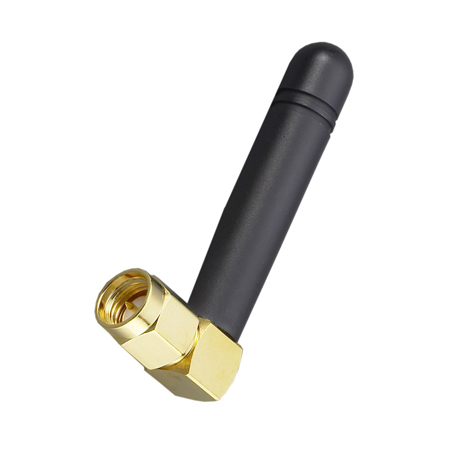

ACC-ANT-STUB-MULTI-AG111S-RA ACC-ANT-STUB-MULTI-AG112-ST | Antenna LTE 4G Stubby SMA-Male 700 to 2700 MHz. Right-angle and straight versions available. | Default antenna supplied with a Wildeye. Suitable for indoor or outdoor applications in areas with reasonable cellular coverage. | |

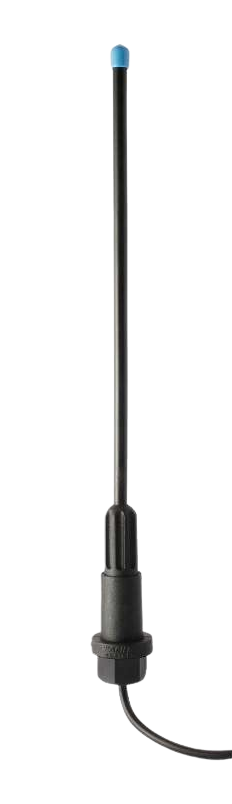

ACC-ANT-EXTER-700-3DB-0M3 ACC-ANT-EXTER-700-3DB-1M5 ACC-ANT-EXTER-700-3DB-5M | 700MHz 4G Antenna, waterproof, with R/A bracket and 0.3m cable, SMA connector with rubber boot [USA] | Standard exterior antenna for areas with average to poor signal. Available in 3 different lead lengths to allow antenna to be elevated to improve signal. | |

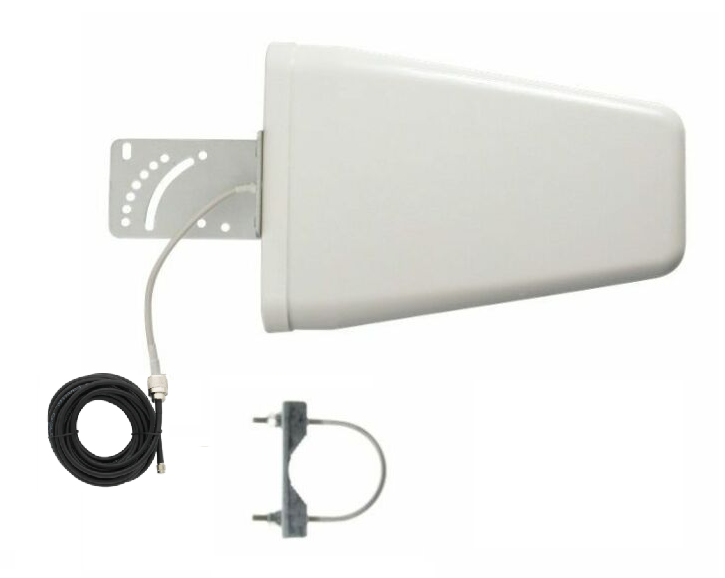

ACC-ANT-YAGI-MULTI-8/10DB-6M | Yagi Directional Antenna for 3G/4G Wildeye, Wide Band, 50ohm with 6m (20ft) cable - 11.42 x 8.27 x 2.56 700-800 MHz: 7.3 dB | Exterior antenna designed for very poor signal areas. Antenna must be pointed at the local cellular tower, and elevated as much as possible. Contact your local Wildeye representative for advice on antenna orientation. | |

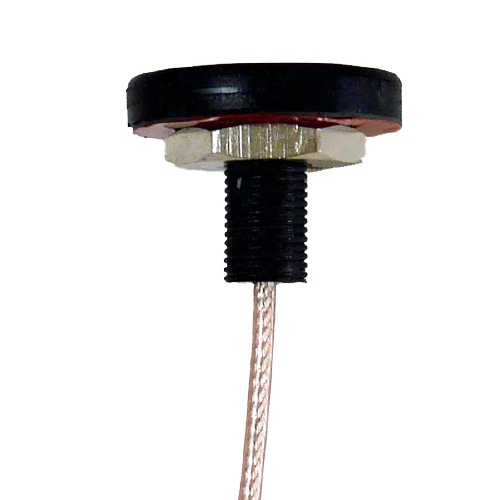

ACC-ANT-MANHOLE-MULTI-2DB-1M | 2.14dBi 3G/4G (700-960MHz / 1700-2100MHz / 2500-2700MHz) 1m SMA (m) RG174 cable | Standard option for installation in manholes or underground environments where the antenna must be flush with the surface. |
International cell frequencies
See Cellular connectivity & SIM cards | International-cell-frequencies
