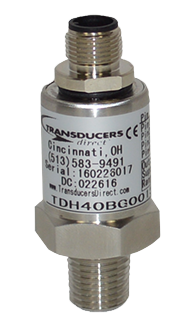

ACC-SEN-TWEQ4B020003-xx Pressure Transducers

Part Numbers

• P00574-01 - ACC-SEN-TWEQ4B020003-0M

• P50974-01 - ACC-SEN-TWEQ4B020003-EXT-2M

• P50975-01 - ACC-SEN-TWEQ4B020003-EXT-3M

• P50976-01 - ACC-SEN-TWEQ4B020003-EXT-5M

Product Description

Pressure Transducer, 4-20mA output, 8-28VDC Supply, 0-200PSI range, 1/4 NPT Male connection, M12 Connector, 1% Accuracy TWEQ4B020003.

Pinout

M12 pin Core colour Function

• M12 pin 1 - Power

• M12 pin 2 - Not connected

• M12 pin 3 - 4-20mA

• M12 pin 4 - Not connected

• M12 pin 5 - Not connected

Compatible Loggers

Wildeye data-loggers & expanders with the following connector types are compatible with this sensor:

• NACS

Manufacturers documentation

Scan to add sensor in app
