ACC-SEN-SUBM-ABS-S3-D10M-C11M EasyLevel sensor

Part Number - Code

P51288-01 - ACC-SEN-SUBM-ABS-S3-D10M-C11M

Product Description

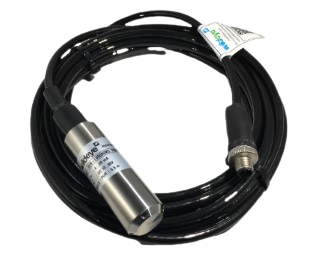

Wildeye EasyLevel submersible pressure sensor.

• Absolute pressure sensor, max. ~10m H2O @ 1000hPa atmospheric pressure

• 95kPa-193.06kPa (absolute) @ 0.5% FS

• 4~20MA

• 12~30VDC

• 11m PUR Cable

• Oring sealed

• 316SS

• Fitted with M12 connector

Pinout

M12 pin Core colour Function

• M12 pin 1 - Red - Power

• M12 pin 2 - Not connected

• M12 pin 3 - Green - 4-20mA

• M12 pin 4 - Bare - GND

• M12 pin 5 - Not connected

Tech specs

Power draw = 20mA max @ 12V

Cable & Connector

Cable type: PUR

Cable length: 11m

Connector type: M12 5-pin

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

• NACS

Manufacturers documentation

Scan to add sensor in app
