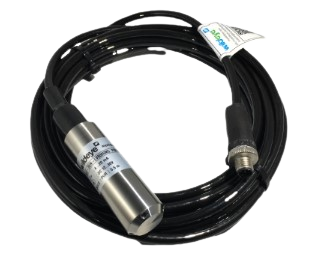

ACC-SEN-SUBM-ABS-S3-D5M-C5M5 EasyLevel sensor

Part Number - Code

P01232-01 - ACC-SEN-SUBM-ABS-S3-D5M-C5M5

Product Description

Wildeye EasyLevel submersible pressure sensor.

• 95kPa-144.03kPa (absolute) @ 0.5% FS

• 4~20MA

• 12~30VDC

• 5.5m PUR Cable

• Oring sealed

• 316SS

• Absolute pressure sensor, max. ~4.49m H2O @ 1000hPa atmospheric pressure

• Fitted with M12 connector

Pinout

M12 pin Core colour Function

• M12 pin 1 - Red - Power

• M12 pin 2 - Not connected

• M12 pin 3 - Green - 4-20mA

• M12 pin 4 - Bare - GND

• M12 pin 5 - Not connected

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

• NACS

Manufacturers documentation

Scan to add sensor in app
