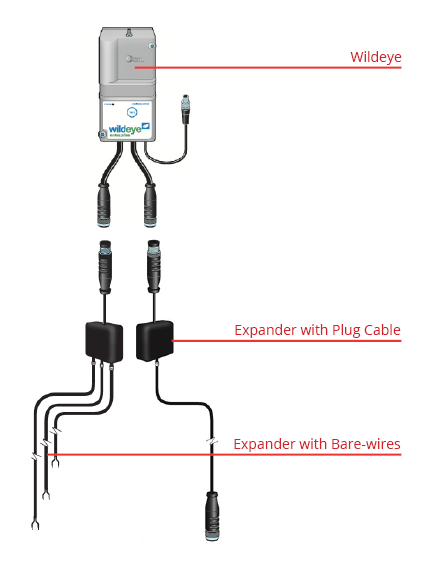

Expanders are available to increase the number and type of meters/sensors that can be attached to a Wildeye.
Expanders can be attached to any Wildeye cable containing the "S" (SDI12) input channel type.
Expanders enable the following additional inputs types:
-
Current loop (A)
-
Voltage (V)
-
Resistance (O)
-
Digital dry-contact / Tamper (D)
-
Watermark channels (W)
-
MODBUS (RS485 and RS232)
-
Siemens MAG8000
-
Aquamonix I500
-
Aquamonix I300
To configure the expander on your wildeye datalogger, use the Add Expander function or scan the QR code in the smartphone app.
Standard Expander Options
|
Image |
Product Code |
Inputs |
Application |
|

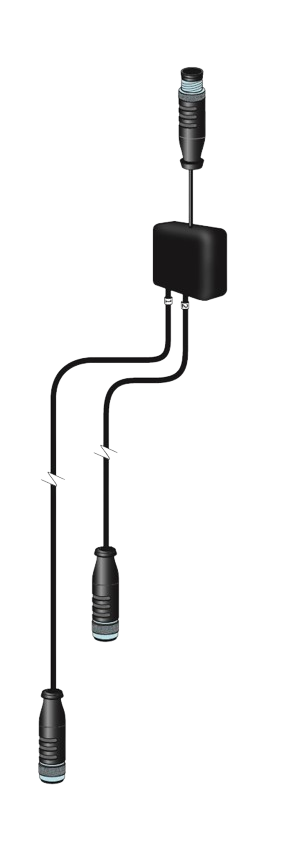

ACC-EXP-2MA
|
2x M12 connectors ea containing:
|
Add 2 meters/sensors with analogue current outputs to your Wildeye |
|
ACC-EXP-3MO
|
3x M12 connectors ea containing:
|
Add 1 meter/sensor with resistance (eg NTC temperature probe) to your Wildeye |
|

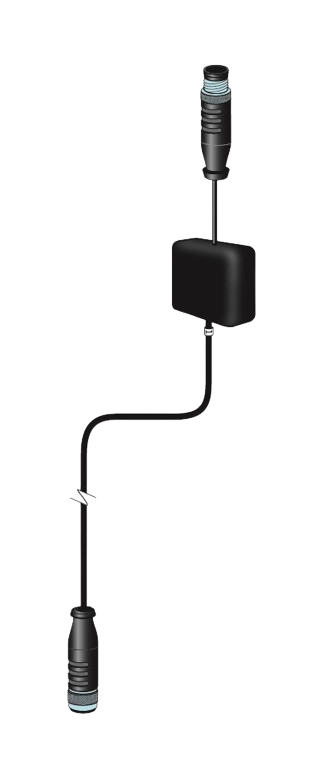

ACC-EXP-MV
|
1x M12 connector containing:
|
Add 1 meter/sensor with analogue voltage output to your Wildeye |
|
|

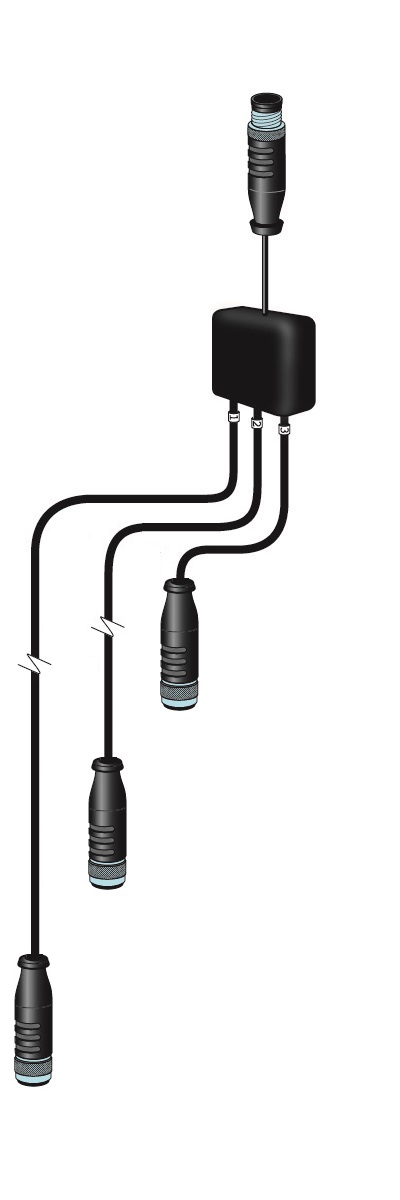

ACC-EXP-3MV
|
3x M12 connectors containing:
|
Add 3 meters/sensors with analogue voltage outputs to your Wildeye |
|

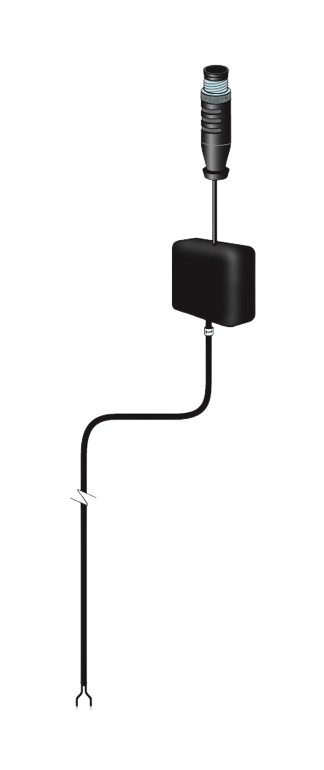

ACC-EXP-LD |
1x flying lead containing:
|
Add a Digital (open/close) input, for meters and sensors with relay/alarm outputs. Note: This is not a pulse counter input. |
|
|
**New for 2024** |
1x M12 connector containing:
|
Adds MODBUS over RS485 to your Wildeye |
|
|
**New for 2024** |
1x M12 connector containing:
|
Adds MODBUS over RS232 to your Wildeye |
|

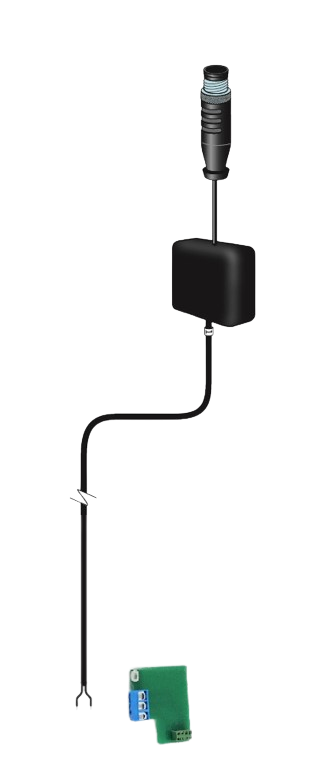

ACC-EXP-MAG8000 **New for 2024** |
TTL to MAG8000 meter (Flying lead + interface PCB) |
Enable digital connection to Siemens MAG8000 water meter. Also enables connection to meter pulse output. |
|

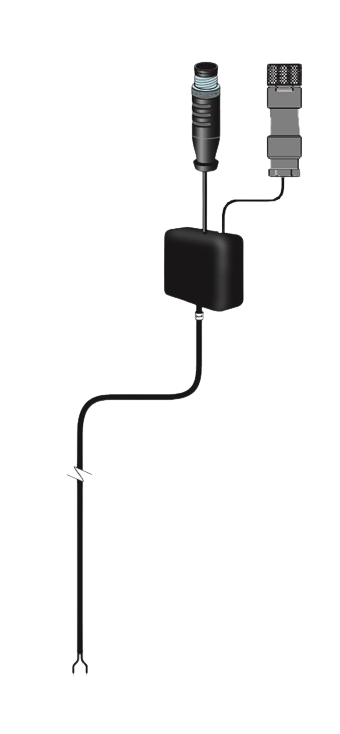

ACC-EXP-I300 **New for 2024** |
I300 (female rectangular plug) Charge line from I300 |
Enable digital connection to Tyco I300 water meter. Also charges wildeye battery from meter power output. |
|
|
**New for 2024** |
I500 (Flying lead) Charge line from I500 |
Enable digital connection to Tyco I500 water meter. Also charges wildeye battery from meter power output. |
|
|

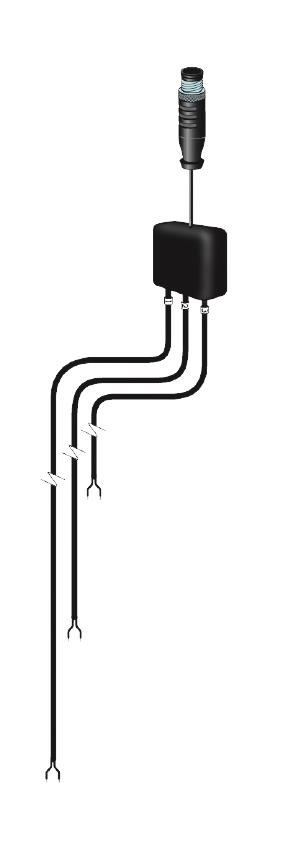

ACC-EXP-3LW |
3x flying leads ea containing:
|
Add up to 3 x Watermark soil tension sensors. |
Notes:
-
M12 connections - Waterproof only if sealed correctly during install
-
Flying lead connections - Intended specifically for meter/sensors with terminal block connections
