ACC-EXP-3MV

Part Number

P51272-01

Product Description

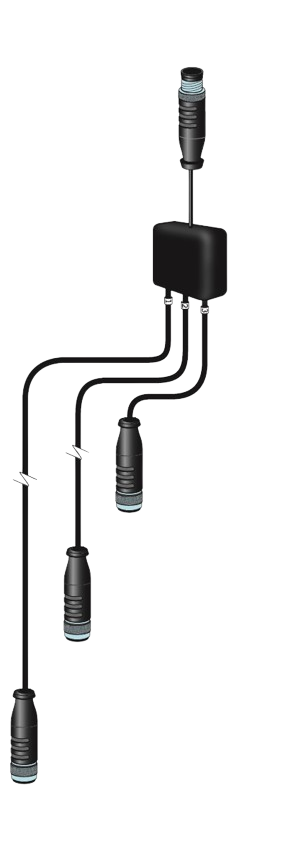

Wildeye SDI12 Expander - 3x 0-5V Analogue inputs via 3x M12 connectors on 300mm cables.

Pinout

Each M12 MV plug:

• Pin 1 (Brown) - 12V SPO

• Pin 2 (White) - N/C

• Pin 3 (Blue) - 0-5V

• Pin 4 (Black) - GND

• Pin 5 (Grey) - N/C

Tech specs

Power draw = 1.3mA (excluding sensor draw)

Cable & Connector

Cable type: PUR

Cable length: 0.5m

Connector type: M12 5-pin

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

• NACS

Scan to add sensor in app
