Acclima Soil Moisture Sensor
The Acclima Soil Moisture Sensor uses SDI-12 interface. This means that the connecting Wildeye must have an "S" on the cable you're using. The list at the bottom will indicate which Wildeye's the Acclima pinout convention is compatible with.

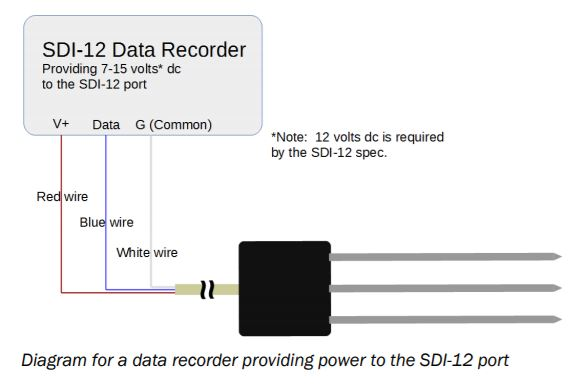

wildeye Pin Number | Acclima Soil Moisture Sensor |
Pin 1 | V+(Red) |
Pin 2 | Data(Blue) |
Pin 3 | None |
Pin 4 | Ground(White) |
MAS
MCS
MDS
NSVV
NAOS5
NAAS
NCCS5
