Premium Non-Contact Level Monitoring

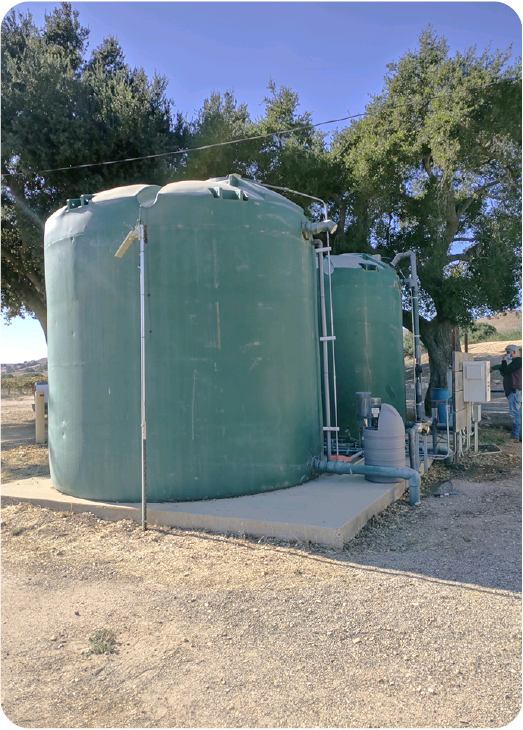

Real-time Radar Level Monitoring for Waste-water, Chemical Tanks & Grain Silos

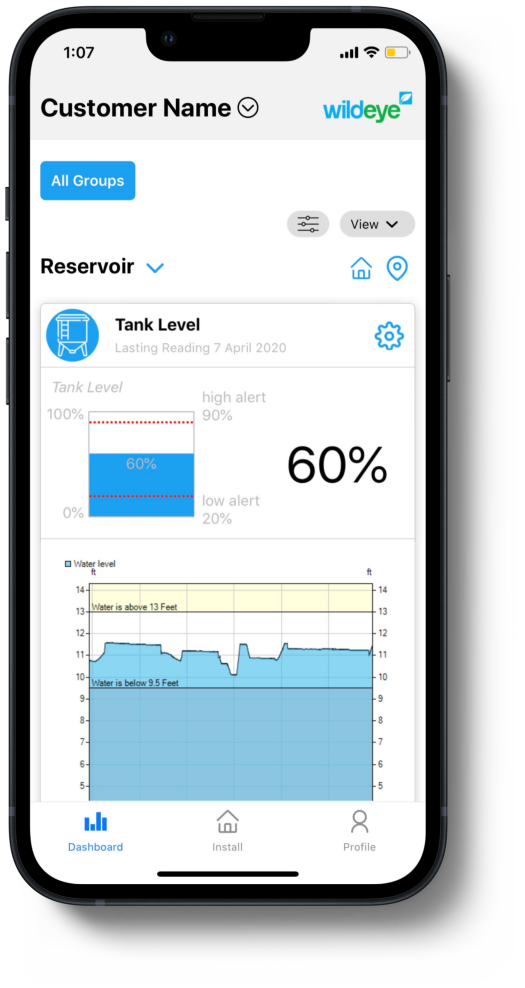

  • The Wildeye Premium Non-Contact Level solution enables viewing levels of chemical tanks, waste-water tanks, or grain silos directly on your phone and in high resolution.

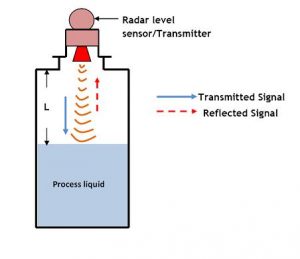

  • For liquids that may contain foam, vapours, powders, granules or dust, the Premium Non-contact solution includes a quality radar level sensor that offers superior performance for these tough applications.

  • SMS or email alerts can be triggered when a target threshold is crossed.

  • The components of the Non-Contact level solution are selected for their rugged waterproof construction to allow for long-life outdoor installation.

  • Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported.  Scroll down to view complete specifications.


Components:

  • Non-contact radar sensor with 8m (26.2 ft) depth range and 1m (3.3ft) cable length (contact Wildeye for other ranges & lengths)

  • Wildeye 4G IoT telemetry device

  • Solar panel with Wildeye mounting bracket

  • Outdoor 3dB Antenna, 5m extension for optional elevation

Installation

Installation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation. The tank level sensor is installed at the top of the tank and must be installed on a level mount or surface. For complete installation instructions refer to this link.



Applications:

  • Grain Silos

  • Potable Water storage tanks

  • Chemical Tanks

  • Water treatment, pump stations or rain overflow basins

  • Water tanks, channels & reservoirs with surface bubbles or vapor issues

Connectivity

Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks.

Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.

Software & Data Access

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.

Support

Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.

Specifications:

Parameter

Specification

Data Upload Frequency

2-Hourly Standard

(Up to maximum 5-minute for real-time option)

Data Sampling Frequency

30 minutes standard

Water Protection Level

IP67 (Radar sensor is IP66)

- all package components must be combined and assembled correctly

- The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored.

Radar Sensor Operating Temperature Range

-40°C to +60°C (-40°F to +140°F)

Radar Sensor Range

0-8 metres (0-26.2ft)

Radar Sensor Accuracy

±6.26 cm (±2.46 in) *

* From 0°C to +40°C. Includes all errors from radar sensor and Wildeye sensor channel

Radar Sensor Size

Thread: G1½ / G1, 1½ NPT / 1 NPT, R1½ / R1

Body Diameter: 76mm (3in)

Radar Sensor Cable Length

1m (3.3ft)

Wildeye Hardware

Wildeye 4G IoT telemetry device
