Wildeye Reservoir & Pond Monitoring

Real-time Level Monitoring for Pond, Reservoirs, Ditches & Canals

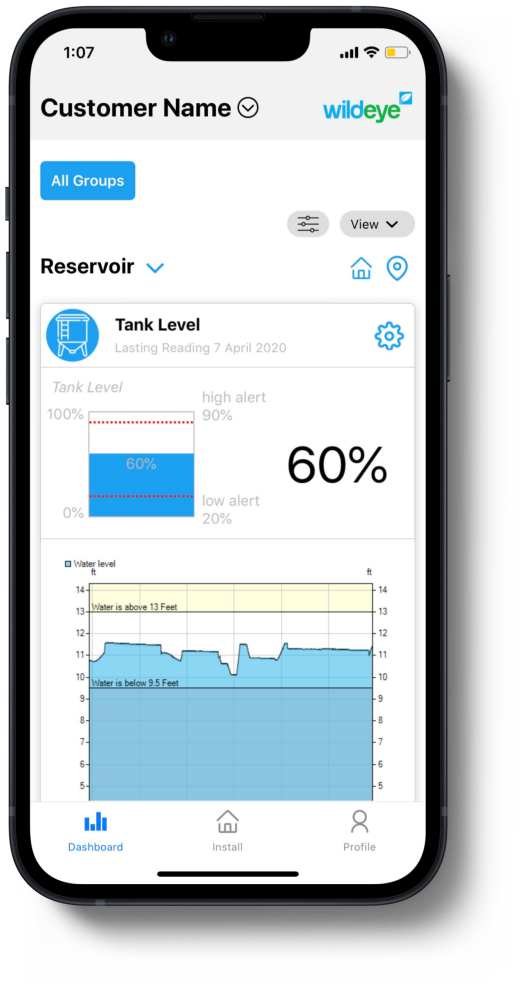

  • Wildeye Reservoir & Pond monitoring enables automated recording and viewing of your pond or reservoir level directly on your phone and in high resolution.

  • The products are designed for simple installation with a range of depth and cable length options.

  • SMS or email alerts can be triggered when a target threshold is crossed.

  • In addition, pond or reservoir ratings tables may be loaded to allow automatic conversion to water volumes.

  • The components for Reservoir & Pond Monitoring are selected for their rugged waterproof construction to allow for long-life outdoor installation.

  • Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported.  Scroll down to view complete Wildeye Reservoir & Pond Monitoring Package Specifications

Components:

  • Stainless steel submersible depth gauge with standard ranges from 5m to 36m (contact Wildeye for other ranges)

  • Wildeye 4G IoT telemetry device

  • Solar panel with Wildeye mounting bracket

  • Outdoor 3dB Antenna, 5m extension for optional elevation

Product Code

Description


WILD-M-R-NACS-NACS

Wildeye 4G IoT telemetry device


ACC-SEN-SUBM-ABS-S3-D5M-C5M5

Submersible Pressure sensor

  • 5m depth, 5.5m cable


ACC-SEN-SUBM-ABS-S3-D10M-C11M

Submersible Pressure sensor

  • 10m depth, 11m cable


ACC-SOLBRACKET-JC-5W

Solar panel with Wildeye mounting bracket


ACC-ANT-EXTER-700-3DB-0M3

3dB High-gain antenna with 0.3m cable (optional)


ACC-ANT-EXTER-700-3DB-5M

3dB High-gain antenna with 5m cable (optional)


Installation

Installation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation.

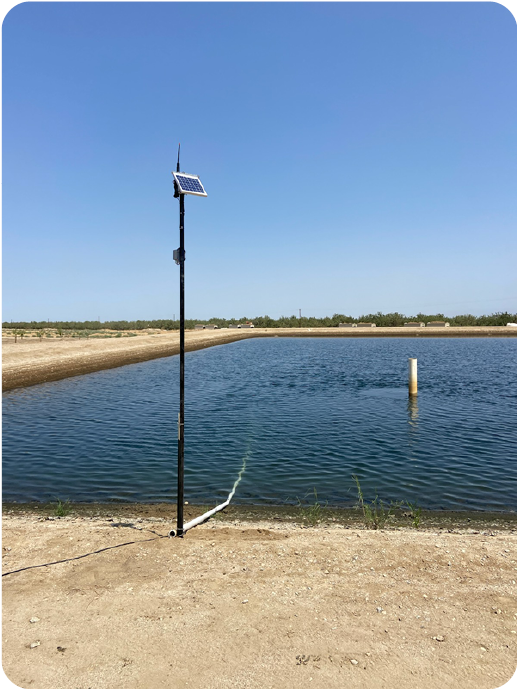

The submersible gauge is lowered into a suitable length of slotted PVC tube or other suitable tube arrangement for fixing the sensor in place.

For complete installation instructions refer to this link.



Applications:

  • Reservoirs

  • Ponds & Lakes

  • Irrigation ditches & canals

  • Weir Flow (see Weir Flow Package)

  • Dams

Connectivity

Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks.

Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.

Software & Data Access

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.

Support

Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.

Specifications:

Parameter

Specification

Data Upload Frequency

2-Hourly Standard

(Up to maximum 5-minute for real-time option)

Data Sampling Frequency

30 minutes standard

Water Protection Level

IP67 (Depth gauge is IP68)

- all package components must be combined and assembled correctly

- The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored.

Depth Gauge Operating Temperature Range

-18°C to +66°C (0°F to +150°F)

Depth Gauge Ranges

see package options below

Depth Gauge Accuracy

see package options below

Depth Gauge Size

Diameter: 25.4mm (1in)

Length: 170.26mm (6.7in)

Depth Gauge Cable Length

Wildeye Hardware

Wildeye 4G IoT telemetry device
