Water Pressure Monitoring
Water Pressure Monitoring for Irrigation System Performance Management
The Wildeye Water Pressure Monitoring solution provides a cost effective and convenient way to monitor irrigation system performance.
On its own, the pressure monitoring allows irrigation managers to monitor irrigation time-of-use as well as check for low pressure.
In conjunction with a flow meter monitor at the pump, a water pressure monitoring solution can be located after each irrigation valve or set, allowing total irrigation volume to be calculated automatically for each set.

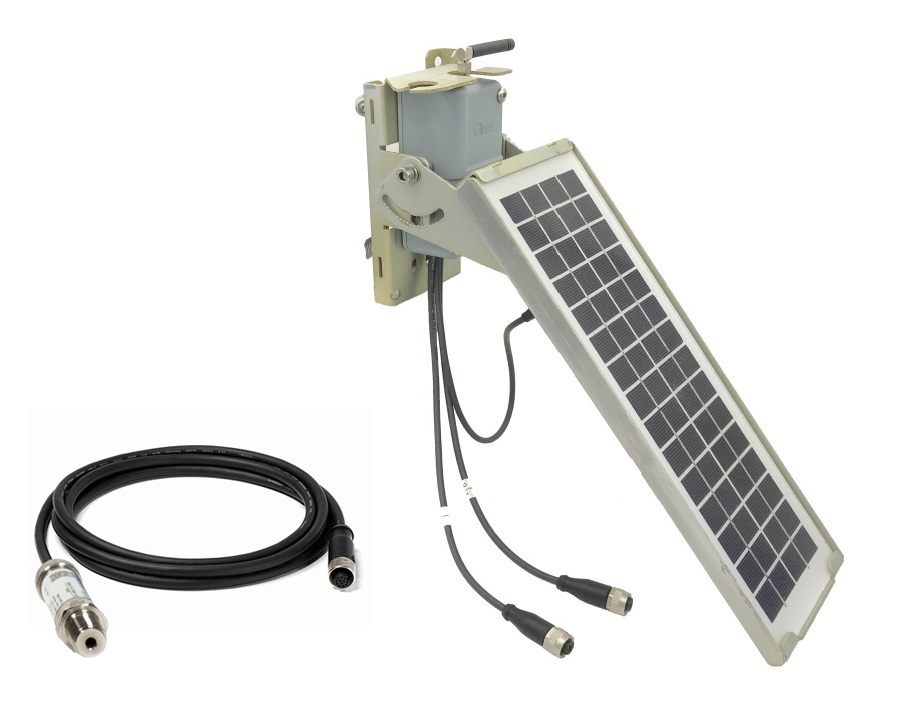

Pictured: Water Pressure components.
Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported. Scroll down to view complete specifications for the Water Pressure Monitoring solution.
Components:
Quality stainless pressure gauge with threaded G¼ A female (AU/NZ) or ¼” NPT (USA) for wetted connection to irrigation line
Solar panel with Wildeye mounting bracket
Outdoor 3dB Antenna, 5m extension for optional elevation
Installation
Installation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation.
The pressure gauge can be installed on any irrigation dripline or pipe with threaded port with the use of appropriate size T-junction and off-the-shelf adapters if needed.
Click here for pressure Gauge installation instructions.
Applications:
Irrigation time-of-use monitoring
Irrigation system performance & fault monitoring including blockages, leaks and filter clogs.
Set SMS/email alerts for low or high pressure thresholds

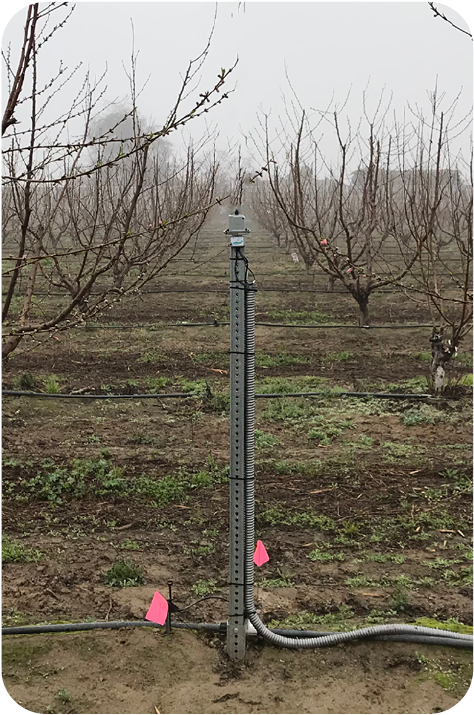

Irrigation dripline Monitoring, Reedley, CA, USA
Connectivity
Web-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks.
Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses.
Software & Data Access

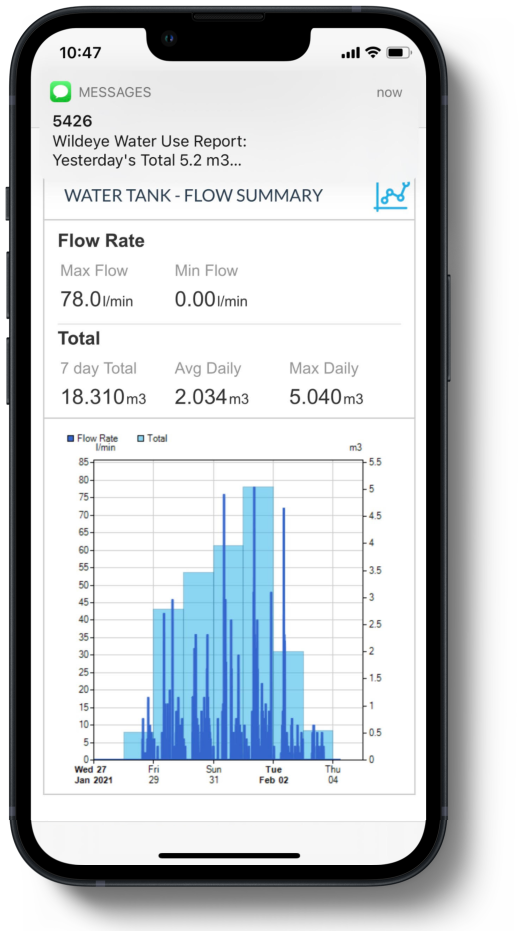

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.
Support
Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.
Water Pressure Solution Specifications
Parameter | Specification |
Data Upload Frequency | 2-Hourly Standard (Up to maximum 5-minute for real-time option) |
Pressure sensor measurement frequency | 30 minutes standard (all soil probe & pressure parameters) |
Protection | IP68 - all package components must be combined and assembled correctly - The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored. |
Pressure Transducer | AU/NZ Interface: G¼ A female (AU/NZ), ¼” NPT (USA) Range: 0 - 200 psi (0 - 13.8 bar) Accuracy: 1.5% (Includes Wildeye 4-20mA channel error, 0 - 50 Degrees) |
