Watermark Soil Tension Monitoring
Real-time Data from Watermark Soil Tension Sensors for Seasonal & Annual Crops
Watermark telemetry retrofit solution with optional pressure gauge. | The Wildeye Watermark Telemetry Retrofit solution allows the renowned Wildeye telemetry and software platform to attach to Watermark soil tension sensors. For growers already familiar with reading watermark data & graphs, this Wildeye package offers an ideal low-cost solution for irrigators to view watermark data directly on the Wildeye phone app or desktop login. The rugged Wildeye hardware is small and low profile and well suited to sit below the crop canopy and below the height of most machinery. The package can also be supplied with Watermark sensors pre-wired. |

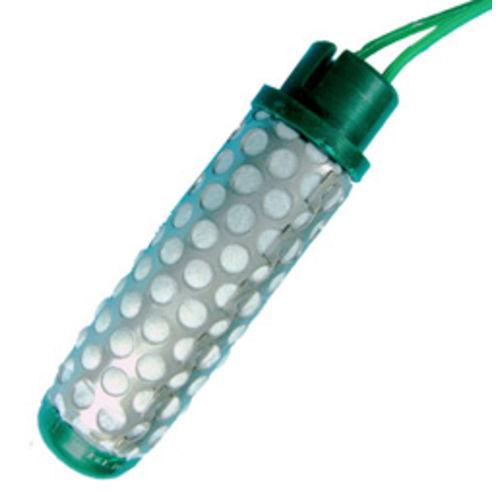

Watermark sensor
Connectivity is managed by the award-winning Wildeye 4G IoT telemetry device. Data is accessible through the Wildeye portal from where it can be viewed and exported. Scroll down to view complete specifications.

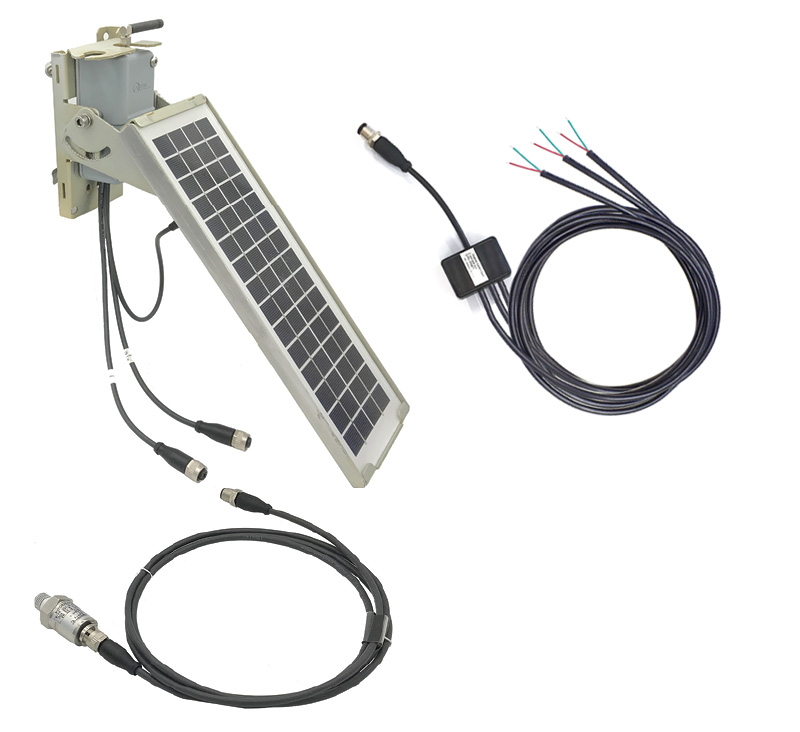

Components:
Part Code | Description | Image |
|---|---|---|
WILD-M-R-NACS-NACS |  | |
ACC-EXP-3LW | Watermark interface adapter for up to 3x Watermark sensors (including scotchlok connectors) |  |
ACC-SOLBRACKET-JC-5W | 5W Solar panel with Wildeye mounting bracket |  |
ACC-ANT-EXTER-700-3DB-5M | Outdoor 3dB Antenna, 5m/16ft extension for optional elevation |  |
InstallationInstallation requires 4G IoT signal is available at site, and the Wildeye phone app must be downloaded and used to capture data during the installation. Wildeye’s network of staff and distribution partners are experienced soil scientists and agronomists, with a fixation on technology to help farmers, and unmatched collective soil moisture probe installation experience. Guidelines for retrofit to installed Watermark sensors are here, installation guide for Watermarks are here, and additional training can be provided to internal staff. |

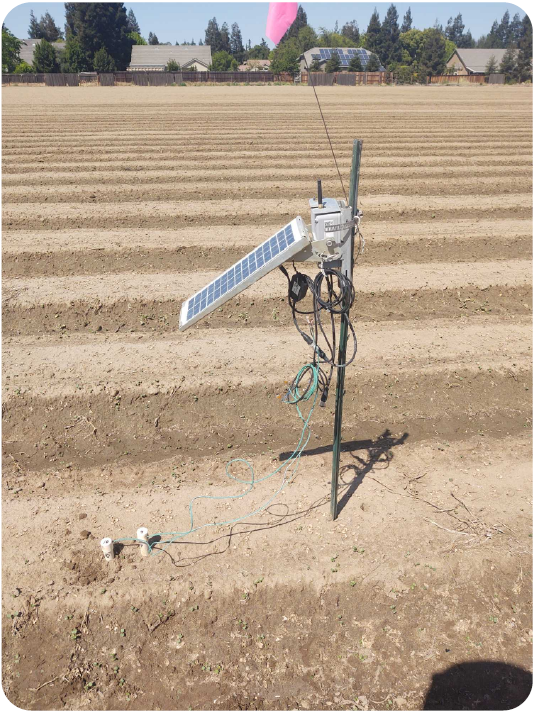

Watermark Soil Tension Monitoring, CA, USA | Watermark's tension sensors are recommended only for crops with generally wetted soil conditions, to remove risk of drying soil creating a disconnection void with the sensor. Applications:
ConnectivityWeb-connectivity uses open-standard Cat-M1 or NB-IoT on 4G cellular networks. Wildeye packages utilize telco-delivered cellular networks to avoid reliance on first-generation radio networks and technologies that are delivered and maintained by small businesses. |
Software & Data Access

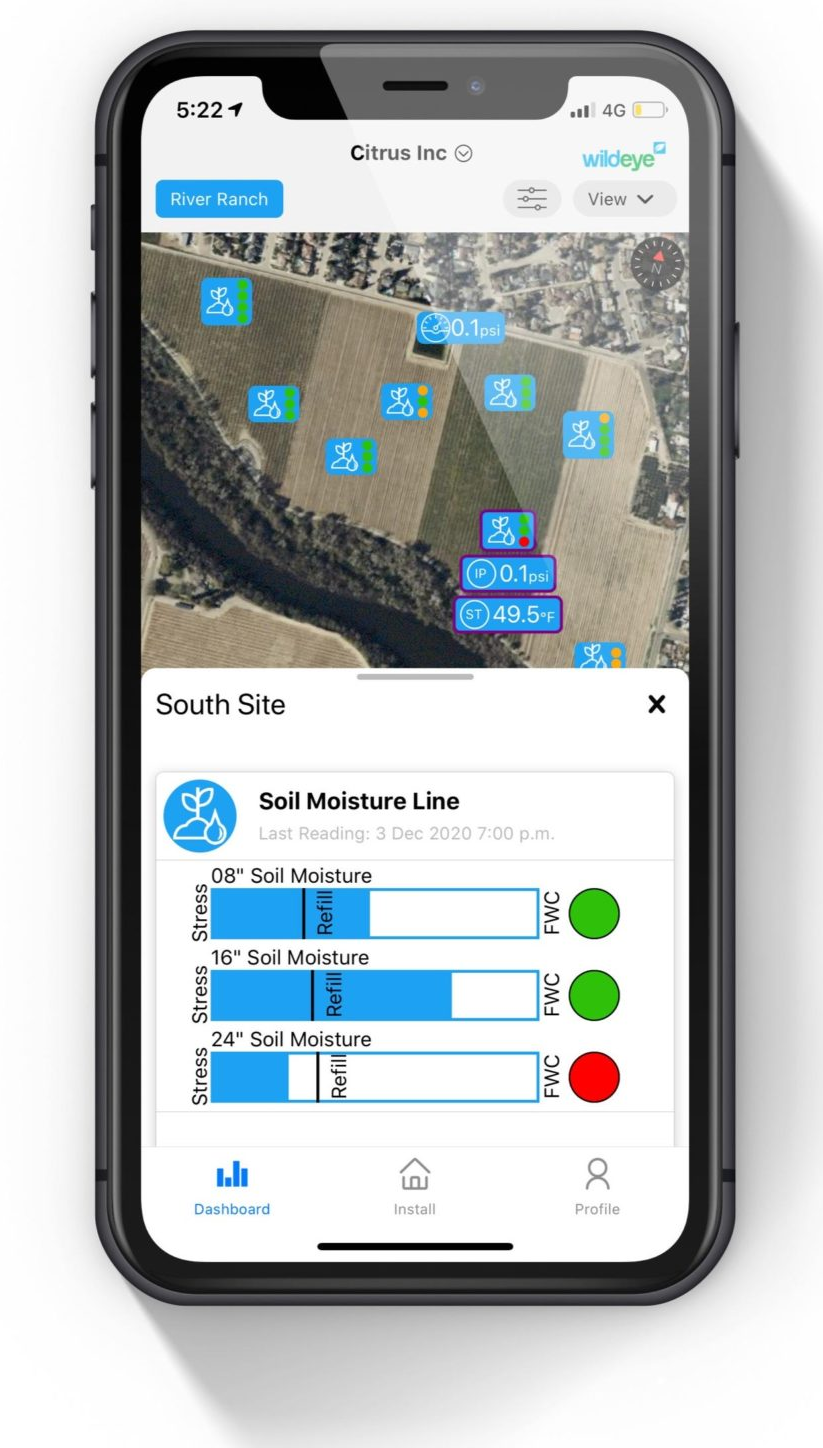

Data from Wildeye products is available on-demand via web services including web-based software, our industry-leading smartphone app, as well as via “push services” such as email and SMS alerts.
Support
Wildeye are the leaders in IoT product support - and with 50,000 IoT devices deployed around the world we have to be! Remote support is included in all Wildeye packages, giving you access to a team of dedicated support professionals located in time zones around the world, to help ensure your IoT installations continue to operate reliably for years to come. We employ industry leading support delivery/ticketing system software to ensure your support requests are followed through to completion in a timely manner.
Specifications:
Parameter | Specification |
Data Upload Frequency | 2-Hourly Standard (Up to maximum 5-minute for real-time option) |
Data Sampling Frequency | 30 minutes standard (all soil probe & pressure parameters) |
Water Protection Level | IP67 - all package components must be combined and assembled correctly - The Wildeye will sample from sensors while submerged but cannot transmit. Sampled data is saved and will be transmitted once transmission is restored. |
Supported Watermark Sensors | Up to 3 |
Optional Pressure Transducer | ¼” NPT Range: 0 - 200 psi Accuracy: 1.5% (Includes Wildeye 4-20mA channel error, 32°F - 122°F) |
Wildeye Hardware |
