Wiring and Connectors

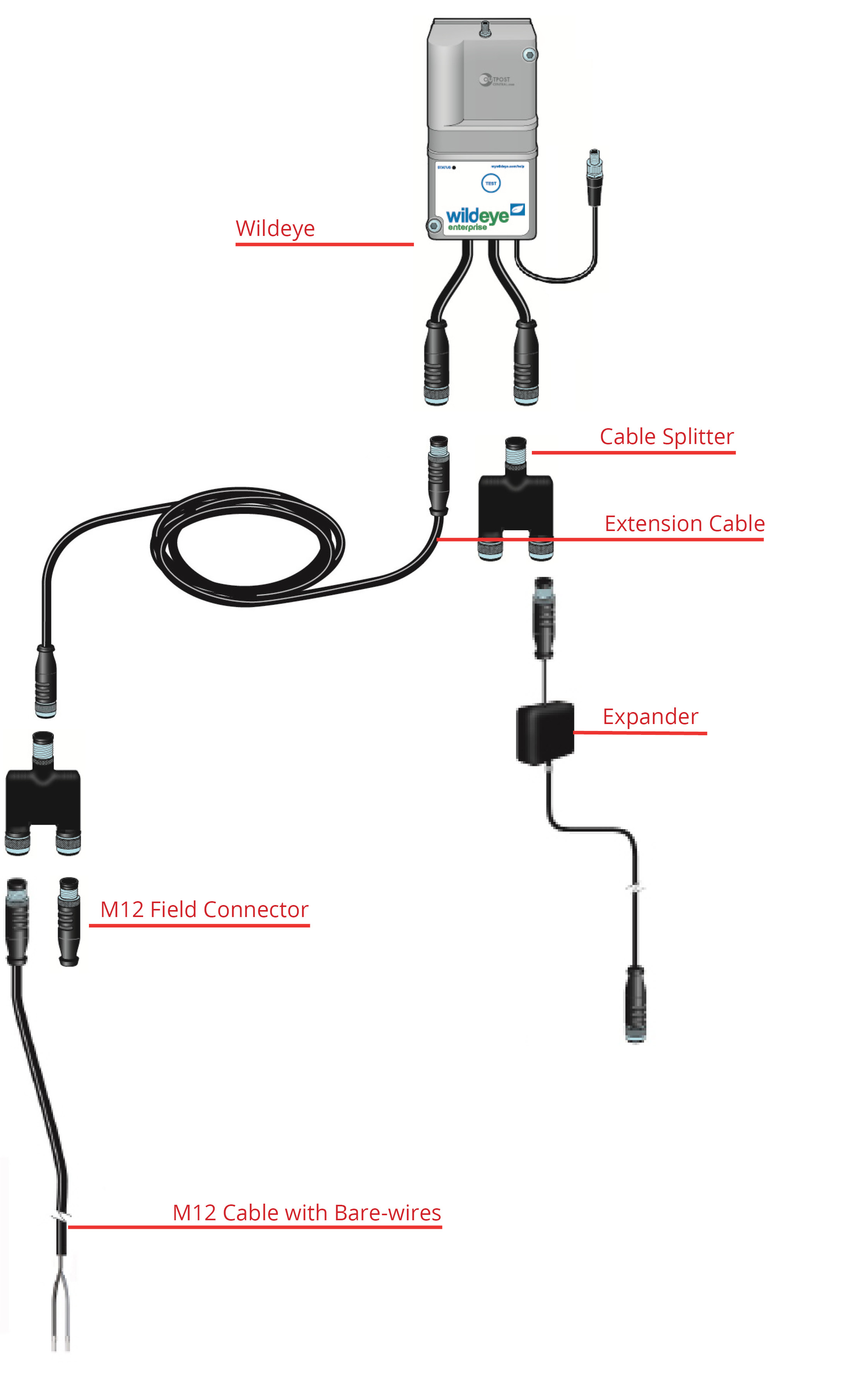

Connect meters & sensors to your Wildeye using a range of attachment accessories as shown in the diagram below.
Power for rechargeable (-R) Wildeye datalogers is via an M8 connector
All input connections to a Wildeye datalogger are via M12 connectors
See pin-out details here: Wildeye Pinout and Dimensions
See important info for installing Field-Connect M12 & M8 connectors
Most meters & sensors available from Wildeye have over-molded M12 connectors pre-attached. If you are connecting to your own meter or sensor, choose between adding an M12 Field Connect connector to the sensor cable, or using M12 Bare Wire accessories to attach your meter/sensor to the Wildeye cable.
Most Standard Wildeye Models have interface cables that contain multiple channels. Use splitter accessories to physically connect multiple meters/sensors to a single Wildeye cable.
If extra cable length is required, choose from a range of off-the-shelf waterproof cable extension options.
If additional channels are required, add an expander module to any Wildeye cable containing an "S" channel.
Meter & Sensor Attachment Options
Product Code | Image | Description | Application |

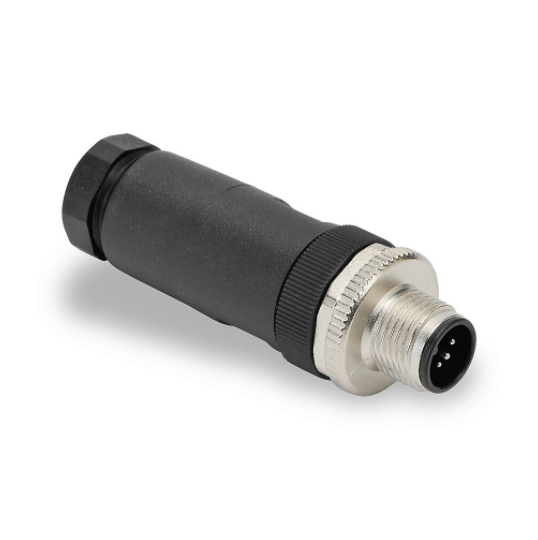

ACC-CON-M12-5POS-M-3 ACC-CON-M12-5POS-M-6 ACC-CON-M12-5POS-M-8 | M12 Field Connect Male, 5-position. Options for cable sizes:
| Wire any meters/sensor with bare wire ends to this field connect. Choose the correct size for the thickness of the meter/sensor cable. Waterproof if sealed correctly during install. | |

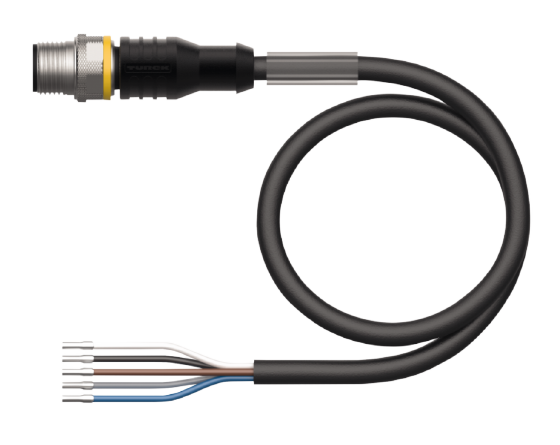

ACC-CAB-M12-M-5 | M12 Bare-Wire Cable: Male M12 5-pos connector on one end and free wires on other. | Wire meters/sensors with terminal block connections to this accessory. The bare wire end is not waterproof unless sealed correctly. | |

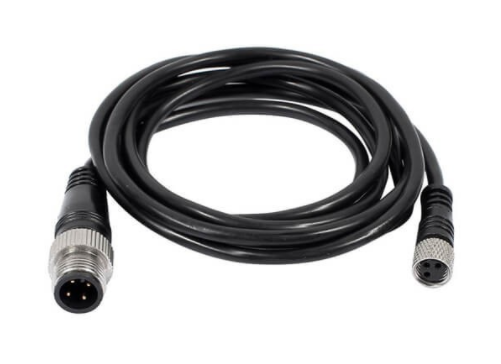

ACC-CAB-M12-EXT-5P-2M ACC-CAB-M12-EXT-5P-3M ACC-CAB-M12-EXT-5P-5M ACC-CAB-M12-EXT-5P-10M ACC-CAB-M12-EXT-5P-15M ACC-CAB-M12-EXT-5P-30M | 5-pos M12 Male to Female PUR black extension Cable. Options for cable length: 2m, 3m, 5m, 10m, 15, 30m | Waterproof cable extensions to extend the distance between the Wildeye and your meter/sensor. | |

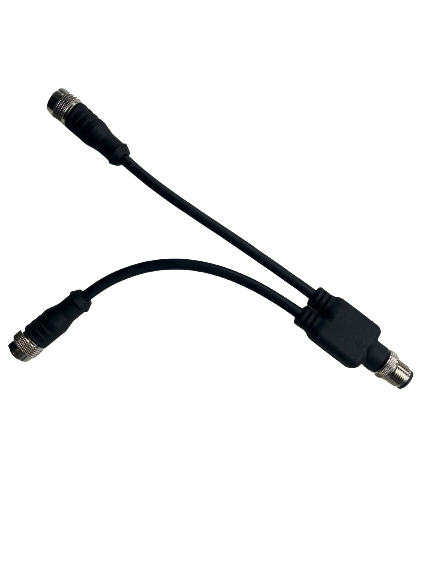

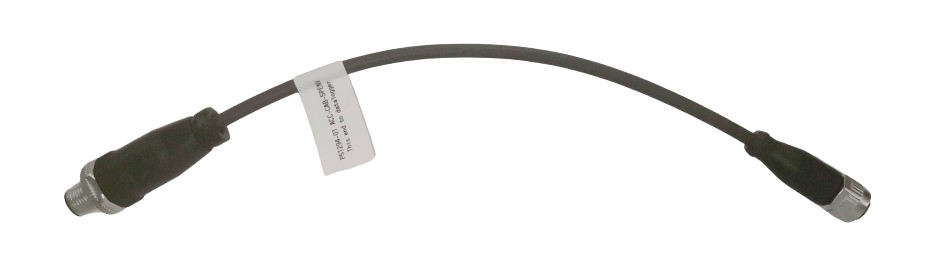

ACC-CON-M12-YSPLIT5 |  | M12 5P Y-Splitter, 1 Male and 2 Female connections | Use this part to attach 2 different meters/sensors to a Wildeye cable. |
5-pin M12 adaptor cable to convert new loggers with counter inputs on Pin 5 to match older sensors with with counter line on Pin 2. | Connecting old 3G pulse-output sensors to new WILD-M loggers | ||
Same as ACC-CAB-5PCOUNT above, but also contains pass-through on SPO, An, & GND. | Connecting old 3G pulse-output sensors to new WILD-M loggers |
