Model Numbering System
The Wildeye datalogger comes in many variants, defined by its product code. Our latest products are all 4G variants and generally you will order product starting with WILD-M (Wildeye with 4G CatM/NBIoT)
The main options you need to select are the POWER (Defines Battery or Rechargeable ) and CABLE options. The CABLE option defines the meters and sensors you can connect to your Wildeye with the external cables and connector plugs.

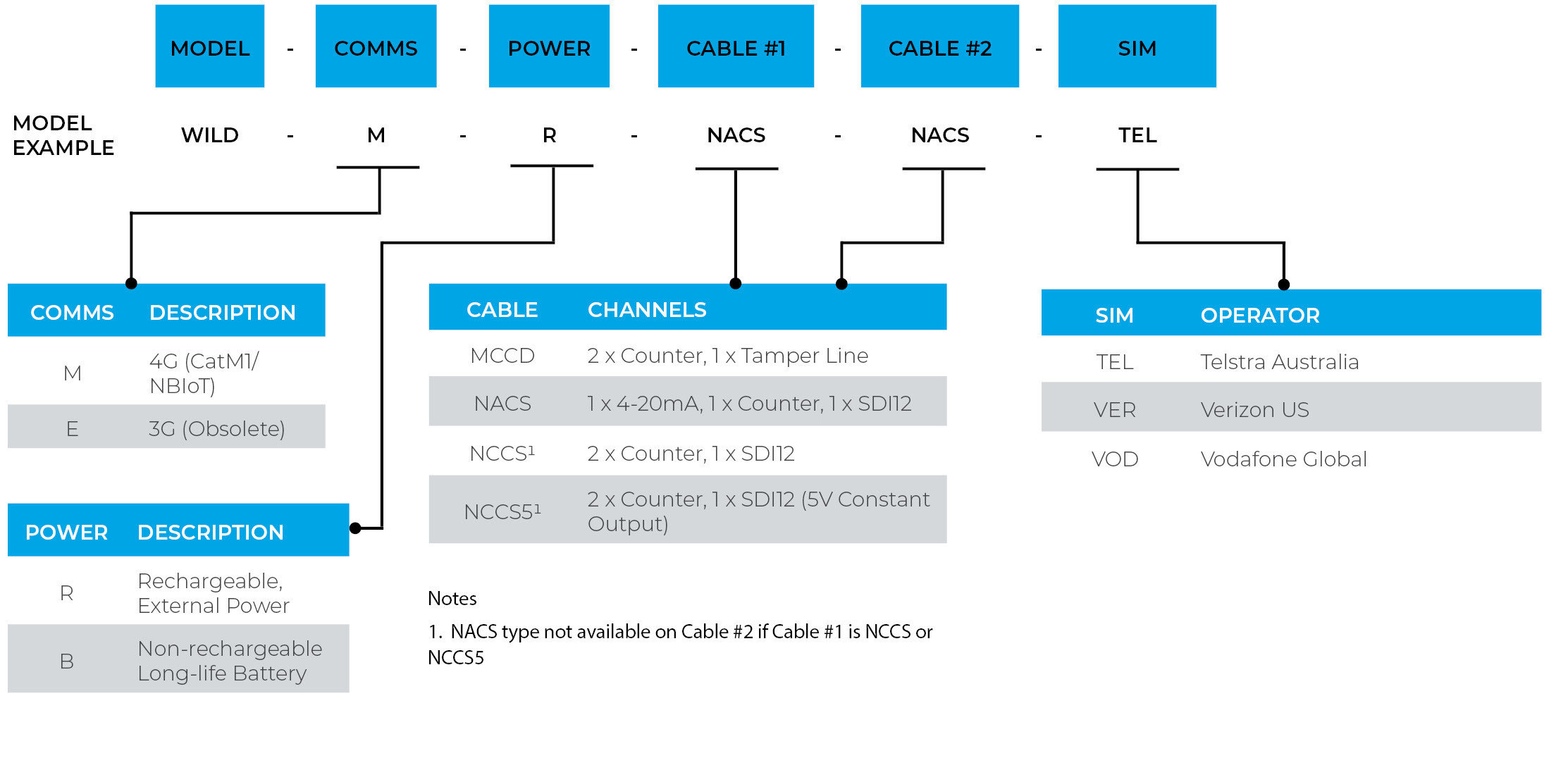

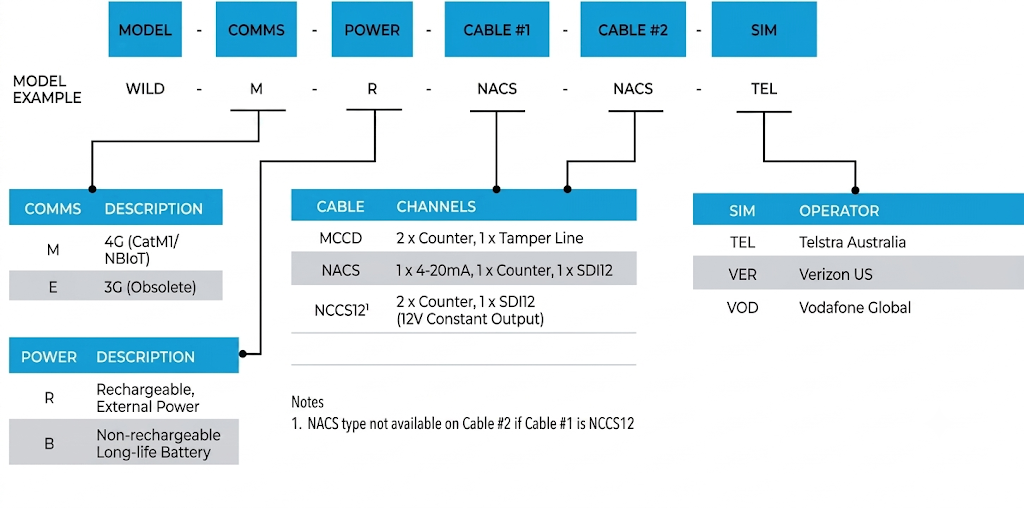

The model numbering system diagram below lists the most common cable variants, or alternatively for a list of the most common Wildeye 4G product variants, jump to Standard Wildeye Models.
COMMS
Wildeye devices currently support 2 cellular radio options: 3G and 4G, although 3G is currently being phased out around the world, and therefore only 4G Wildeye’s are available for purchase.
-E = 3G (UMTS)
-M = 4G (CatM1 or NBIoT)
More info: Cellular connectivity & SIM cards
POWER segment
-R = "Rechargeable" Internal Battery
-B = "Long-life" Internal Battery
Rechargeable Internal Battery
The Rechargeable option is intended to allow the Wildeye to be powered from a solar panel or other external power source such as a DC Power supply or external battery pack, and act as a backup supply in case of power outage. This option is denoted by an "R" in the product code.
More details about the types of available power options can be found on external power supply options article.
Long-life Internal Battery
The Battery version has an internal long life Lithium Primary battery pack. This option can be used in applications where it is not practical to have an external power source. This option is denoted by a "B" in the product code.
CABLE segments
A Wildeye has 1 or 2 physical cables containing one or more channels for attaching meters/sensors. The type of the cable and the channels contained inside it are defined by the Cable Codes.
Standard Cable Code Options for your Wildeye are:
NACS = 1x 4-20mA channel (A), 1x counter channel (C), 1 x SDI12 channel (S)
MCCD = 2x counter channel (C), 1x tamper/digital channel (D)
NCCS5 = 2x counter channel (C), 1x SDI12 channel with 5V continuous power (S5)
Read more here: Supported Meter/Sensor Channel Types
SIM segment
Standard Wildeye sim options are
Telstra for Australia
Verizon for USA
Vodafone Global for the rest of the world.
More info: Cellular connectivity & SIM cards
