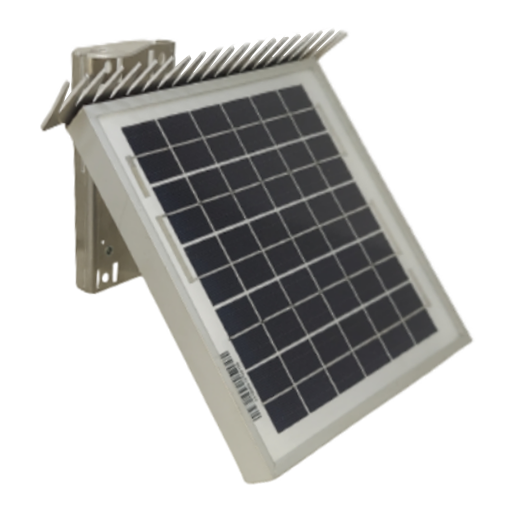

Wildeye Solar Bracket - NP & JC Series
The Wildeye NP (USA) & JC (Aus/NZ) Series Solar Bracket is a rugged outdoor solar panel combined with a mounting bracket designed to mount the Wildeye and power it continuously for typical remote sensing applications.
The panel and bracket feature aluminum frames for long-lasting rust-proof operation.
The solar bracket comes with a polarized M8 connector to plug directly into your Wildeye power cable: the Wildeye comes with solar recharging capability directly built in.
The NP Series Solar Bracket is typically used to power Wildeyes used in the following applications:
Soil Moisture & Irrigation Monitoring
Reservoir and Pond Monitoring
Well & Ground water Monitoring
Surface water monitoring
Flow Monitoring (not including the meter)
Tank Level Monitoring
Solar Bracket Features
Rugged aluminum construction for resistance to corrosion in harsh conditions
45 Degree fixed tilt angle with rugged bracket for maximum lifetime in high wind-load or vibrating environments
Built-in mount for the Wildeye External Leaded Antenna
Rugged bird spikes to prevent bird roosting and associated panel obstruction
Multi-use backing plate with both screw hole mounting and cable tie mounting options
Ordering Options
Part Code | Power |
ACC-SOLBRACKET-NP-5W.2 (Sold in USA) | 5W |
ACC-SOLBRACKET-JC-5W (Sold in Aus & NZ) | 5W |
Specifications
Parameter | Specification (NP) | Specification (JC) |
Cell Type | Monocrystalline | Monocrystalline |
Maximum power (Pmax) | 5W | 5W |
Voltage at Pmax (Vmp) | 17.37V | 17.4V |
Current at Pmax (Imp) | 0.35A | 0.29A |
Open-circuit voltage (Voc) | 20.04V | 21.8V |
Short-circuit current (Isc) | 0.37A | 0.31A |
Operating temperature | -40°C to 85°C | |

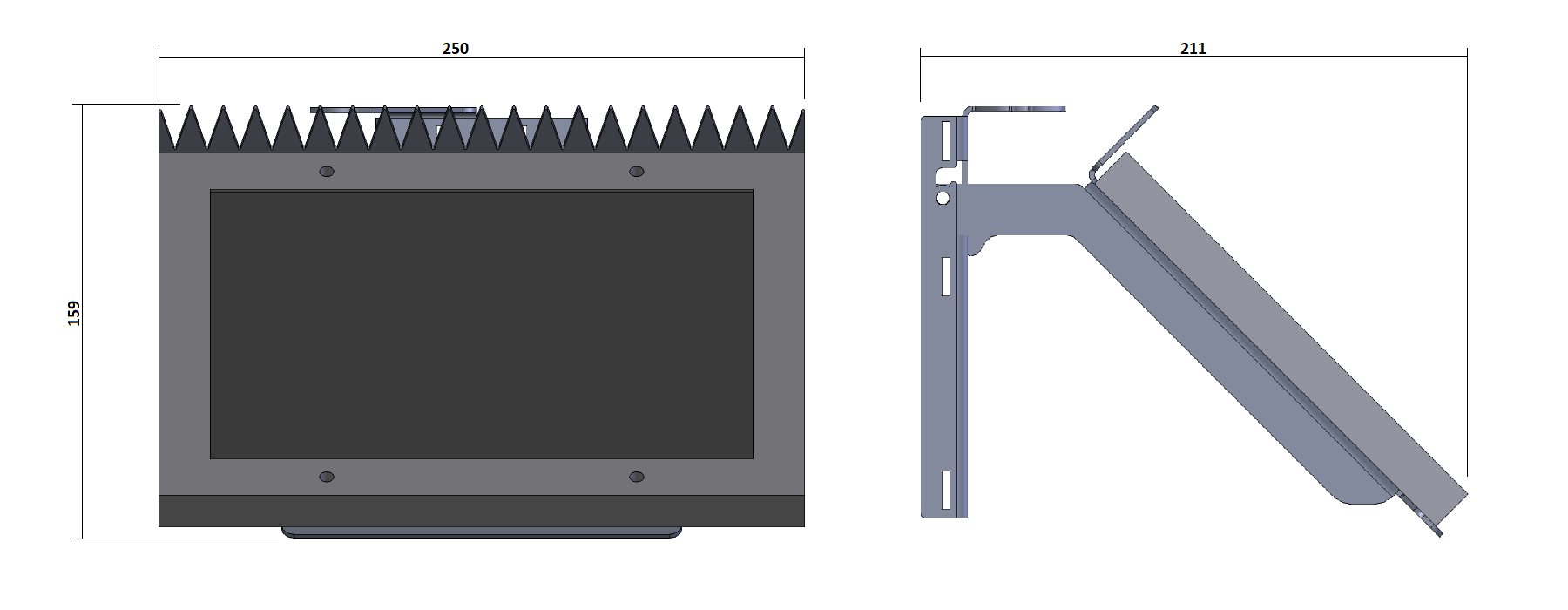

Outer Dimensions: | ||

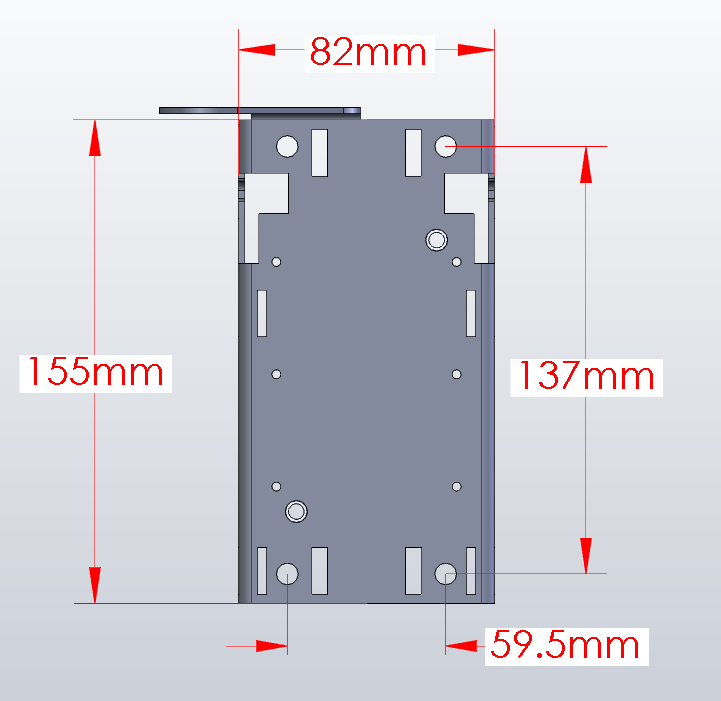

Backing Plate Dimensions: | ||
