Wildeye High-gain Leaded Antenna

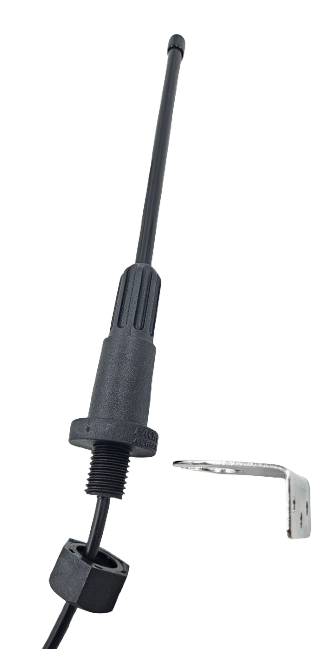

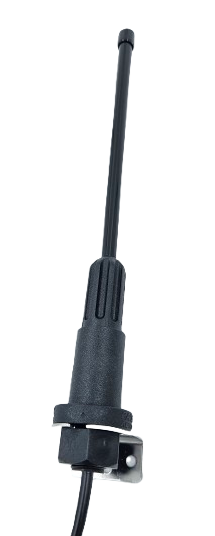

The Wildeye High-gain Leaded Antenna is a rugged outdoor antenna designed to attach directly to the Wildeye antenna port. The antenna comes with a built-in threaded nylon nut assembly for mounting on a 2.5cm (1in) mounting hole, and lead from 30cm (1ft) to 5m (16ft) allowing elevated antenna mounting. The antenna is supplied in 700Mhz and 850Mhz options catering for most major cellular providers.
Features:
Rugged outdoor weather-proof construction
Built-in threaded nylon nut assembly for mounting
Lead-lengths of 30cm (1ft), 1.5m (5ft) and 5m (16ft)
Male SMA antenna plug with weather-proof boot cover
Ordering Options
Part Code | Frequency | Lead Length |
ACC-ANT-EXTER-700-3DB-0M3 | 700 Mhz | 30cm (1ft) |
ACC-ANT-EXTER-700-3DB-1M5 | 700 Mhz | 1.5m (5ft) |
ACC-ANT-EXTER-700-3DB-5M | 700 Mhz | 5m (16ft) |
ACC-ANT-EXTER-850-3DB-0M3 | 850 Mhz | 30cm (1ft) |
ACC-ANT-EXTER-850-3DB-1M5 | 850 Mhz | 1.5m (5ft) |
ACC-ANT-EXTER-850-3DB-5M | 850 Mhz | 5m (16ft) |
Specifications
Parameter | Specification |
Antenna | Flexi 8mm nylon |
Mounting Hole Size | 2.5cm (1in) |
Ferrule | Glass filled nylon |
Antenna Type | Half-wave |
Gain | 3dB |
Typical VSWR at 800 MHz | 1.2:1 |
DC Meter Reading | Open Circuit |
Height | 180mm (0.6ft) |
