External Power Supply Options (incl Solar Panels)
Wildeye models with the -R Power Option (Rechargeable), can accept 8-24V DC power sources, including being powered directly from a “12V” solar panel.

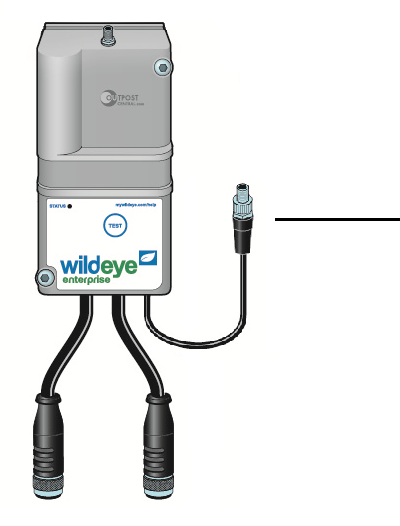

The power source is connected to the Wildeye M8 Power Plug, pinout details shown below.

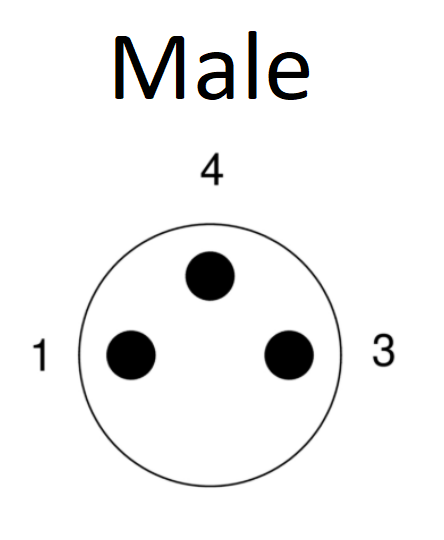

M8 Power Plug | Pin [Colour] | Function |
1 [brown] | 8-24V DC | |
3 [blue] | n/c | |
4 [black] | Ground |
The -R "Rechargeable" Wildeye has an internal rechargeable battery that functions as a backup in cases where the external power source cuts out due to a fault, or when there is no sunlight in the case of a solar panel.
The internal rechargeable battery is designed to maintain Wildeye operation without power for weeks in typical applications. In some more power intensive applications such as control, an inline battery pack is recommended to supplement the internal backup battery.
Charge LED
When a valid power source is attached, the Charge LED will blink green every 5s. It’s important to note that this LED does not indicate “charging” or “charge status”. It is just informing you that a valid charge source is attached.
Standard Power Supply Options for -R Rechargeable Model Wildeye
Product Code | Image | Description | Application |

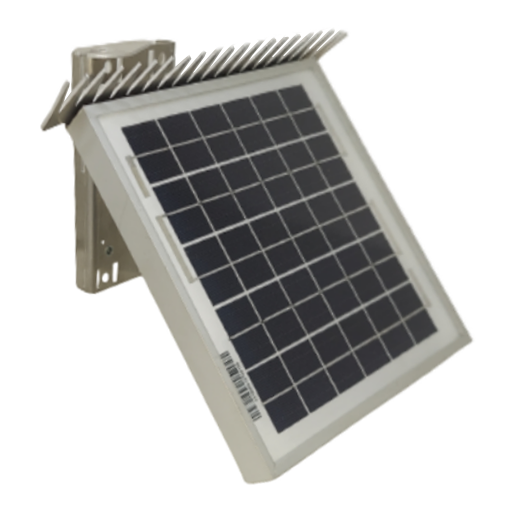

ACC-SOLBRACKET-NP-5W.2 (USA) ACC-SOLBRACKET-JC-5W (Aus & NZ) | 5W solar panel and Wildeye mounting bracket on fixed 45° aluminium frame. | Standard solar panel option for outdoor rechargeable wildeye applications. | |

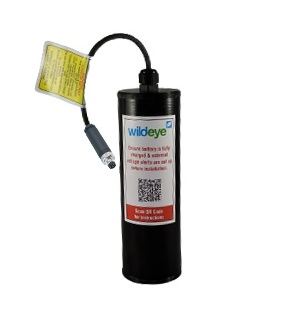

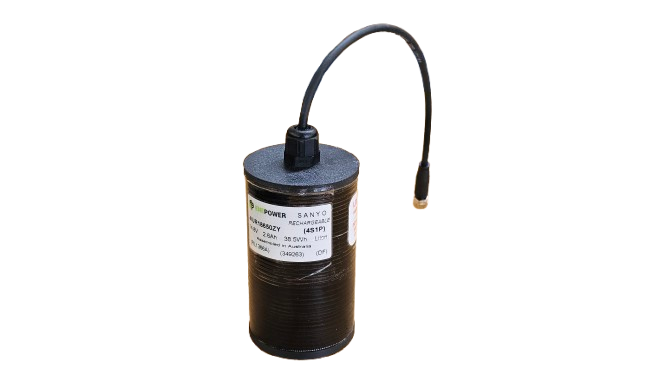

Wildeye Standard Rechargeable Battery Pack. 14.8V 77Wh rugged rechargeable waterproof battery pack. | An alternative to solar or mains when those aren't practical. Multiple year battery-life is achievable under most circumstances | ||
ACC-PSU-OUTLET-15V-US

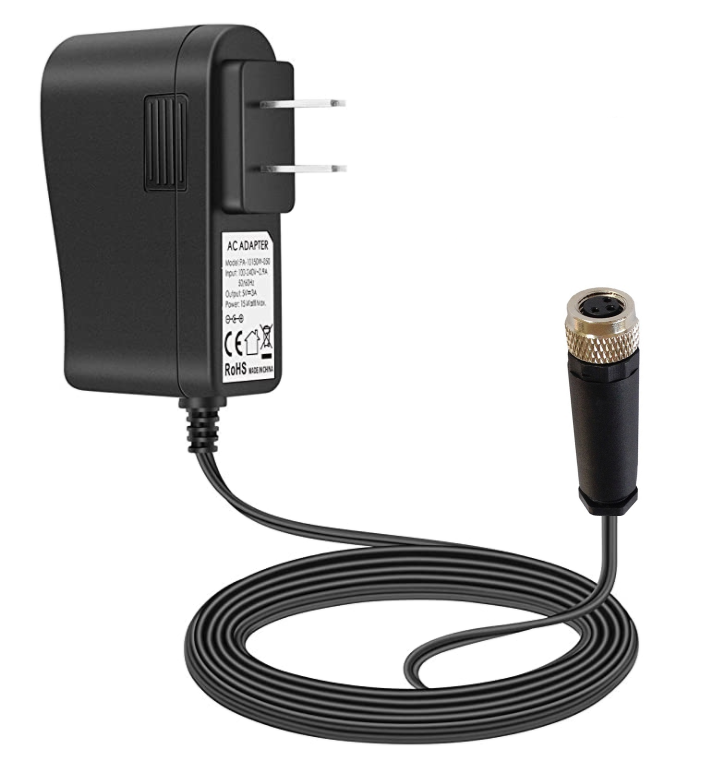

ACC-PSU-OUTLET-15V-ANZ | Mains power adaptor for charging the -R Rechargeable Wildeye. Outputs 15V DC. Cable terminated with Wildeye M8 power plug. | Use this wall power pack to power Wildeye's in control rooms or control panels. Not a waterproof option. | |

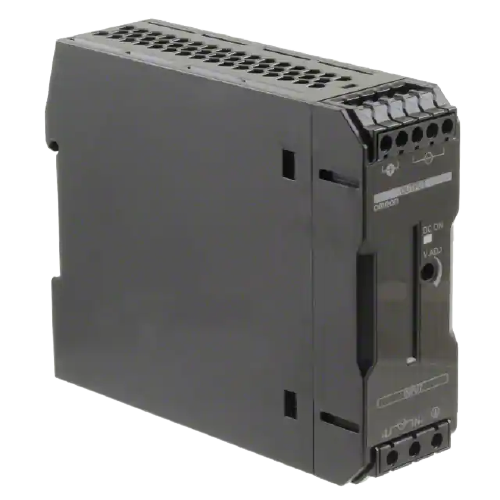

ACC-PSU-DIN-120VAC-24V-2.5A | Power Supply Unit, DIN rail mountable for cabinet, 120VAC - 240VAC input, 24V DC output, 2.5A max for powering rechargeable wildeyes and accessories. | Must be used in conjunction with the ACC-CAB-M8-F-3 shown below. | |

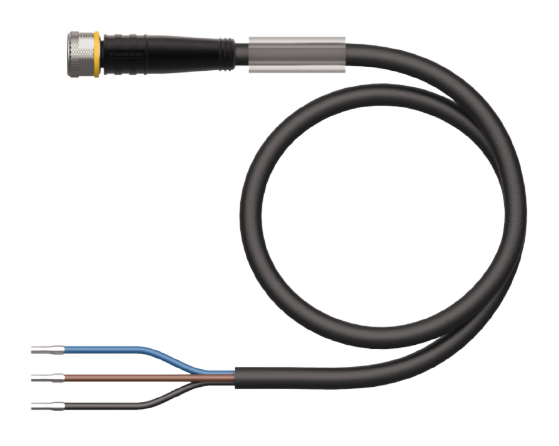

ACC-CAB-M8-F-3 | Cable to power Wildeye -R Rechargeable external 8-30V DC source. | Choose this option if there is an existing 8-30V DC power source with a terminal style connection. The bare wire end is not waterproof unless sealed correctly. | |

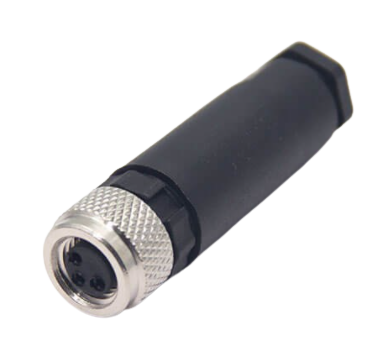

ACC-CON-M8-3POS-F | M8 connector, 3-position, Female, with screw terminals. Mates with charging input of Wildeye -R Rechargeable model. | Is IP67 waterproof if sealed correctly. |
