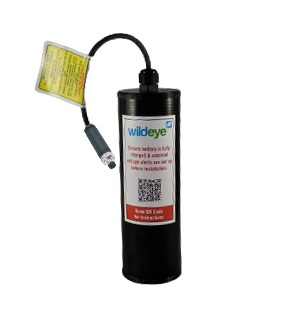

Wildeye Standard Rechargeable Battery Pack (ACC-BP-LIION-15V77WH)
The Wildeye Standard Rechargeable Battery Pack is a rugged waterproof rechargeable power pack designed to attach directly to the Wildeye.
It provides a convenient alternative to solar panels where their use is not viable due to aesthetics or practical concerns such as in subsurface installations or where machinery damage or vandalism is a concern.
The pack provides several months or up to 1 year service in common applications, and when discharged can be easily recharged in approximately 3 hours with the approved charger accessory.
The Wildeye telemetry unit can remain online during external pack recharge and swap due to its internal backup battery.
Features:
Rugged outdoor weather-proof construction (IP68)
Male M8 power polarized plug for direct attachment to Wildeye
WARNING: this product is only designed to be connected to the M8 charging cable of a Wildeye data logger for discharging, and the optional charging accessory for recharging. Any other use or attempt to recharge the batteries may result in damage to the battery and or explosion.
Wildeye Standard Rechargeable Pack Options
Part Code | Capacity |
ACC-BP-LIION-15V77WH | 77Wh / 5.2Ah |
ACC-BP-LIION15V77WH-CHGR (Charger for above battery pack) |
Wildeye Standard Rechargeable Pack Specifications
Parameter | Specification |
Waterproof | IP68 (M8 must be attached correctly) |
Capacity | 77Wh / 5.2Ah |
Voltage | 15VDC Nominal |
Connector | M8 Female |
Dimensions (Length x Dia) | 170mm x 50mm (200mm cable length) |
