ACC-EXP-2MA - Analogue Expander (2x 4-20mA)

Part Number

P51038-01

Product Description

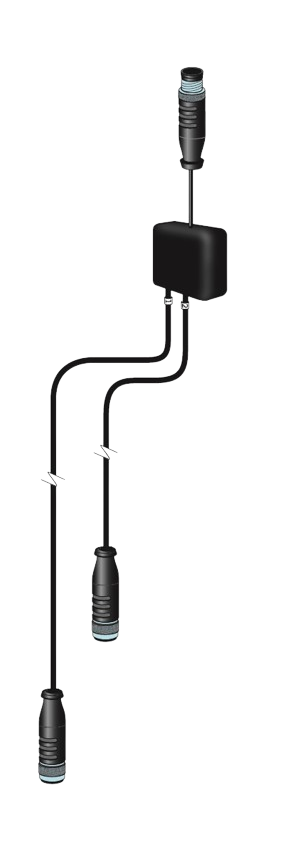

Wildeye SDI12 Expander - 2x 4-20mA Analogue inputs via 2x M12 connectors on 300mm cables.

Pinout

Each M12 MA plug:

• Pin 1 (Brown) - 12V SPO

• Pin 2 (White) - N/C

• Pin 3 (Blue) - 4-20mA

• Pin 4 (Black) - GND

• Pin 5 (Grey) - N/C

Tech specs

Power draw = 1.3mA (excluding sensor draw)

Cable & Connector

Cable type: PUR

Cable length: 0.5m

Connector type: M12 5-pin

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

• NACS

Scan to add sensor in app
