ACC-EXP-NV02R

Part Number

P51225-01

Product Description

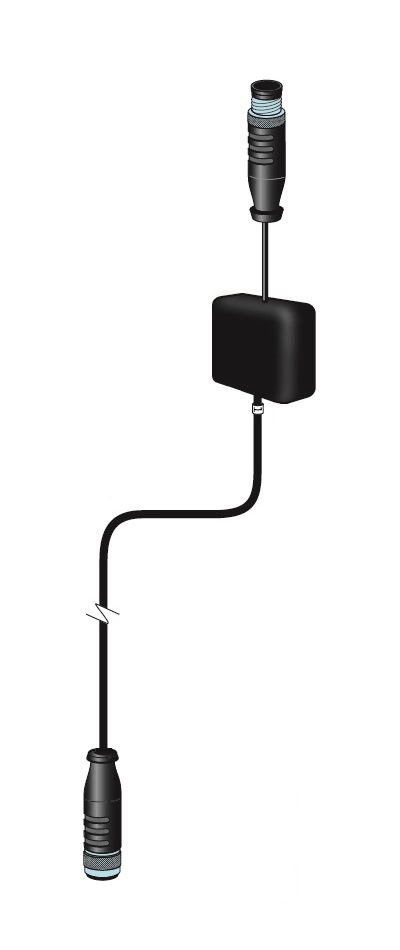

Wildeye expander module with 1 input cable:
5-pin, M12 type connector (N), with 2 voltage analogue inputs (V02) and 1x Resistance input (R).
Made for interfacing ACC-SEN-SM2T5M sensors to WILD-M loggers.


Pinout

  • Pin 1 (Brown) - 12V SPO

  • Pin 2 (White) - 0-5V #2

  • Pin 3 (Blue) - 0-5V #1

  • Pin 4 (Black) - GND

  • Pin 5 (Grey) - Resistance

Compatible Loggers

Wildeye data-loggers and expanders with the following connector types are compatible with this sensor:

  • NACS

Scan to add sensor in app
